Instruction Sheet for Assembly and Installation of Pendant F7000
INTERMEDIATE POWER DROP ON 2-LIGHT FIXTURES
Step 1. Fixture Modification
Once you have determined which fixture will be taking the in-line power drop, you need to turn 1/4 turn fasteners
and lift power-tray away from fixture to expose Thru-power harness. Remove knockout on power-tray closest to

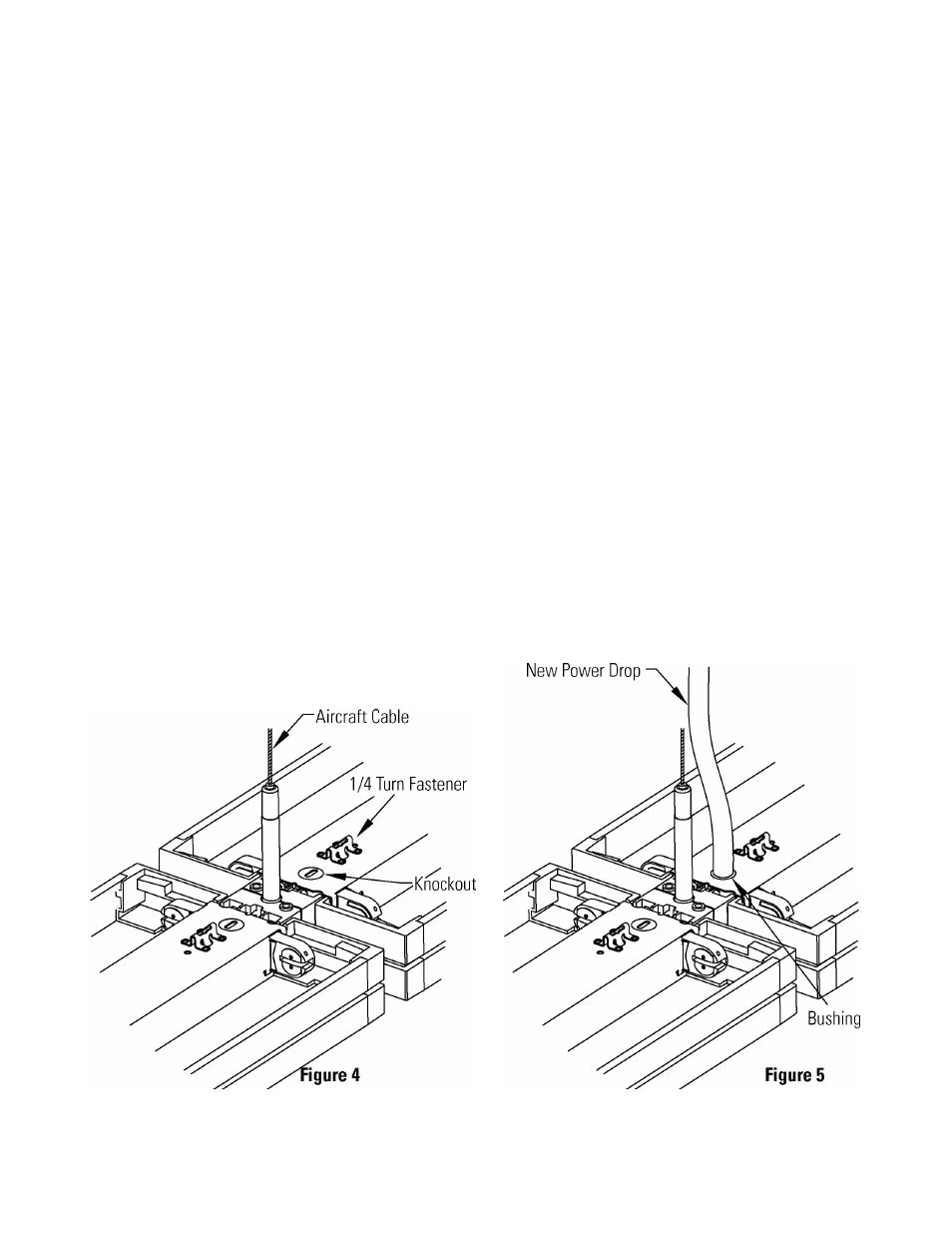

where power drop is to take place and install the bushing provided with cord kit. (Fig. 4)
Step 2. Power Splicing (where this is an additional drop)
Cut thru-power harness wires approximately 3" from end of fixture where the splice is taking place and cap wires
coming from pervious fixture. Route new power cord through the hole in the power tray where the knockout was re
moved and install the strain-relief at end of the cord. Splice cord to thru-power harness making sure to match wire
colors. Relocate power-tray and secure with 1/4 turn fasteners making sure not to pinch any wires. (Fig. 5)
Step 3. Power Splicing (where this is the only power drop)
Route the new power cord through the hole on the power tray where the knockout was removed and install the
strain-relief at end of cord. Tap cord to thru-power harness making sure to match wire colors. Relocate power-tray
and secure with 1/4 turn fasteners making sure not to pinch any wires. (Fig. 5)
