Second aileron (AILE-2) (ACRO

GLID 1A+1FGLID 2A+1F only): changes the default choice for dual aileron servos from

channels 6 (FLAPERON) to channels 5 and 6 or channels 3 and 6 (GLID 1A+1F only), or 7 (AIL-DIF ) to channels 5 and 7.

NOTE: Changing AILE-2 only tells the system which servos to utilize if FLAPERON or AIL-DIF is activated. You still must
activate that function and complete its setup. For details on twin aileron servos, including using AILE-2, see p. 55.

(GLID 1A+1F only): If using channel 3 for second aileron, the receiver's Battery Fail-Safe function does not work.

Adjustable travel limit (ATL): makes the channel 3 TRIM LEVER (THROTTLE TRIM) effective only at low throttle,
disabling the trim at high throttle. This prevents pushrod jamming due to idling trim changes. This function defaults to ON.
If you are not using channel 3 for throttle, you may want trim operation the same as on all other channels. To do so, set ATL
to OFF. If you need the ATL to be effective at the top of the stick instead of the bottom, reverse the THR-REV setting. Note
that this affects all models in the radio, not just the model you are currently editing. See servo REVERSE, p. 38.

GOAL of EXAMPLE:

STEPS:

INPUTS:

Change ATL from ON to OFF for battling
robots, tanks, airbrakes and other
channel 3 uses.

O p e n B A S I C m e n u , t h e n o p e n
PARAMETER

submenu.

for 1 second.

(If ADVANCE,

again.)

to 2nd page of menu.

to PARAMETER.

Go to ATL and Change. (Ex: to OFF)

to ATL.

to OFF.

Close.

Where next?

Set up ELEVON

IRUWDQNVW\OHFRQWUROWKURWWOHVWHHULQJRQRQH67,&.VHHS

Set up IDLE-DOWN and THR-CUT to adjust channel 3 servo at low-stick: see p. 40.
5HDVVLJQDX[LOLDU\FKDQQHOVH[IURPGLDOWRVZLWFKVOLGHUVHHS
Utilize servo REVERSE: see p. 38.
Adjust servo travel with END POINT: see p. 39.
6HWXSGXDOWULSOHUDWHVDQGH[SRQHQWLDOD/R,EXP): see p. 42.

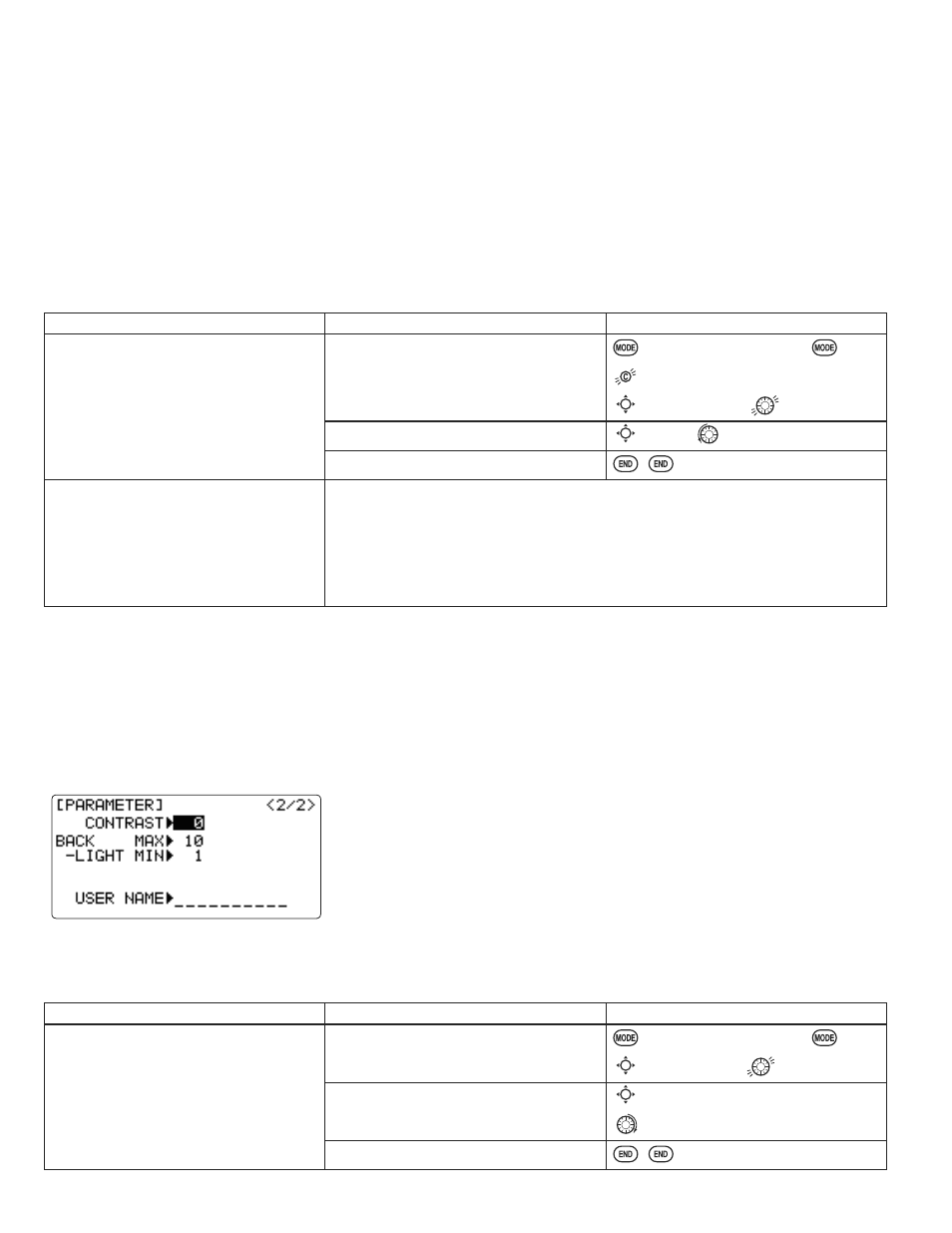

LCD screen adjustment (CONTRAST

BACK-LIGHT):

Adjustability:
The following LCD screen adustments are possible.
• Contrast adjustment
• Backlighting brightness adjustment

CONTRAST

: adjust the LCD contrast from +10(dark) to -10(bright). Also, it is

possible to adjust the contrast from the home screen. See Adjusting Display
Contrast, p.16.

BACK-LIGHT MAX

DGMXVWVWKHEDFNOLJKWLQJEULJKWQHVVIRUWKHVSHFL¿FSHULRGDSSUR[LPDWHO\VHFRQGVDIWHURSHUDWLQJWKH

edit keys. Setting range: OFF(0) to 20(bright).
BACK-LIGHT MIN

DGMXVWVWKHEDFNOLJKWLQJEULJKWQHVVDIWHUWKHDERYHVSHFL¿FSHULRG6HWWLQJUDQJH2))WRMAX setting.

GOAL of EXAMPLE:

STEPS:

INPUTS:

Change CONTRAST from 0 to +2.

O p e n B A S I C m e n u , t h e n o p e n
PARAMETER

submenu.

for 1 second.

(If ADVANCE,

again.)

to PARAMETER.

Go to CONTRAST and change setting.
(Ex: +2)

to CONTRAST.

to +2.

Close.

Throttle Reverse (THR-REV) (GLID only): is a special function that reverses the throttle control, including moving the trim
functionality to the stick's upper half.
The separate THR-REV settings for each model can be set. Default setting depends on the THR-REV setting in the TX SETTING
menu, see p.17.
