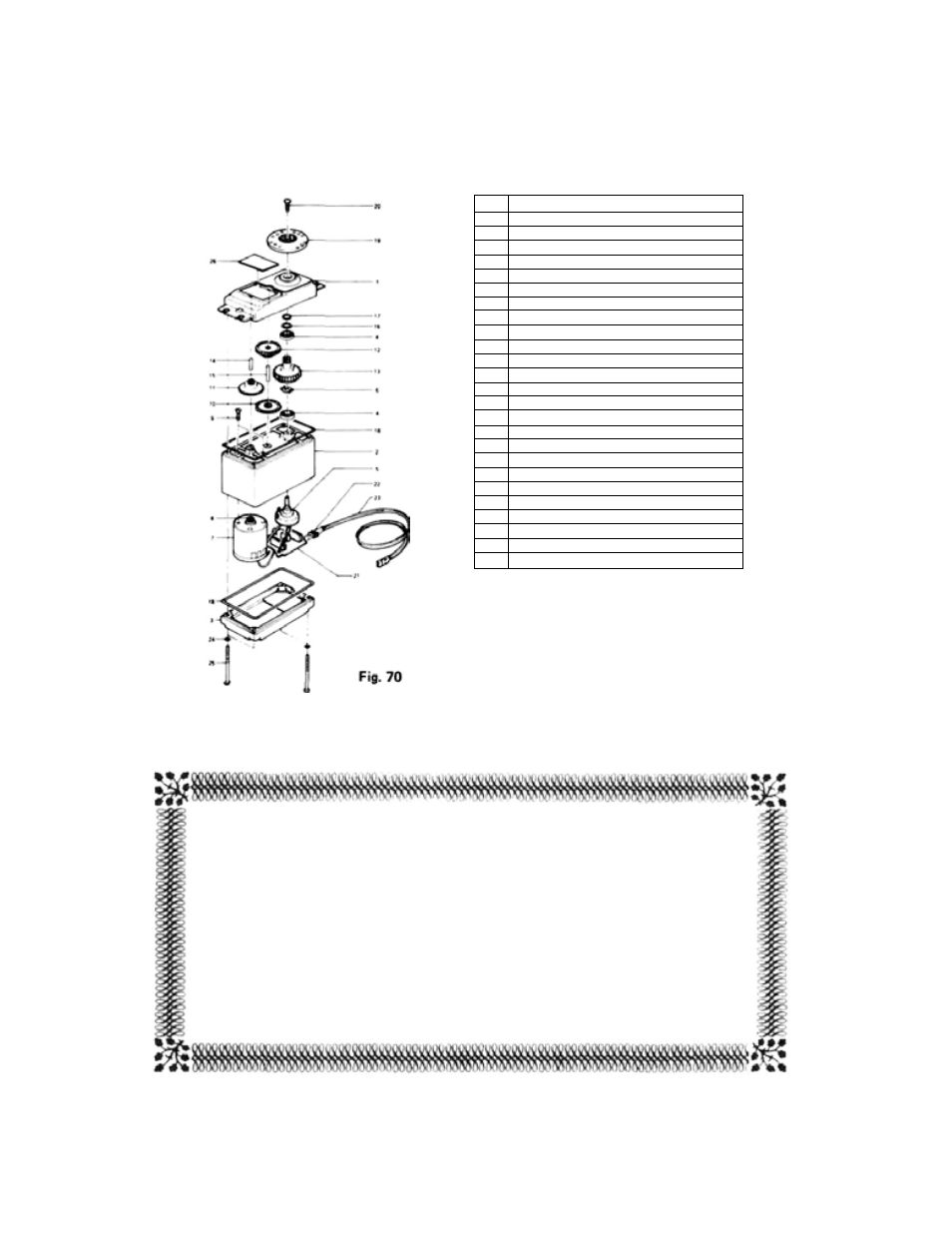

FP-S130 EXPLODED VIEWS
No.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
Part Name Part No.
Upper case FCS 30
Middle case FCS 30
Bottom case FCS 30
B a l l b e a r i n g S04130
Potentiometer I39995
V R drive plate S02753
Motor
S91243
Motor pinion S02461
1st gear F G S 3 0
2nd gear F G S 3 0
3rd gear FGS30
Final gear FGS-30
2nd shaft S02481
Intermediate shaft S02480
Spacer washer 0.3T S02486
Seal ring S90415
0-nng S90426
Servo horn D FSH-6W
Horn mouting screw FSH-41
Printed wiring board S130 AS1220
Lead w i r e packing S90045
S130 3PB-WRB-300 FPC-8M
Screw 0-nng S90410
Case mounting screw J50085
S130 Nameplate S60101
Your NEW FUTABA Digital Proportional R/C system is guaranteed against defacts in
workmanship and material for 180 days from the date of purchase when the attached
registration card is returned to us within ten days of purchase.
This Guarantee is null and void if the R/C system has been improperly handled,
damaged in a crash, or tampered with and does not cover the replacement of plastic
housings or electronic components damaged due to the use of improper voltages.
When service is required, please take your 'uipment to your local authorized service
station or ship it directly to us. All postage, shipping, and insurance changes must be
paid by the user.
GUARANTEE
