7

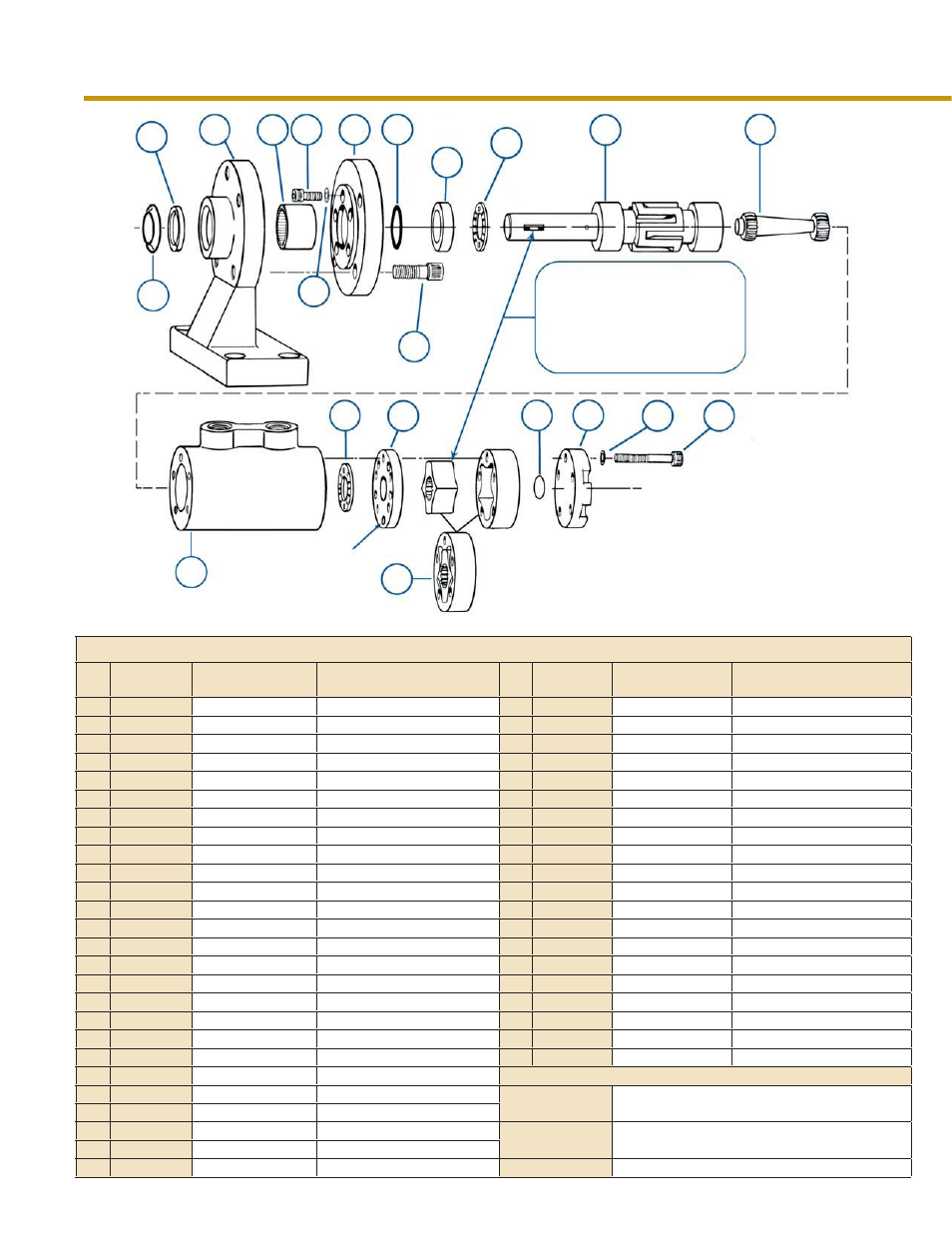

HYDRAULIC MOTOR COMPONENT PARTS

Item

No.

PART

NUMBER

PART DESCRIPTION

NOTE

It
e
m

No.

PART

NUMBER

PART DESCRIPTION

NOTE

1

BSS-1

Blood Slinger Shield

Optional Seal - order separately

13

13CA-1/4

Spline Drive

A25 motors only

2

48CF

Dirt Seal

All motors

13

13C

Spline Drive

A37, A50, A62, A100, A125 only

3

60CFM

Foot Mount

FM style motors only

14

11CF

Motor Body

All motors except Aluminum

4

52CFM

Shaft Bearing

FM style motors only

14

11CF-ALUM Motor Body

Aluminum

5

62B

Screw (10-32x1/2)

All motors - 5 required

15

27CA-.125

Gerotor Spacer

A62 motors only

6

50C

Copper Washer Seal All motors - 10 required

15

27CD-.500

Gerotor Spacer

A100 motors only

7

10CF

Round Flange

Standard Flange

15

27CB-.745

Gerotor Spacer

A125 motors only

7

10CF-2-BOLT

Oval Flange

Ordering suffix "-2-BOLT"

16

14CF

Gerotor cover

All motors

7

10CF-4-BOLT

Square Flange

Ordering suffix x "-4-BOLT"

17

39CF

Screw (10-32x1-1/4) A25, A37, A50 & A62 - 5 req.

7

10CF-T

Turned Down Flange Ordering suffix x "-T"

17

39B-A

Screw (10-32x1-3/4) A100 motors only - 5 required

7

10CF-ALUM

Round Flange

Aluminum

17

39CF-A

Screw (10-32x2)

A125 motors only - 5 required

7

10CF-T-ALUM

Turned Down Flange Aluminum

19

12C-.406

Separator Plate

A25 motors only

8

46CA

Screw (5/16-18x3/4)

FM style motors only

19

12C-.281

Separator Plate

A37 motors ony

9

31C

Shaft Seal - Te

? on

Standard Seal

19

12C-.156

Separator Plate

A

50, A62, A100, A125 motors only

9

31C-VITON

Shaft Seal - Viton

Optional Seal

20

18C-1/4

Gerotor Assembly

A25 motors only

10

64CF

Thrust Race

All motors

20

18C-3/8

Gerotor Assembly

A37 motors only

11

17CF

Thrust Bearing

All motors - 2 required

20

18C-1/2

Gerotor Assembly

A50 motors only

12

15CF

Motor Shaft - Short

F style motors only

20

18C-5/8

Gerotor Assembly

A62 motors only

12

15CFM

Motor Shaft - Long

FM & FMO style motors only

20

18C-1

Gerotor Assembly

A100 motors only

12

15CF-1

Motor Shaft - 1 Flat

F style motors onlly

20

18C-1-1/4

Gerotor Assembly

A125 motors only

12

15CFM-1

Motor Shaft - 1 Flat

FM & FMO style motors only

SEAL KITS

12

15CF-2

Motor Shaft - 2 Flats

F style motors onlly

ASK-1

Seal Kit includes (1) 31C, (1) 48CF, (10) 50C & (2)
17CF

12

15CFM-2

Motor Shaft - 2 Flats

FM & FMO style motors only

12

15CFT

Motor Shaft - Tapped F style motors only

VITON-ASK-1

Seal Kit includes (1) 31C-VITON, (1) 48CF, (10) 50C
& (2) 17CF

12

15CFMT

Motor Shaft - Tapped FM & FMO style motors only

12

15CFMK

Motor Shaft with Key FM&FMO only-3/16 x 1-1/4 Key

Keyway & Lobe (with punch mark)
must be in line, only one of the four
lobes will give precise alignment.
Care and caution must be taken at
assembly.

TIMING INSTRUCTIONS

2

3

1

4

5

79

6

8

10

11

12

13

14

11

Small tapered holes
toward gerotor

15

16

17

6

19

20
