Installing the HSIM-FE6

HSIM-FE6 User’s Guide

2-7

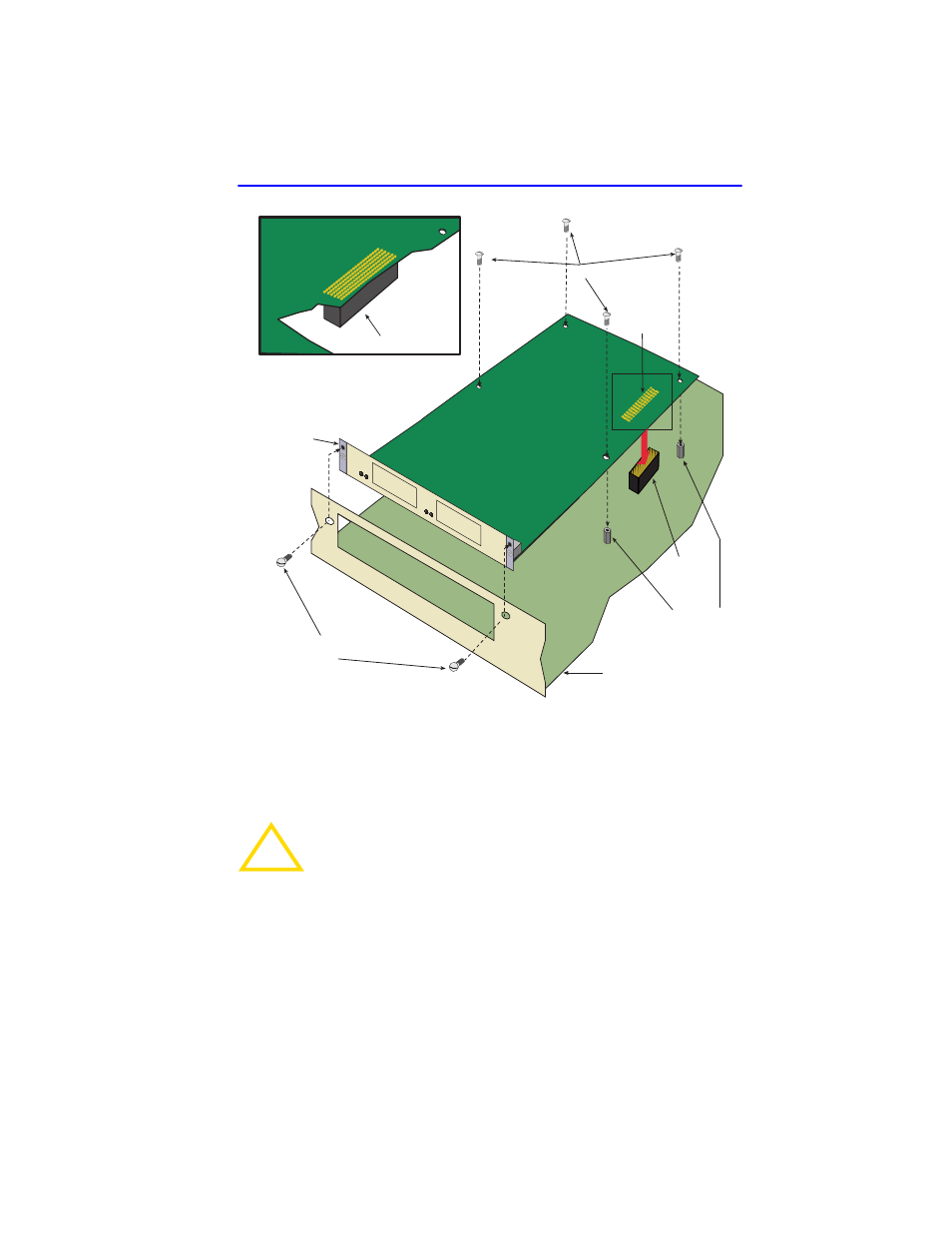

Figure 2-4

Installing the HSIM-FE6

Align the connector on the HSIM-FE6 with the connector on the
module.

Press down firmly on the connector area of the HSIM-FE6 until the
connector slides all the way onto the pins. Ensure that the standoffs on
the interface module align with the standoff screw holes on the
HSIM-FE6.

CAUTION

Ensure that the HSIM-FE6 connector aligns with the module
connector pins to prevent bending the pins. This can damage
both the HSIM-FE6 and the module.

Faceplate Mounting Screws

mounting

Standoffs

HSIM
Connector

HSIM-FE6

Standoff Screws

Connector
(top view)

Cutaway view of connector

Connector

HSIM-FE6

FEPIM 1

FEPIM 2

Host Platform
