A. Compare fins to patterns to find front (leading) and
gluing (root) edges.
B. Position and glue fins on alignment lines as shown,
one at a time. Bottom fins should be positioned 18
mm (3/4”) from end of body tube. Let each dry
several minutes before applying the next one.
C. Adjust fins to project straight out from tube.
D. Do not set rocket on fins while glue is wet. FINS
MUST BE ATTACHED CORRECTLY FOR STABLE
FLIGHT!
1.
A. Remove centering rings from die-cut sheet. Slide
over Engine Mount Tube as shown.
B. Apply glue to both sides of both ring/tube joints.
C. Mark yellow spacer tube 6 mm (1/4”) from one end.
Using a piece of scrap balsa, smear glue 51 mm
(2”) inside engine mount tube.
D. Insert green engine block into rear of tube. Insert
spacer tube and push engine block into tube until
1/4” (6 mm) mark is even with end of tube. NOTE:
The yellow spacer tube is a tool and must be
removed as soon as you match the mark with the
end of the engine mount tube. Don’t accidentally
2.
3.
A. Locate the plastic tail cone.
B. Cut the excess plastic parts off as indicated in
diagram and discard.
C. Sand front and rear of tail cone flat and remove any
excess plastic with modeling knife.
A. Fine sand balsa die-cut sheet. Carefully remove fins
by freeing edges with sharp knife.
B. Stack fins together. Sand all edges smooth.
4.
A. Using a piece of scrap balsa, smear glue inside body
tube 2” (51 mm) from one end.
B. Slide engine mount into body tube until both rings
are inside tube. Push tail cone (no glue yet) over
Engine Tube until snug against Body Tube.
C. Push Engine Mout Tube the rest of the way in (until
it is flush with end of Tail Cone).
D. Remove tail cone. Apply plastic cement to tail cone
as shown and push tail cone back into place.
5.
A. Cut out Tube Marking Guide from front of instructions.
Wrap guide around the Body Tube and tape.
B. Mark tube at arrows. Label Launch Lug Line 'LL'.
Remove guide.
C. Using door frame, extend all lines the full length of
tube.
6.

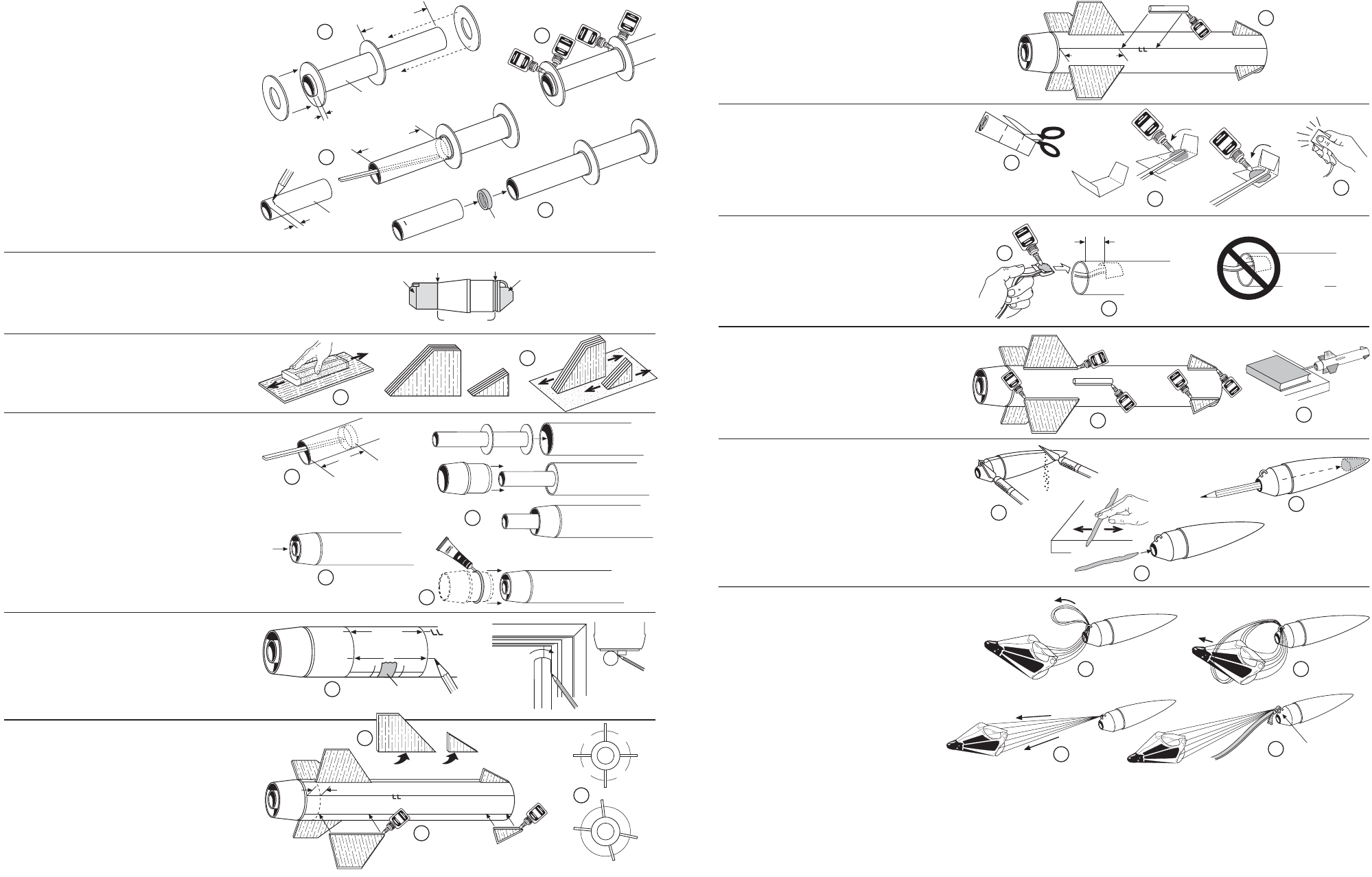

ROCKET ASSEMBLY
A. Form loop in shroud lines
and push shroud lines
through eyelet.
B. Pass 'shute through loop.
C. Pull 'chute tight.
D.Tie free end of shock cord
to eyelet with double knot.
7.
A. Glue launch lug straight on launch lug line with its
rear edge 73 mm (2-7/8”) from rear of tube.
8.
A. Cut out shock cord mount located on page one of
the instructions.
B. Crease on dotted lines by folding. Spread glue on
section 2 and lay end of shock cord into glue. Fold
over section 1 and apply glue to section 3. Fold
forward again.
C. Clamp unit together with fingers until glue sets.
9.
A. Apply glue to shock cord mount.
B. Press mount into body tube about 25 mm (1”) in
from end of tube to allow for the nose cone.
C. Hold until glue sets.
10.
A. Apply a glue reinforcement to each fin/body tube
joint and each side of launch lug. Smooth with finger.
B. Support rocket as shown until glue dries.
11.
A. Trim excess plastic from around sides of nose cone
with sharp knife. Remove any excess plastic from
inside molded eyelet. Enlarge hole in rear of nose
cone.
B. Roll clay into a “snake” about 3 mm (1/8”) diameter.
Poke clay through the hole in nose cone. Use pencil
or dowel to push clay into end of nose cone. Pack
clay tightly. Use all of the clay.
C. Wipe nose cone with damp cloth to remove oil and
dirt.
12.
FINISHING YOUR ROCKET
Apply sanding sealer to fins. When sealer is dry, lightly sand parts.
Repeat sanding and sealing until balsa grain lines are filled. Optional:
Spray a light coat of automotive primer over entire rocket. Lightly sand
(600 grit) when primer is dry. This allows the paint to adhere better and
gives a smoother finish.
Spray paint the entire rocket gloss white. Follow instructions on spray
can for best results. Allow paint to dry overnight before applying decals.
Refer to photo on front of instructions and photo on panel for decal
placement. To apply decals, cut out each decal, dip in lukewarm water
for 20 seconds, and hold until it uncurls. Slip decal off backing sheets
and onto model. Blot away excess water. For a more realistic appearance
and to protect decals, spray a flat clear coat on the rocket.
A.
C.
B.
D.
GLUE
GLUE
G
LUE
G
LUE FRONT REAR
1/8"
(3 m
m)
2" (51 m
m)
GREEN
ENGINE
BLOCK
REMOVE SPACER
TUBE IMMEDIATELY
AFTER INSERTING
ENGINE BLOCK!
YELLOW
SPACER
TUBE
FRONT
REAR
1/4"
(6 m
m)
2" (51 m
m)
ENGINE
MOUNT
TUBE
TAIL CONE
CUT CUT
DISCARD DISCARD
A.
B.
BOTTOM FINS TOP FINS
A.
B.
2"
(51 m
m)
C.
D.
A.
FINS
TUBE MARKING
GUIDE
TAPE
LAUNCH LUG
DOOR
FRAME
TOP
VIEW
GLUE
G LUE
3/4" (18 mm)
GLUING EDGE
90˚
90˚
90˚
90˚
YES
NO
A.
B.
C.
GLU
E
2 7/8" (75 mm)
A.
A.
B.
C.
G L U E
GLUE
GL
UE
GLUE
GL
UE
YES
A.
B.
A.
B.
A. B.
C.
D. DOUBLE
KNOT
A.
