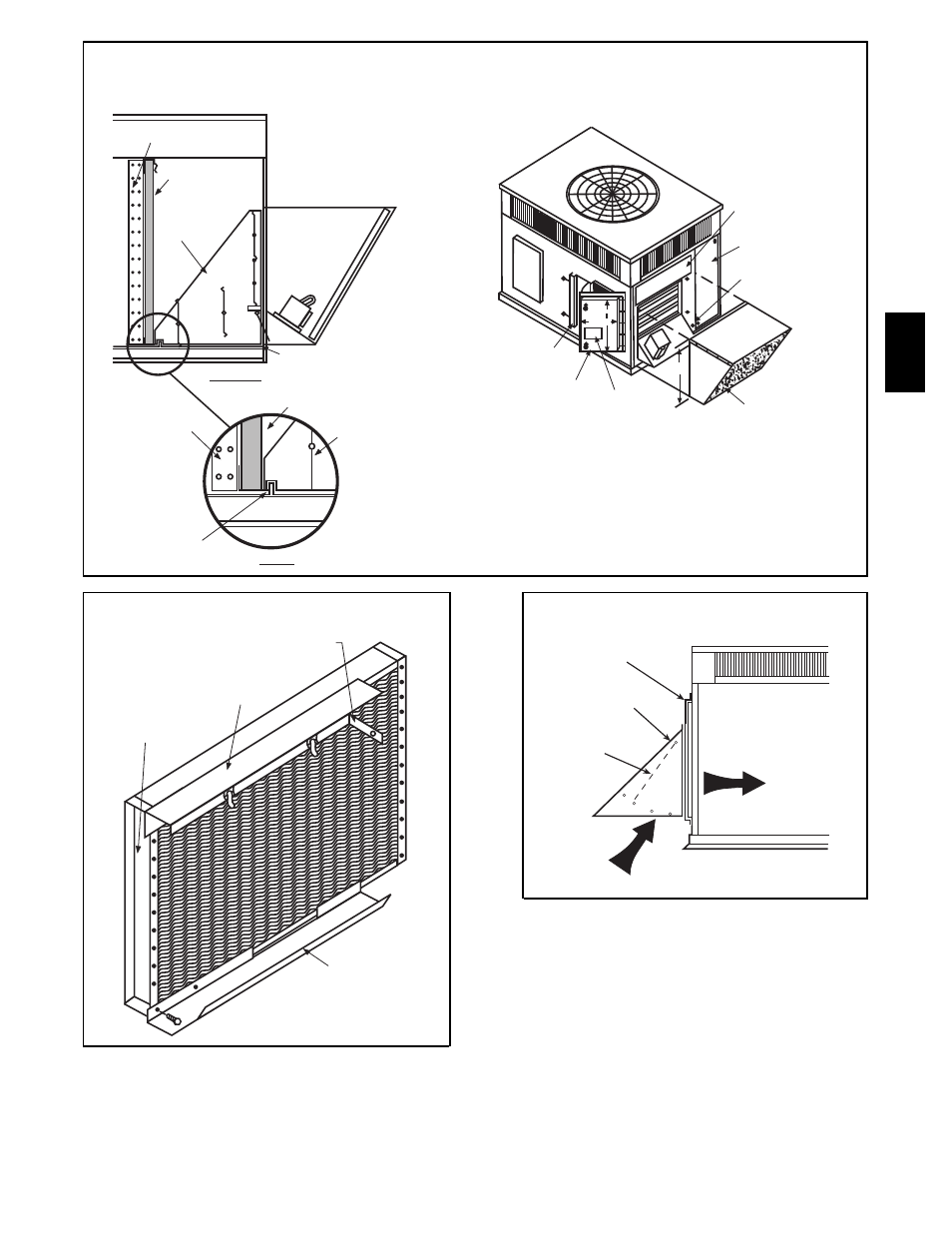

ECONOMIZER
COIL
FILTER
SIDE VIEW
CAULK BOTTOM CORNER
OF ECONOMIZER
ON EACH SIDE
BASE
COIL
FLANGE
ON BASE
DETAIL
ECONOMIZER
FI LTER
FILTER ACCESS DOOR
(HORIZONTAL
APPLICATION ONLY.)
DO NOT REMOVE
FROM DOWNFLOW
DISCHARGE.
REPLACEMENT
PANEL
HOLE FOR
ECONOMIZER
WIRING HARDNESS
DOOR
LATCH ANGLE
HINGED FILTER
ACCESS DOOR
INSTALL
FILTER ACCESS
DOOR STICKER
ALUMINUM
FILTER
RAINHOOD
11 13/32”
17 13/32
16 1/4”
EV APORATOR
COIL
TOP FILTER RACK
BEND FLANGE AT 90˚ -SCREW TO
DIVIDER WITH 1-IN. SCREW
BOTTOM FILTER
RACK
DAMPER
BLADE
MANUAL OUTSIDE
AIR HOOD
REPLACEMENT
PANEL
ECONOMIZER
FILTER RACK
MANUAL OUTSIDE AIR DAMPER
A05239
50X
P
