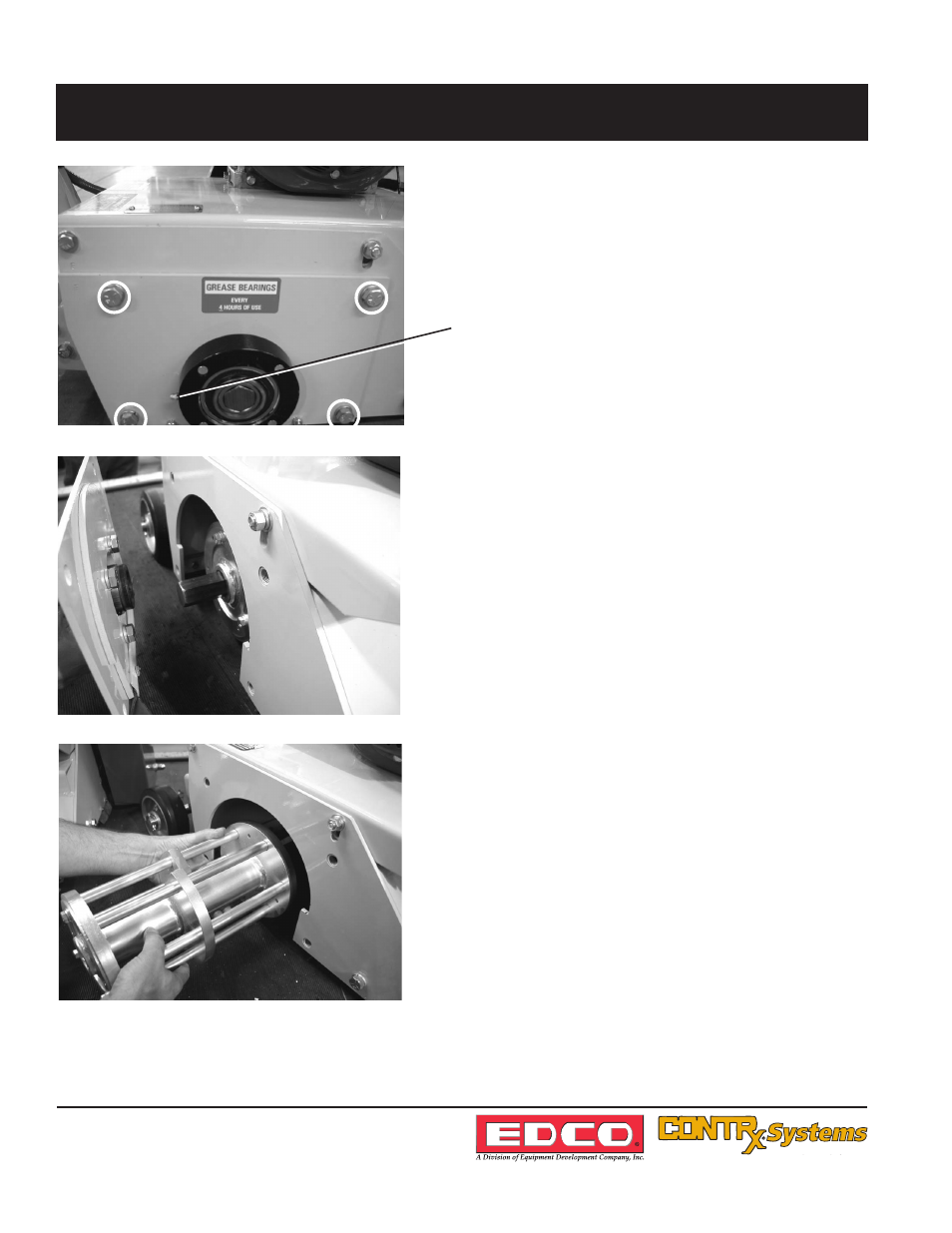

To remove or replace the drum assembly on the CPM-10
remove the four (4) bolts circled securing the bearing plate
in the photo on the left .
NOTE: Bearing grease point.
CPM-10 DRUM REMOVAL / REPLACEMENT
Next remove the bearing plate as shown in the photo on the
left.
Slide the drum out as shown in the photo on the left.
Reverse procedure to reassemble.
