EcoTech Marine TIR Lens - Manual (Page 2)

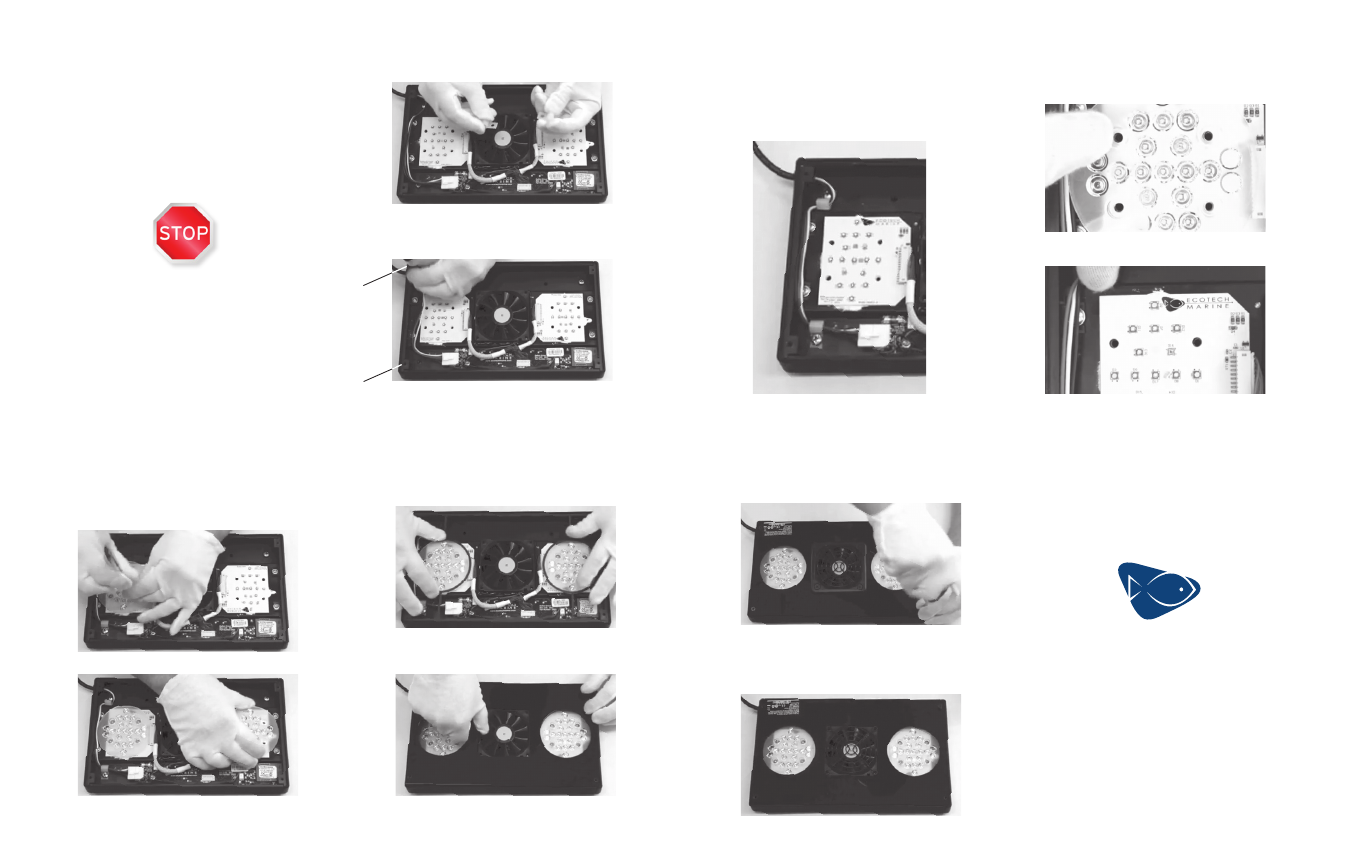

STEP 15:
ALIGN FAN GRILL
ASSEMBLY (2 PIECES) AND FASTEN
PHILLIPS SCREWS (4) INTO FAN HOUSING.
STEP 10:
ENSURE LENS
IS ALIGNED AND PLACE IT OVER
CLUSTER.
STEP 14:
FASTEN REMAINING
PHILLIPS SCREWS (4) INTO EACH CORNER.
STEP 9:
ROUTE WIRES NEATLY
ALONG INSIDE WALL AND TIGHTEN
SCREWS ONCE PROPERLY SET.
(See image below.)
STEP 11:
AFTER CENTERING
TIR LENS OVER LED CLUSTER, FASTEN
2.5MM SCREWS (4) INTO HOUSING.
STEP 8:
LOCATE SUPPLIED
WIRE TIES (2).
ROUTE WIRES WITH SUPPLIED WIRE TIES
AND SECURE TO FIXTURE WITH PHILLIPS
CORNER SCREWS (2).
STEP 12:
REPLACE RUBBER GASKET,
ENSURING THAT IT IS FULLY ALIGNED AND
SEATED FLAT ON EACH CORNER.
STEP 13:
REPLACE ACRYLIC BOTTOM
PLATE AND ENSURE AN EVEN, SNUG FIT.
(Adjust wiring if necessary.)
(Repeat this process for second lens.)
DO NOT
OVERTIGHTEN SCREWS.
IT MAY STRIP SCREWS OR
DAMAGE THE RADION.
YOU HAVE SUCCESSFULLY
UPDATED YOUR
RADION XR30w WITH
TIR
LENSES
.
(Wait to tighten screws.)
(Serial number sticker should be visible.)
View the video at
www.ecotechmarine.com/tirlens/
>
>
Note: Upon completion of the TIR lens installation,
you will no longer need original clear lens
plates or reflectors. The TIR lenses are thinner than
the original reflector and plate assembly and will be
recessed in the fixture. As with the previous assembly,
the TIR lenses make a water-resistant seal with the
rubber gasket that was reinstalled in Step 12.
