TOOLS NEEDED:

Philips screwdriver

INSTALLATION

OF THE

G3

LENS FRAME

FOR THE

RADION XR30w

View the video at

www.ecotechmarine.com/G3lensframeinstall/

View the video at

www.ecotechmarine.com/G3lensframeinstall/

®

610 954 8480

800 785 0338 (toll free)

888 500 2907 (fax)

INCLUDED IN LENS FRAME KIT:

Lens Frame (1), Fan Gasket (1)

• Before starting this process, ensure that

your Radion XR30w is disconnected from its
power supply.

• Place the Radion on a soft surface to protect

the cover plate from scratches.

• EcoTech Marine recommends the use of gloves

during this process to prevent any fingerprints
from getting on the LED clusters. Fingerprints
could cause a decrease in light output.

• EcoTech Marine is not responsible for any

damage caused to the Radion, your aquarium
and its livestock, or your property as a result
of improper use of the G3 lens frame.

• Installation of the G3 lens frame will not affect

your existing warranty of the Radion XR30w.

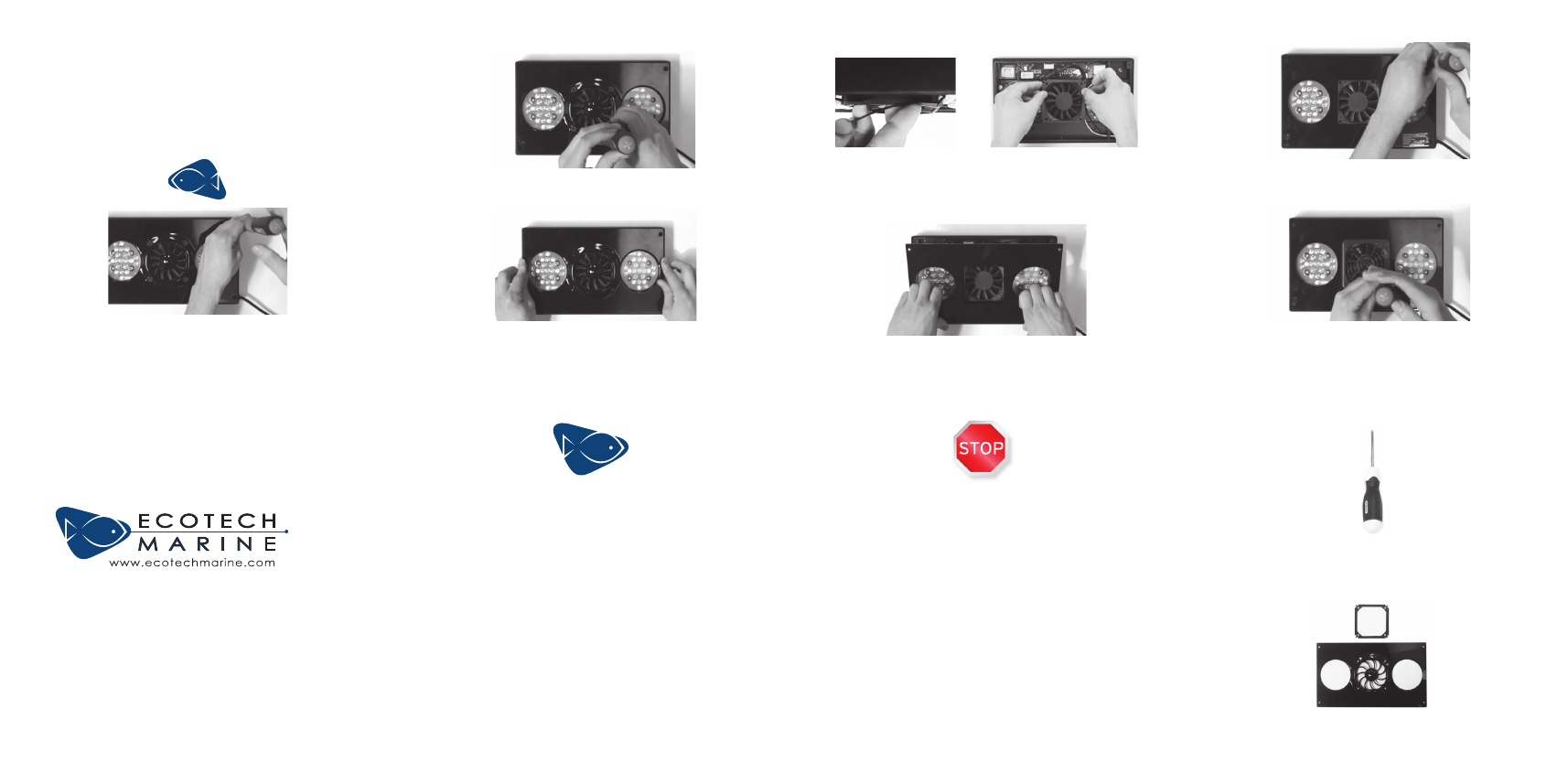

STEP 3:

LIFT LENS FRAME OUT OF RADION

AND DISCARD.

STEP 4:

REMOVE THE ADHESIVE BACKING ON

THE FAN GASKET AND ADHERE GASKET TO F

AN MAK-

ING SURE TO LINE UP HOLES PRECISELY AND FOLD

DOWN EDGES.

STEP 1:

REMOVE PHILLIPS FAN SCREWS

(4) AND REMOVE FAN GRILL ASSEMBL

Y (2 PIECES)

AND SET ASIDE.

STEP 6:

INSERT F

AN SHOULDER

SCREWS (4) AND TIGHTEN.

STEP 2:

REMOVE PHILLIPS LENS FRAME

SCREWS (4) AT OUTER CORNERS AND SET ASIDE.

XR776 RETROFIT LENS FRAME KIT

YOU HAVE SUCCESSFULL

Y

UPDATED YOUR

RADION XR30w

WITH

G3

LENS FRAME

STEP 7:

INSERT THE LENS FRAME

SCREWS (4) INTO THE CORNERS OF THE LENS

FRAME AND TIGHTEN.

STEP 5:

TAKE G3 LENS FRAME, REMOVE

PROTECTIVE FILM AND SET INTO YOUR RADION

HEAT SINK.
