EcoTech Marine Radion G3 Cluster User Manual
G3 clusters, Step 3, Step 7

TOOLS NEEDED:
Phillips screwdriver, Small flathead screwdriver
and gloves
UPGRADING
TO
G3 CLUSTERS
FOR THE
RADION XR30w
View the video at
www.ecotechmarine.com/g3clusterinstall/
Installation of G3 clusters will increase
the light output from your Radion fixture.
Overlighting your tank may cause damage
to inhabitants.
View the video at
www.ecotechmarine.com/g3clusterinstall/
®
610 954 8480
800 785 0338 (toll free)
888 500 2907 (fax)
INCLUDED IN G3 CLUSTER RETROFIT KIT:
G3 Clusters (2), Alcohol swabs (2),
Thermal compound applicator (1), 2.5mm hex key (1)
• Before starting this process, ensure that
your Radion XR30w is disconnected from its
power supply.
• Place the Radion on a soft surface to protect
the cover plate from scratches.
• EcoTech Marine recommends the use of gloves
during this process to prevent any fingerprints
from getting on the LED clusters. Fingerprints
could cause a decrease in light output.
• EcoTech Marine is not responsible for any
damage caused to the Radion, your aquarium
and its livestock, or your property as a result
of improper use of the G3 Cluster Kit.
• Installation of the G3 Cluster Kit will not affect
your existing warranty of the Radion XR30w.

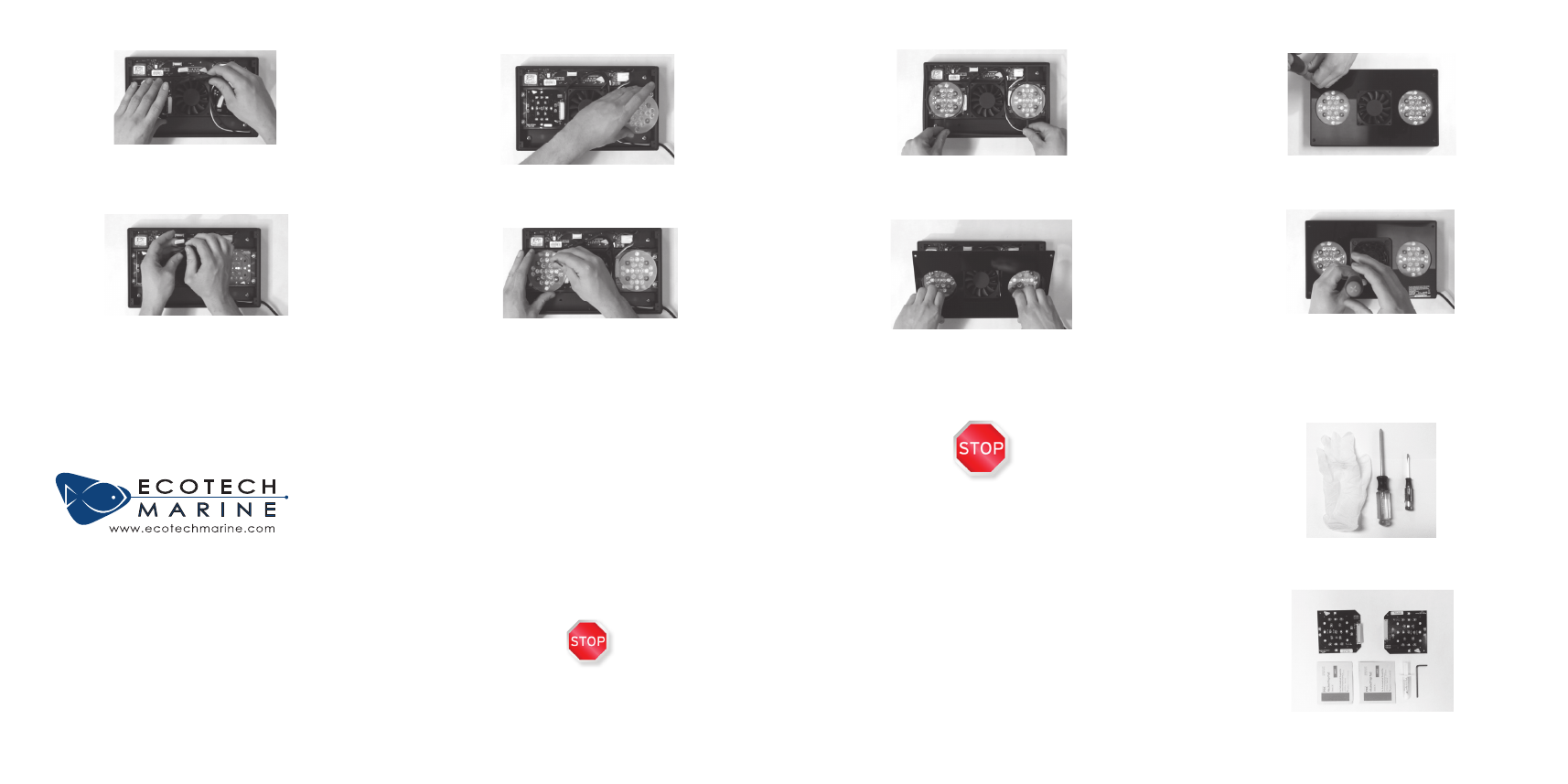

STEP 3:
LIFT OUT THE LENS FRAME AND
SET ASIDE.
STEP 7:
VERY CAREFULL
Y
DISCONNECT THE WIRE HARNESS
FROM THE DRIVER BOARD.
STEP 4:
REMOVE THE PAPER GASKET AND
SET ASIDE.
STEP 1:
REMOVE PHILLIPS FAN SCREWS
(4) AND REMOVE FAN GRILL ASSEMBL
Y (2 PIECES)
AND SET ASIDE.
STEP 5:
TAKE THE 2.5MM HEX KEY AND
REMOVE ALL OF THE HEX SCREWS(4) FROM
BOTH OF THE TIR LENSES AND SET ASIDE.
STEP 6:
REMOVE THE TIR LENSES
AND SET ASIDE.
STEP 2:
REMOVE PHILLIPS LENS FRAME
SCREWS (4) AT OUTER CORNERS AND SET ASIDE.
XR903 / XR904 RETROFIT CLUSTER KIT
STEP 8:
CAREFULLY DISLODGE
THE CLUSTERS FROM THE THERMAL
COMPOUND ON THE HEAT SINK AND
SET ASIDE.
