EcoTech Marine Radion G3 Cluster - Manual (Page 2)

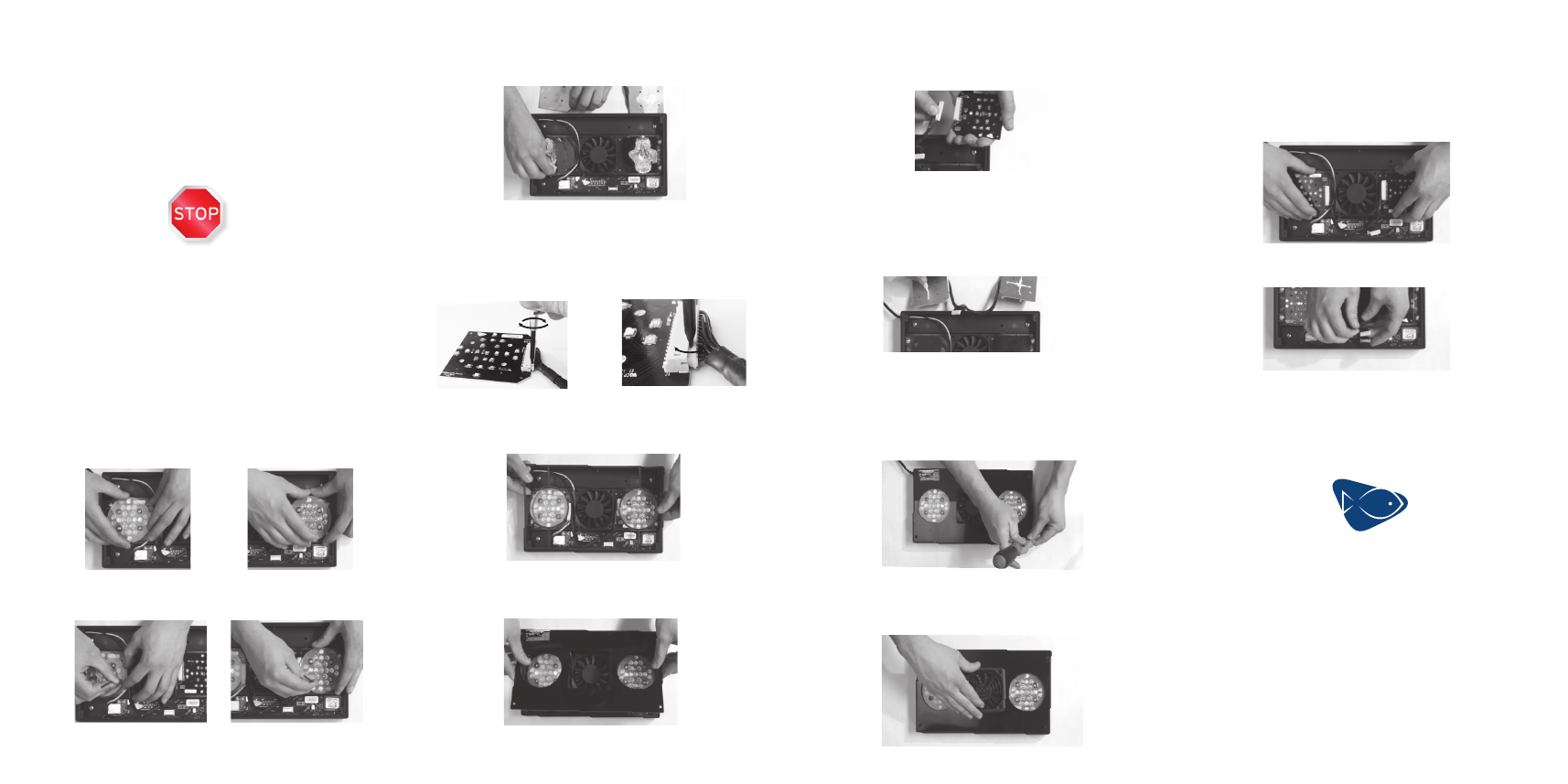

STEP 18:
ALIGN FAN GRILL ASSEMBLY
(2 PIECES) AND FASTEN PHILLIPS SCREWS (4)
INTO FAN HOUSING.
STEP 13:
FLIP THE CLUSTERS OVER,
PLACE ON THE HEAT SINK MAKING SURE THE
EXPOSED CONNECTOR ON THE WIRE HARNESS IS
ORIENTED TOWARDS THE DRIVER BOARD. GENTLY
PRESS DOWN. MAKE SURE TO LINE UP THE HOLES
IN THE CLUSTERS WITH THE HOLES IN THE HEAT
SINK.
STEP 17:
FASTEN PHILLIPS SCREWS (4)
INTO EACH CORNER OF THE LENS FRAME.
STEP 11:
ATTACH NEW G3 CLUSTERS TO
THE WIRE HARNESS.
STEP 9:
USING INCLUDED ALCOHOL PADS
REMOVE THERMAL COMPOUND FROM HEAT SINK AND
CLUSTERS.
STEP 15:
REPLACE PAPER GASKET, ENSURING
THAT IT IS FULLY ALIGNED AND SEATED FLAT ON EACH
CORNER.
STEP 16:
REPLACE ACRYLIC LENS FRAME AND
ENSURE AN EVEN, SNUG FIT.
DO NOT
OVERTIGHTEN SCREWS.
IT MAY STRIP SCREWS OR
DAMAGE THE RADION.
View the video at
www.ecotechmarine.com/g3clusterinstall/
YOU HAVE SUCCESSFULLY
UPDATED YOUR
RADION XR30w WITH
G3
CLUSTERS
STEP 10:
USING A SMALL FLATHEAD SCREW-
DRIVER CAREFULLY INSERT THE TIP INTO THE GAP
BETWEEN THE CONNECTOR OF THE WIRE HARNESS
AND THE CLUSTER VERTICALLY AND GENTLY ROTATE TO
LOOSEN CONNECTOR, THEN GENTLY PULL TO REMOVE.
SET WIRE HARNESS AND OLD CLUSTERS ASIDE.
STEP 12:
USE THE INCLUDED THERMAL
COMPOUND APPLICATOR TO APPLY A THIN BEAD OF
THERMAL COMPOUND IN A X PATTERN ON THE BACK
OF THE G3 CLUSTERS.
STEP 14:
PLACE TIR LENSES OVER LED
CLUSTERS, MAKING SURE TO LINE UP LENS AND
CLUSTER HOLES.
USING THE INCLUDED 2.5 MM HEX KEY TIGHTEN
EACH LENS SCREW WHILE MAKING SURE THAT THE
LENSES ARE STRAIGHT. (REPEAT FOR BOTH)
PLUG THE WIRE HARNESS/CLUSTER ASSEMBLY
IN TO THE DRIVER BOARD.
