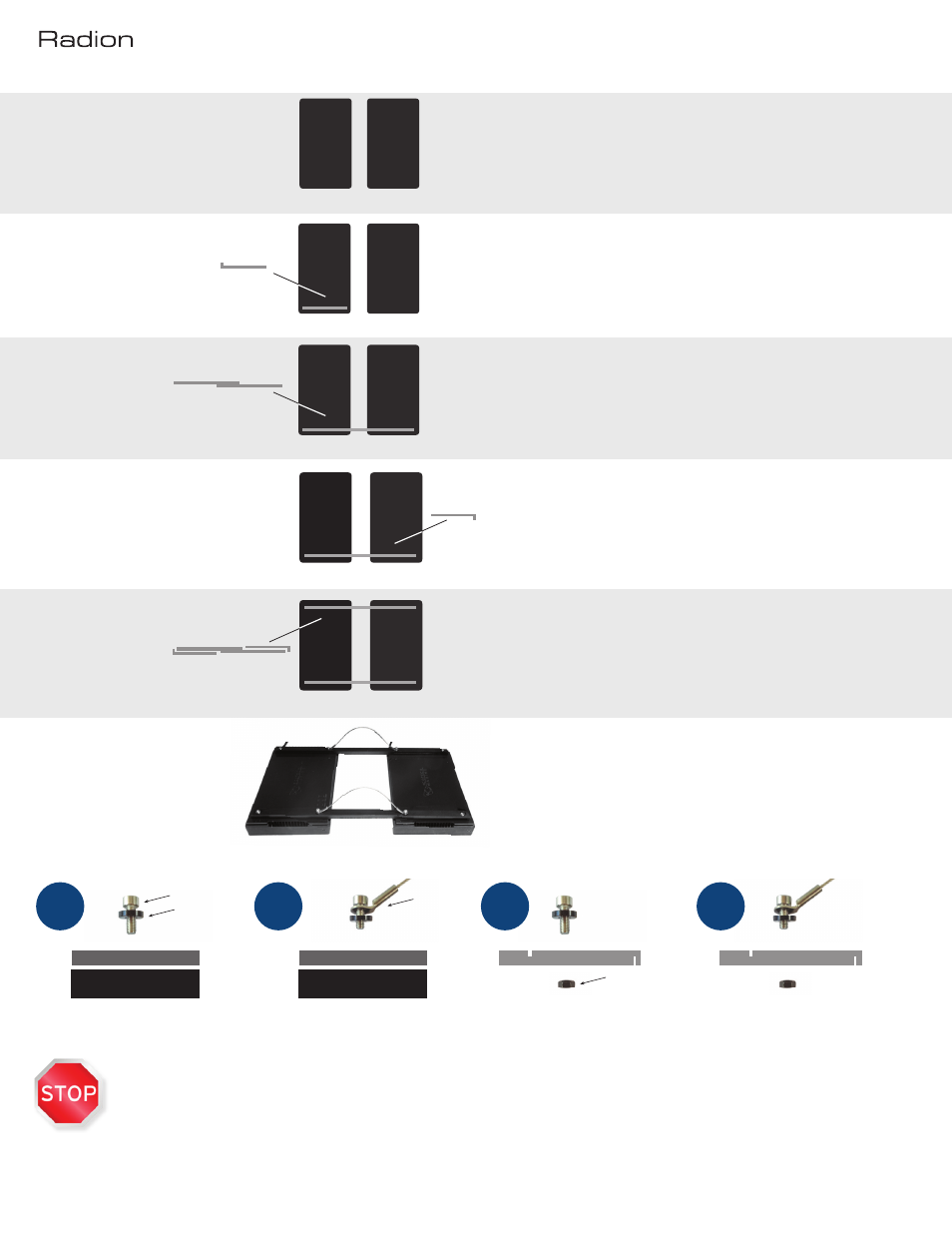

RAIL KIT STEP-BY-STEP INSTRUCTIONS

STEP 1:

PLACE RADIONS SIDE BY SIDE

STEP 4:

PLACE AN END CAP NOTCH DOWN
TO COMPLETE THE FIRST RAIL
OR ADD A +ONE RAIL

STEP 6:

DETERMINE WHERE EYELET
CABLES WILL BE MOUNTED
(OPTIONAL). ATTACH RAILS
TO RADIONS.

RAIL TO RADION

RAIL TO RADION WITH EYELET

RAIL TO RAIL WITH EYELET

(Multiple kits only)

STEP 3:

PLACE A RAIL FACE DOWN

•

Do not install Radions above an aquarium while they are plugged into an electrical outlet. Mount the Radions first and then connect power to the fixtures.

•

EcoTech is not responsible for any damage to fixures, your aquarium and its livestock or your property as a result of improper use of the rail kits.

•

Never hang pointed or sharp objects at eye level where they may come in contact with persons.

APPROXIMATE PLACEMENT DISTANCE
5.25 in (13.34 cm) – Long Rail Kit
3.25 in (8.26 cm) – Short Rail Kit

Radion Radion

Screw
Bushing

Rail

Radion

STEP 2:

PLACE AN END CAP NOTCH UP

Radion Radion

STEP 5:

CREATE A
SECOND RAIL

Place Radions parallel to each other on a flat surface with the
power cables on the same side. If using the Long Rail Kit,
Radions should be spaced 5.25 in (13.34 cm) apart. If using
the Short Rail Kit, Radions should be spaced 3.25 in (8.26 cm) apart.

Place an end cap notch up on one Radion so that the screw
holes align with the mounting holes on the Radion.

Place a rail across both radions so that the end cap and the
rail create a solid bar. Make sure that all screw holes align with
the mounting holes on the Radions.

If you are connecting more than two Radions together, you will
use an additional connector rail as supplied in the appropriate
+One Kit. If you are completing a rail, place a second end cap
notch down to complete a solid bar.

Repeat steps 2 through 4 to complete the second rail.

With the rails assembled, determine where the eyelet cables
(optional) will be mounted. Use the images below to identify
rails and/or eyelet cables.

Radion Radion

RAIL TO RAIL

(Multiple kits only)

Nut

Eyelet

For video tutorials or more information, please visit us at ecotechmarine.com

or visit our community knowledge base at community.ecotechmarine.com.

Complete Rail

Side View

End Cap

Side View

Rail Side View

End Cap

Side View
