26 VS735

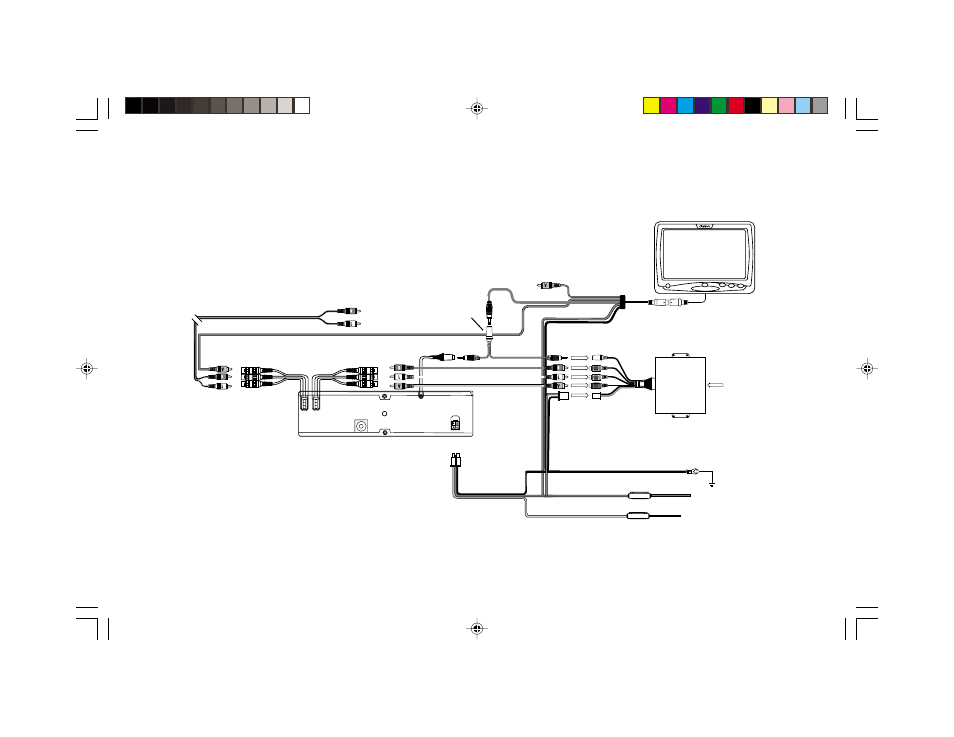

VS735 with TV Tuner
Black - Ground
Video output -
to monitor
Audio output - to head unit with volume control
or Clarion FM200 FM Modulator
VS 735
IR input
Red +12V Accessory
Power Harness
Clarion
VMA 7191
monitor
Optical
digital
output
A/V Auxiliary inputs
A/V Output
Antenna
ZCB 001
TTX 001
TV Tuner
3-conductor
"Y"-cable
(not supplied)
Power
Harness
Video input 1
Video input 2
Video
input 1
Black - Ground
Red +12V ACC
Yellow +12V Constant Power
