20 VS735

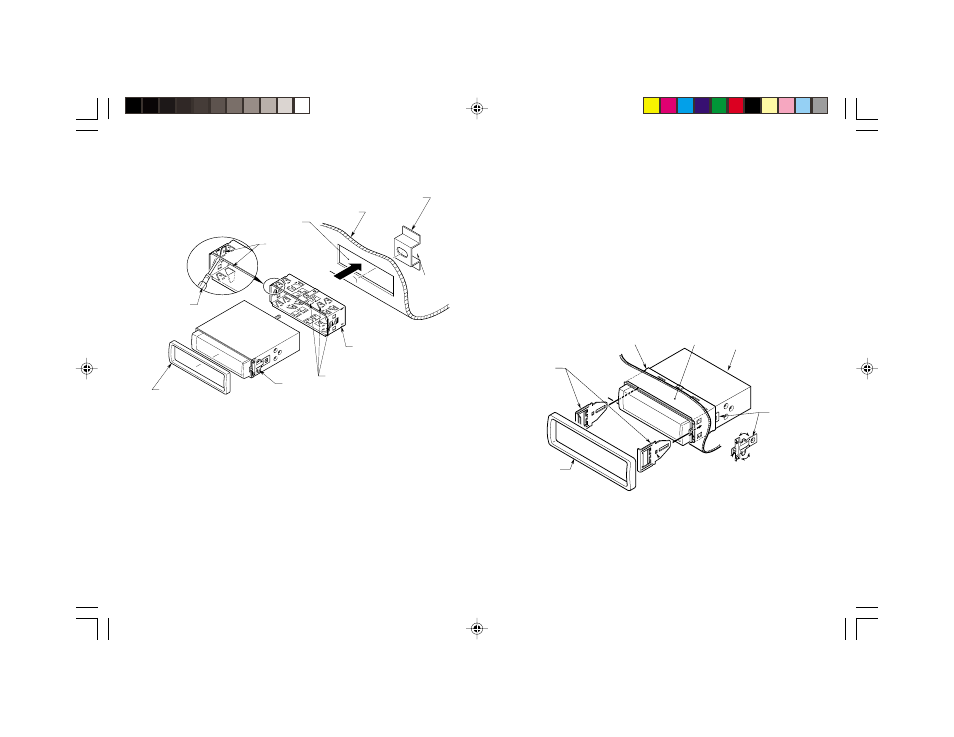

VS735 unit
Screwdriver
Tabs
Hole
Rear fastening hole of vehicle,
Instrument panel
Universal mounting bracket sleeve
Tabs
Trim ring
or other tool
Sleeve clip
or backstrap
Nut and washer
Removing the VS735 from the Universal In-Dash Mount
Note:
• This requires you to have the original release tools provided with the
VS735. Keep these tools in a safe place, not in the vehicle.
1 Remove the rear nut from the backstrap.
2 Remove the trim ring.
3 Insert the removal tools as shown, until a ‘click’ is heard.
Pull gently and evenly on both the left and right side tools,
and the unit will slide out of the mounting bracket sleeve.
Removal tools
Trim ring
Sleeve clip
VS735
Mounting bracket
sleeve
Rear nut
Instrument
panel
Installing into the Universal In-Dash Mount Sleeve
