Clarion VS735 - Manual (Page 25)

VS735 25

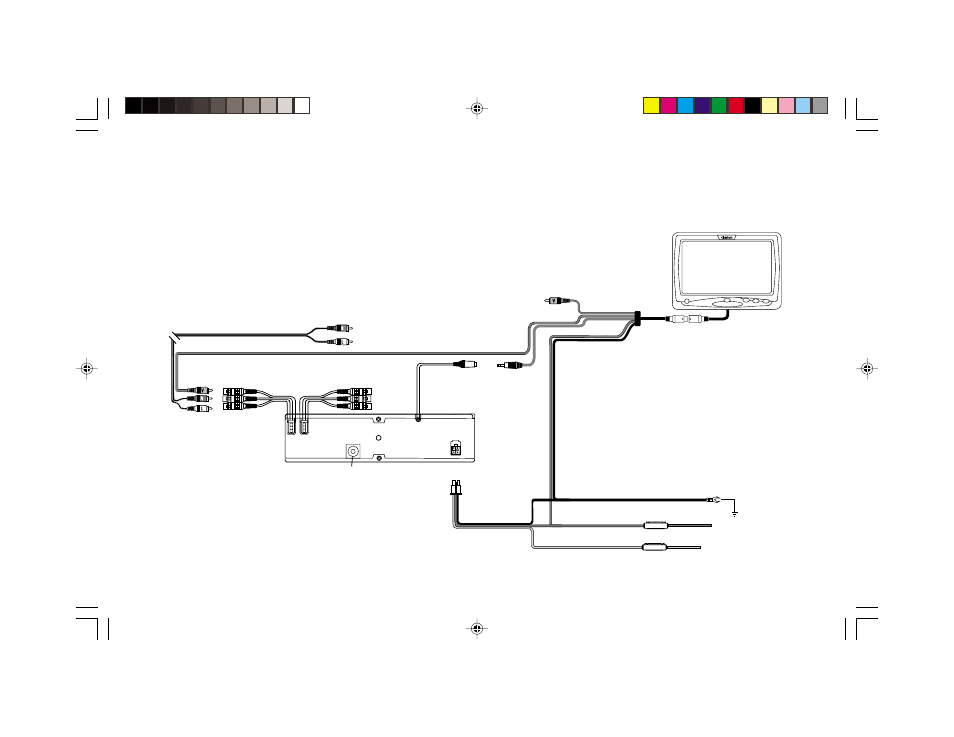

VS735 with Monitor
Yellow +12V Constant Power
Black - Ground
Video output -
to monitor
Audio output - to head unit with volume control
or Clarion FM200 FM Modulator
VS 735
IR input
Red +12V Accessory
Power Harness
Clarion
VMA 7191
monitor
Optical
digital
output
A/V Auxiliary inputs
A/V Output
Video input 2
Video input 1
Video
input 1
Red +12V
Accessory
Black -
Ground
