Clarion VS735 User Manual

Page 19

VS735

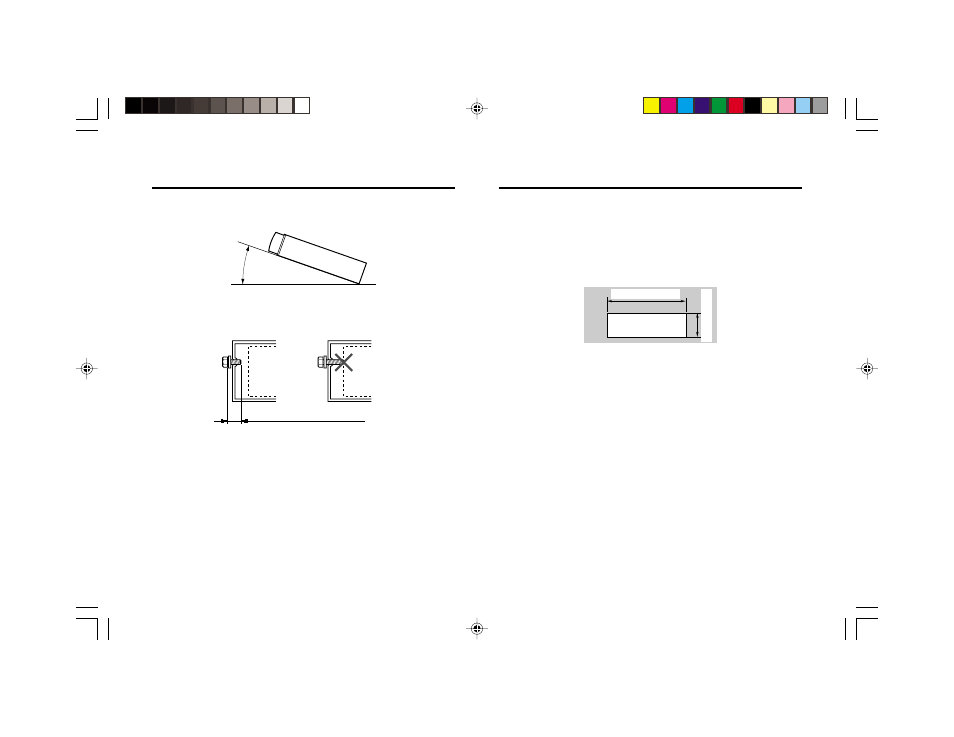

3. Installation Requirements

1 Install the unit within 30 degrees of the horizontal plane.

Max. 30˚

2 Use the enclosed screws for installation. Using other

screws can cause damage and void the warranty.

Chassis

Damage

Max. 8 mm (M5 screw)

4. Installing the VS735

Installing into a Universal In-Dash Mount (using the DIN
sleeve)

First, verify that the opening you will be mounting the VS735
into will accommodate the mounting sleeve.

Sleeve opening dimensions

Hole

7-3/16" (182 mm)

2-1/16" (53 mm)

Note:

•

Some car models require special mounting kits for proper installation.
Consult your Clarion dealer for details.

1 Place the universal mounting sleeve into the instrument

panel opening. Ensure a tight fit.

2 Bend the tabs of the mounting sleeve inward as shown to

lock the sleeve into place.

3 Wire the power harness, make all connections to the

VS735 (see “Wiring the VS735”), and plug in the power
harness.

4 Gently insert the VS735 into the mounting sleeve until it

locks into place with a ‘click’.

5 Clip the trim ring into place.
