For more detailed information, refer to the User Manual (on Defibtech User CD).

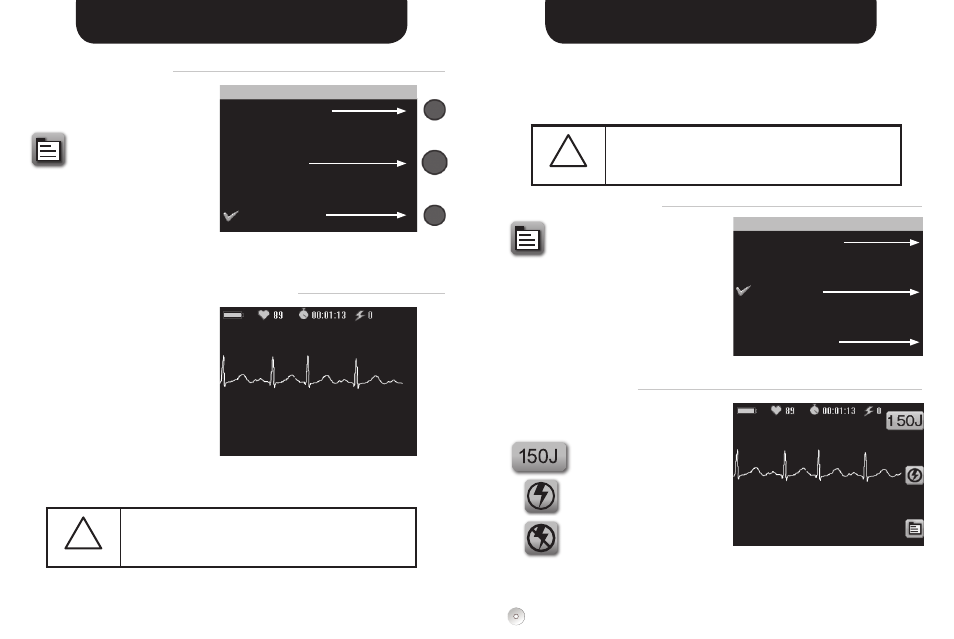

USING THE AED - ECG DISPLAY MONITOR
(DDU-2400 AND DDU-2450 ONLY)
USING THE AED - MANUAL MODE
(DDU-2400 ONLY)
SELECTING ECG DISPLAY
The DDU-2400 and DDU-2450 allow the
user to display the patient ECG when the
unit is being used as an AED.
To select ECG display, press the
bottom softkey button next to
the Mode Select Icon (shown
at left) to bring up the Mode of
Operation screen (shown at right).
Press the corresponding softkey (bottom
button) to select AED / ECG Mode.
Mode of Operation screen
(with corresponding softkey buttons)
Mode of Operation
AED / Video Mode
Manual Mode
AED / ECG Mode
USING THE 3-LEAD ECG MONITORING ADAPTER
The DDU-2400 and DDU-2450 allow
the user to perform 3-lead monitoring
using the optional ECG Monitoring
Adapter (DAC-2020/2021).
To enable ECG Monitor Mode, unplug
the defibrillation pads and plug the ECG
Monitoring Adapter into the pads connector
socket. The AED will automatically switch
to ECG Monitor Mode.
To perform a rescue, unplug the ECG
Monitoring Adapter and plug in the
defibrillation pads.
ECG Monitor Mode screen
Monitoring
Monitoring
!
WARNING
The ECG Display provides non-diagnostic ECG of the patient’s
heart rhythm. It is not intended to provide diagnostic or ST
segment interpretation.
SELECTING MANUAL MODE
To select Manual Mode, press the
bottom softkey button next to the
Mode Select Icon (shown at left) to
bring up the Mode of Operation
screen (shown at right).
Press the corresponding softkey (middle button)
to select Manual Mode.
Mode of Operation screen
The DDU-2400 AED provides a Manual Mode to override the AED features of the defibrillator.
Manual Mode provides operator-initiated analysis, charge, shock, and disarm functions and is
intended for use by qualified medical personnel trained in advanced life support skills and ECG
recognition who want to deliver a shock independent of AED Mode.
USING MANUAL MODE
While in Manual Mode, pressing the softkey as-
sociated with the icons below allows the user to:
Energy Select: Select the desired
energy level (top button).
CHARGE: Initiates a charge
(middle button).
DISARM: Cancels a charge
(middle button after a charge
is initiated).
When charging is complete, press the flashing SHOCK button.
Manual Mode screen
Mode of Operation
AED / Video mode
Manual Mode
AED / ECG Mode
!
WARNING
The DDU-2400 Manual Mode Charge feature is intended for use
only by authorized operators who have been specifically trained in
cardiac rhythm recognition and in manual defibrillation therapy.
Manual Mode
Manual Override
