PRODUCT MANUAL

LR-16 CONNECTIONS AND USER INTERFACE

SIGNAL FLOW

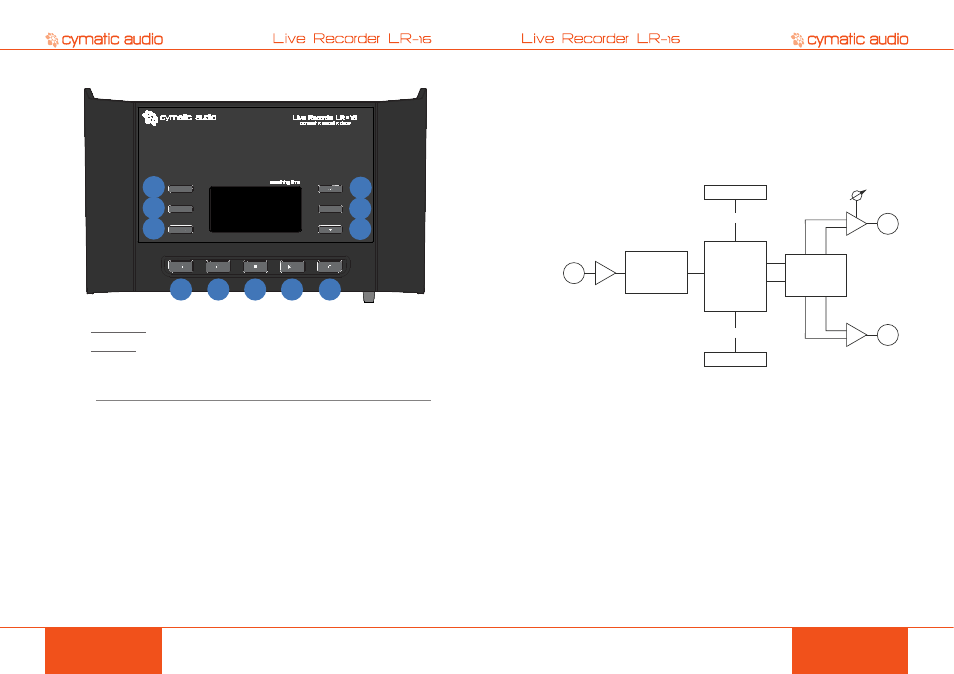

6.3. Top Panel

1
2
3

10
11

The LR-16 contains two separate modes of operation:
• Recorder Mode: The main mode of operation, this mode allows recording of 16 separate

signals feeding the inputs.

• Player Mode: This mode allows playback of stereo wave files, for playback of song files for

pre/post/break music.

The top panel buttons perform the following functions when the unit is set to the two different

modes:

Recorder Mode

Player Mode

USB Interface Mode

Switch to player mode

Switch to recorder mode

N/A

Show recorder menu

Show player menu

Show input settings menu

Go back to previous screen Go back to previous screen

Go back to previous screen

Go to previous song

Mackie Control/MMC Skip Back

Go to next song

Mackie Control/MMC Skip Forward

Stop recording / playback

Stop playback

Mackie Control/MMC Stop Back

Start / pause playback

Mackie Control/MMC Play

Start new recording

Switch to recorder mode/start

recording

N/A

Selection up

Select

Selection down

SIGNAL FLOW

• The LR-16 contains 16 separate line-level inputs, which are digitized into 16 discrete audio

streams and sent to the internal stream controller

• The LR-16 contains an internal digital mixer that provides a stereo mix down of the 16

separate incoming audio signals, to a 2-channel stereo mix

• This 2-channel mix is output to both the stereo line output, as well as the stereo phones

output (recorder mode)

• When operating as a USB computer audio interface, the stereo line output/phones output

is sourced from a combination of the internal mixer and 2-chanel DAW return (Windows) or

purely the 2-channel DAW return (OS X).

DIGITAL TO

ANALOG

CONVERTER

(2 Ch.)

ANALOG TO

DIGITAL

CONVERTER

(16 Ch.)

USB Media

USB 2.0

Computer

STREAM

CONTROLLER

INTERNAL

DIGITAL 16x2

MIXER

STEREO

PHONES

OUTPUT

Phones

level

LINE

INPUTS

(x 16)

STEREO

LINE

OUTPUT
