4. INTRODUCTION
Thank you for purchasing the Cymatic Audio Live Recorder LR-16.
The Live Recorder LR-16 is the world’s easiest to use Direct to USB 16-track recorder and 16 in
/ 2 out USB audio interface for PC, Mac® and iPad®.
The LR-16 was designed using high-grade components, in order to ensure optimum performance
as a recorder for live performances, while sparing users the hassle of “traditional” multi-track
recording. The LR-16 does not require any additional hardware, other than a USB hard drive and
cabling, in order to record 16 audio tracks as standard wave files directly from a live sound mixer’s
insert connections. Perfect for beginner recordists who don’t want to deal with difficult and time
consuming learning curves, as well as the most seasoned professionals who don’t want to be
troubled with complicated setups.
Used in connection with a PC, Mac® or iPad®, the LR-16 also serves as an 16 input/ 2 output
USB audio interface. When you’ve finished your live recording in the field, simply connect the
LR-16 to your computer or Ipad, and you have a high quality USB audio interface. Plug your USB
drive into your computer, and drag and drop your files into your favorite DAW to edit your audio
and perform additional overdubs. Convenient features such as native Mac and iPad® driver
support make installation a breeze. Zero latency hardware monitoring and a built in digital mixer
allow for near-zero latency recording, flexibility and a hassle free setup.
The LR-16 User Manual contains in-depth details of your Live Recorder’s features and functionality,
including:
• Direct to USB hard drive recording (16 tracks at 24-bit, 44.1/48kHz, 2 tracks at 24-bit, 96kHz)
• 16 analog 1/4” TRS insert-style inputs
• Independent and Global 10dB input level padding on all inputs
• Stereo Line level output
• Front panel headphone output with dedicated level control
• Zero latency hardware input monitoring
• Built in digital mixer with per-channel level control, panning, mute, and solo functions
• 24 bit/44.1/48/96 kHz USB Class Compliant Audio Interface
• Mac® OS-X® compatible: Core Audio plug and play drivers
• Windows® PC compatible (Windows XP, Vista, 7 & 8 32-bit/64-bit) WDM and ASIO®
drivers.
• IPad® compatible: Plug and play (USB adapter required including
○ Apple® Lightning to USB Camera Adapter
○ Apple® USB Camera Connection Kit
• Stereo wave file player for background/break music
5. WHAT’S IN THE BOX
• LR-16 recorder
• AC/DC power adapter and power cable
• USB cable
• Quick Start Guide
6. LR-16 CONNECTIONS AND USER INTERFACE

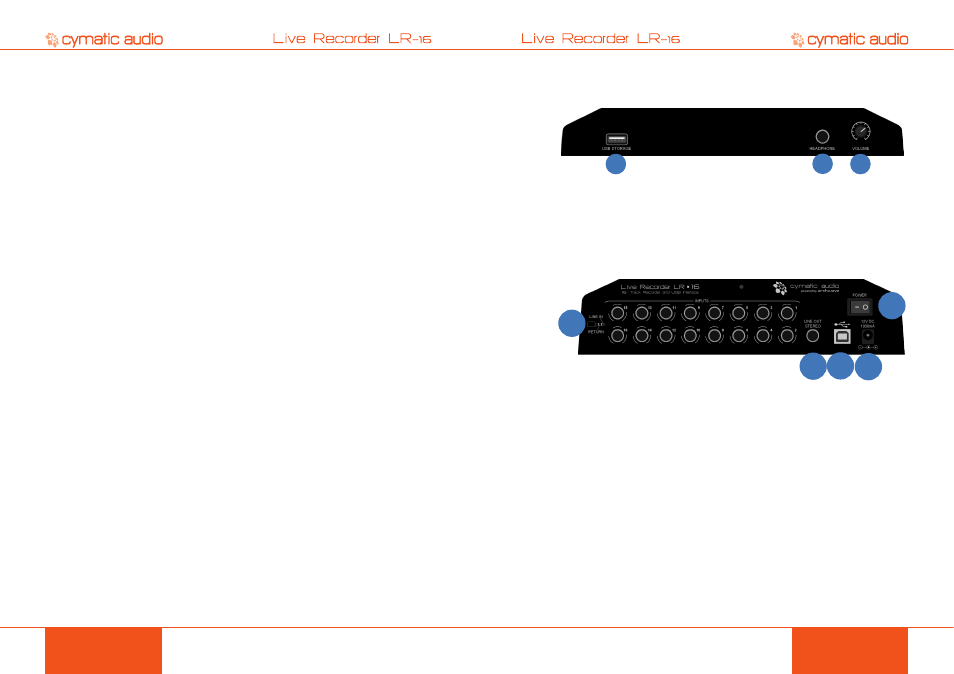

6.1. Front Panel
1 2 3
1. USB Storage Connector
USB 2.0 connector, for connection of a USB hard drive or thumb drive
2. Headphone
¼ Inch Headphone Connector
3. Headphone Volume
6.2. Rear Panel
1
2
3
4 5
1. USB 2.0 Port
For connection to a Mac®, PC or iPad when device is used as audio interface
2. Power Switch
3. Line Level Inputs 1-16
16 analog 1/4” TRS insert-style inputs (unbalanced)
4. Line Out Stereo
Stereo, fixed-level, line output (unbalanced), contains stereo mix of all input channels
5. Power Connector
12V DC, 1000mA, center positive
