Char-Broil 4638220 User Manual

Page 14

Cleaning the Burner Assembly

Follow these instructions to clean and/or replace parts of burner
assembly or if you have trouble igniting grill.

1.
2.

Remove cooking grate and drip vaporiser bar.

Discard used briquets before removing burner and briquet
grate.

Under grill remove grease cup and disconnect short ignitor
wire (A) and clips from burner (B). To remove clips pull down
on large end of clip attached to the valve, turn away from
valve, rotate upward and remove small end of clip from
burner tube.

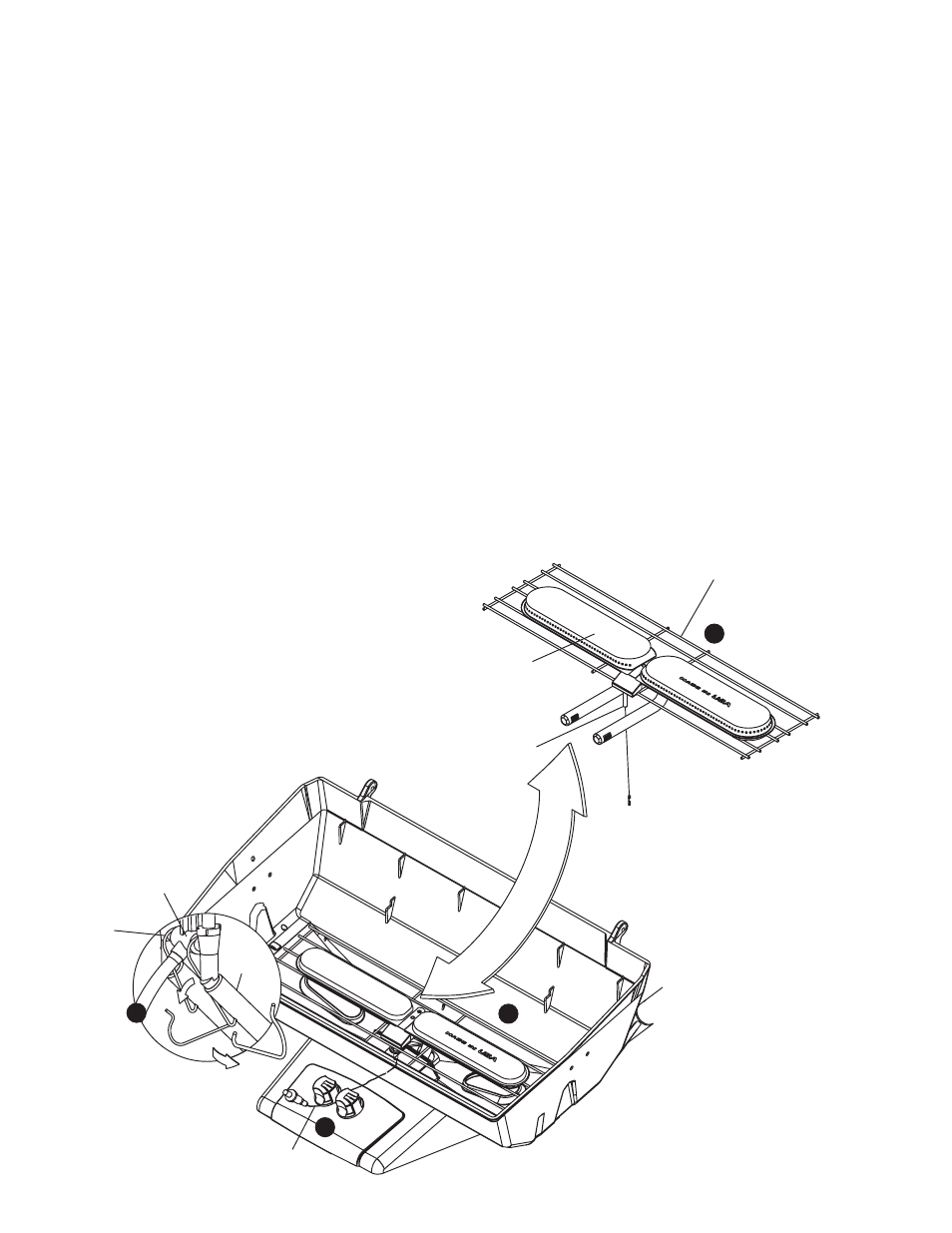

Inside grill remove burner assembly and briquet grate (C),
clean ceramic portion of electrode with rubbing alcohol and a
swab. Remove scale from briquet grate, replace if
necessary.

Clean outside of burner with soap and water. Lay burner
upside down on flat surface, insert garden hose to force
water through tubes. Make sure water comes out of all
burner holes. Open clogged holes with a thin wire.

and examine holes. Due to normal wear

and corrosion some holes may become enlarged. If any
large cracks or holes are found replace burner.

Turn gas off at control knobs and gas source.

Shake

out excess water

If grill is to be stored, coat burner lightly with cooking oil.
Wrap in protective cover to keep insects out.

If not storing grill after cleaning, hold briquet grate and
burner together angle into grill bottom (D).

To reattach clips hold large curved end away from burner
tube, insert small curved end into hole under burner tube,
turn clip towards valve, snap into place.

10. Reattach ignitor wire to ignitor (A).
11. Do not use more than 16 new briquets on briquet grate

around burner. Do not let briquets cover burner holes.

12. Reposition drip vaporiser bar and cooking grate. Reattach

clean can to grease clip.

13. Before cooking again on grill, follow

VERY IMPORTANT: Clips must be attached correctly for

proper grill function (B).

"Burner Flame Check"

Briquet Grate

Burner

Electrode

Valve

Clip

Burner
Tube

Short Ignitor Wire

14 • 4638220
