Using the SEHI Hub View
2-4
Using the Hub View
Clicking on the Device button displays the Device menu,
.

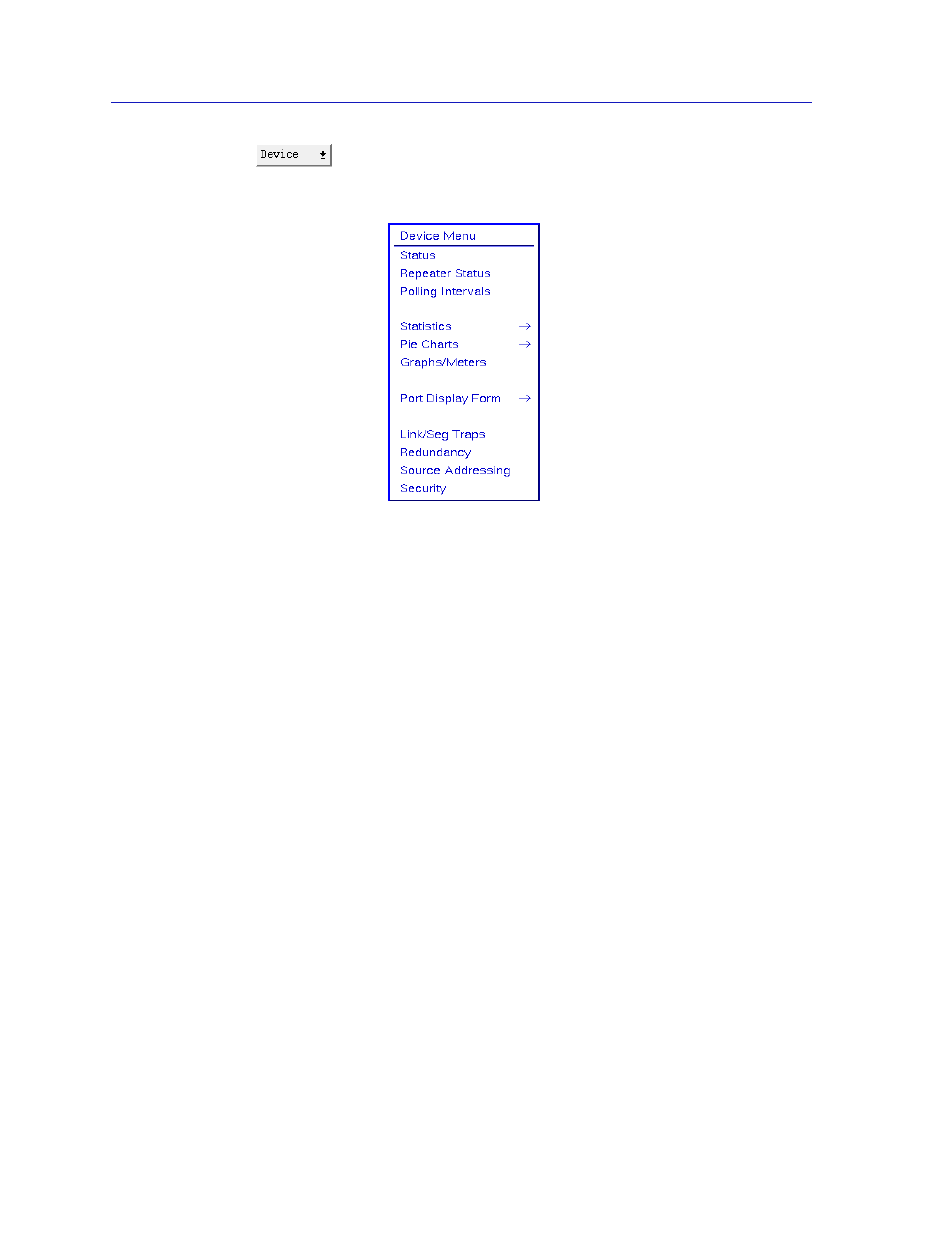

Figure 2-2. SEHI Hub View Device Menu
The Device menu lets you perform the following:
•
Open the Device Status window
•
Open the Repeater Status window
•
Open the Polling Intervals window
•
Open the Statistics windows
•
Create device-level Pie Charts, Graphs and Meters
•
Change the Port Display Form
•
Launch the Link/Seg Traps application
•
Launch the Redundancy application
•
Launch the Source Addressing application
•
Launch the Security application.
Note that the Device menu does not provide access to every application which is
available to the SEHI; some information is only available from the Module or Port
menus, and several applications can only be accessed either from the icon menu
(if you are running under a network management platform) or from the
command line (if you are running in stand-alone mode). See Chapter 1,
Introduction to SPMA for the SEHI-22/24 and SEHI-32/34
, for a complete list of
applications available to the SEHI and how to access each one.
