Source Addressing
5-2 Displaying the Source Address List
The Repeater Source Address window, Figure 5-1 , will appear.

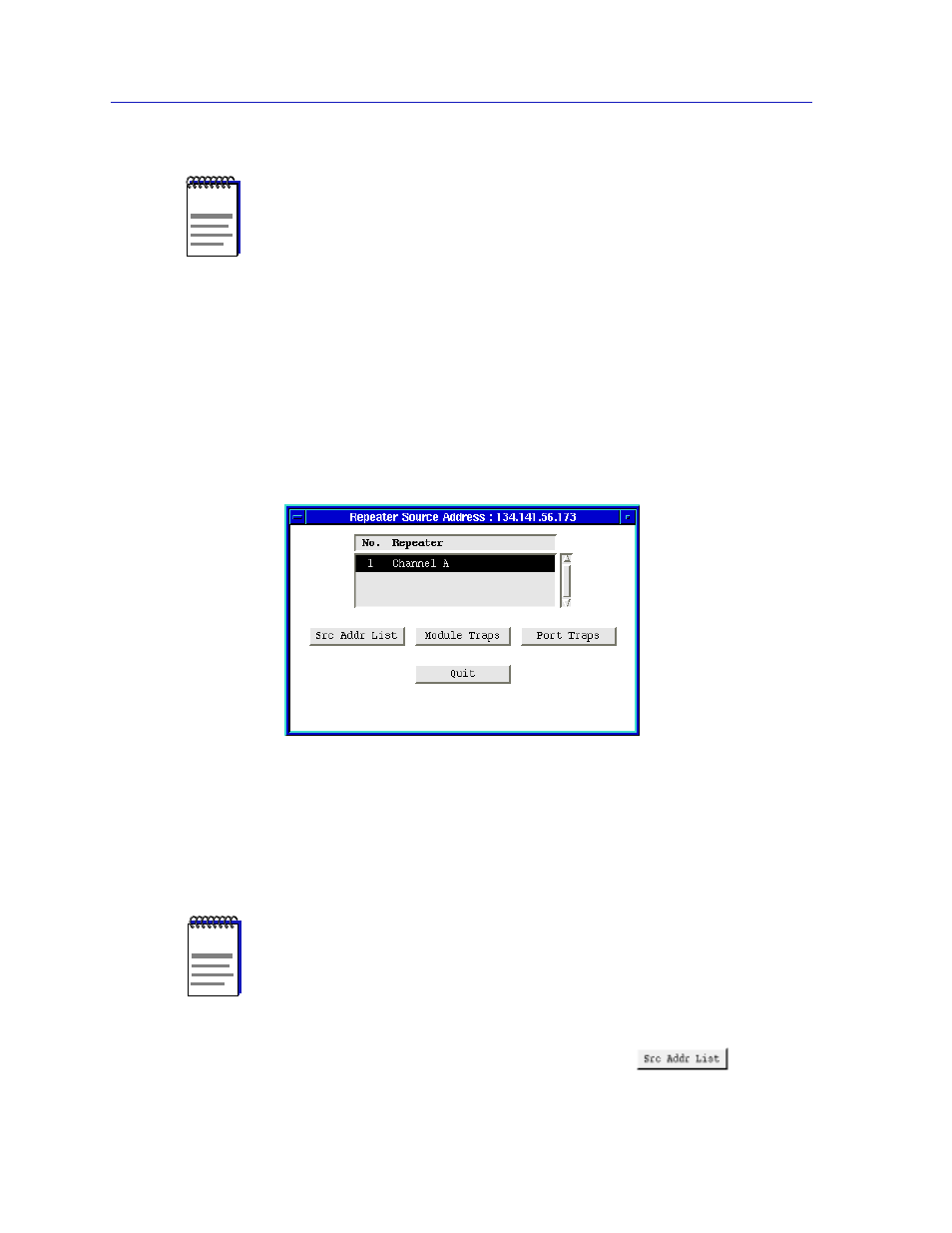

Figure 5-1. The Repeater Source Address Window
The Repeater Source Address window provides a list of the repeater interfaces
available on the SEHI, as well as command buttons that allow you to display the
Source Address List and enable and disable module and port source addressing
traps.
To view the source address list for the device, highlight the interface for which
you wish to view the SAT, then click mouse button 1 on
; the Source
Address List window, Figure 5-2 , will appear.
NOTES
The spmarun script invoked first in the above command temporarily sets the environment
variables SPMA needs to operate; be sure to use this command any time you launch an
application from the command line. This script is automatically invoked when you launch
an application from the icon menu or from within the Hub View.
If you wish to change any Source Address settings, be sure to use a community name
with at least Read/Write access. If you only wish to view current settings, a community
name with Read access will be sufficient. If you wish to lock or unlock ports, you must use
a community name with SuperUser access.
If there is a hostname mapped to your SEHI’s IP address, you can use in
place of to launch this application. Please note, however, that the hostname
is not the same as the device name which can be assigned via Local Management and/or
SPMA; you cannot use the device name in place of the IP address.
NOTE
The ability to enable or disable source addressing traps at the module and port level is not
available in all versions of repeater device firmware; if the Module Trap and Port Trap
buttons are grayed out, these features are not available on your device. Contact Cabletron
Systems Technical Support for more information on upgrading your device firmware.
