DeviceMaster Rackmount Shelf Kit Installation
3
DeviceMaster ATS Installation
DeviceMaster ATS Installation
Use this procedure to install the rackmount shelf kit with a DeviceMaster ATS.
Make sure that you have reviewed the
1.
If you have previously installed the brackets or rubber feet that came with the
DeviceMaster ATS, remove them at this time.
2.

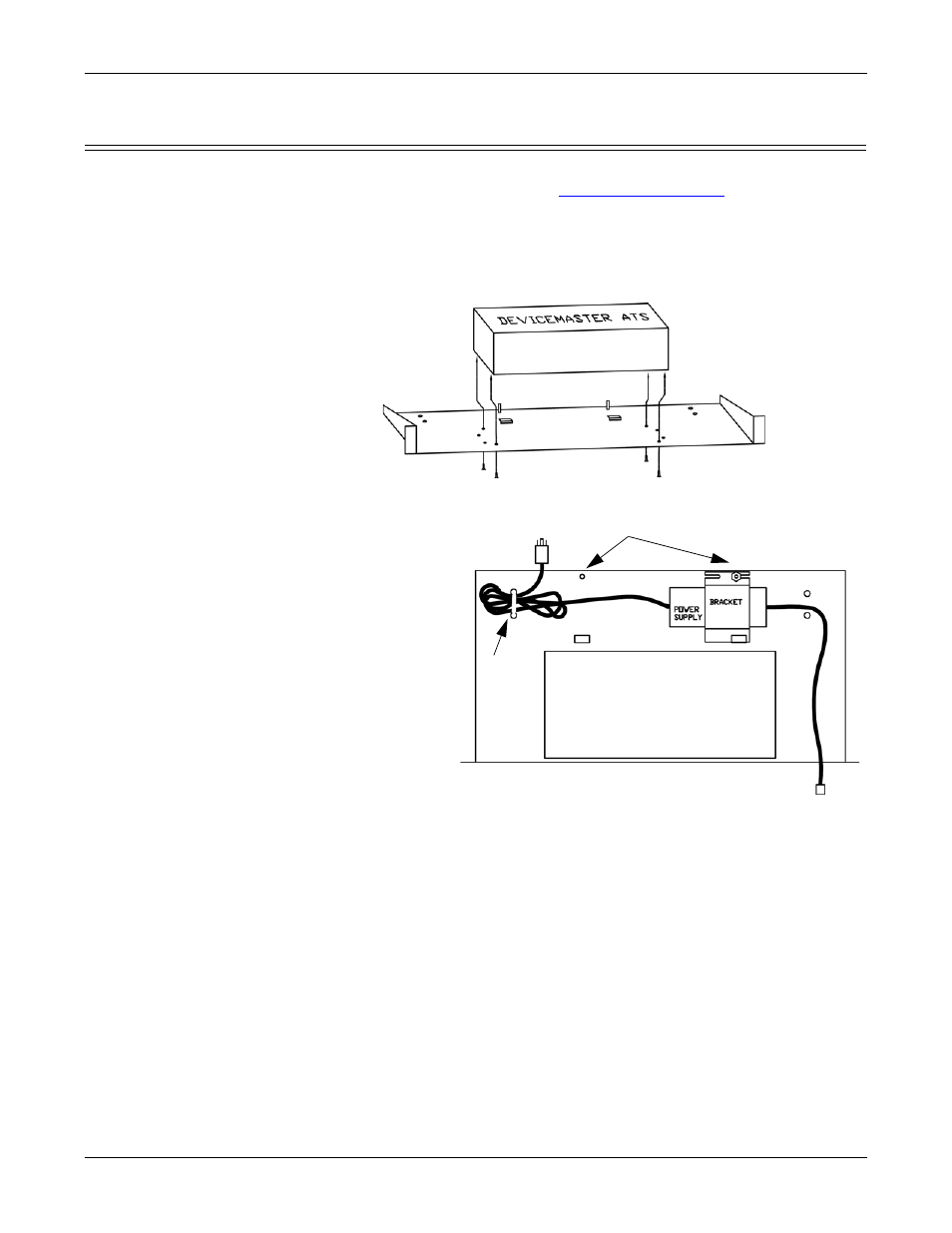

Place the ATS on the shelf, making sure that you align the four small
countersunk holes with the holes in the bottom of the DeviceMaster ATS as
illustrated below.
3.
Insert and secure the four flat head phillips screws.
4.
Align power
supply bracket
(5801097) with
the threaded stub
and lip, and slide
it into place.
5.
Slide the power
supply under the
bracket.
6.
Secure the power
supply bracket
with a nut
(washer side
down).
7.
Align and mount
the shelf into a
standard IT rack
using the four 5/8”
phillips screws provided.
The bracket can be mounted on either side.
Cable tie
