Pinouts for RJ11 Connectors
7
Building Custom Cables
Pinouts for RJ11 Connectors

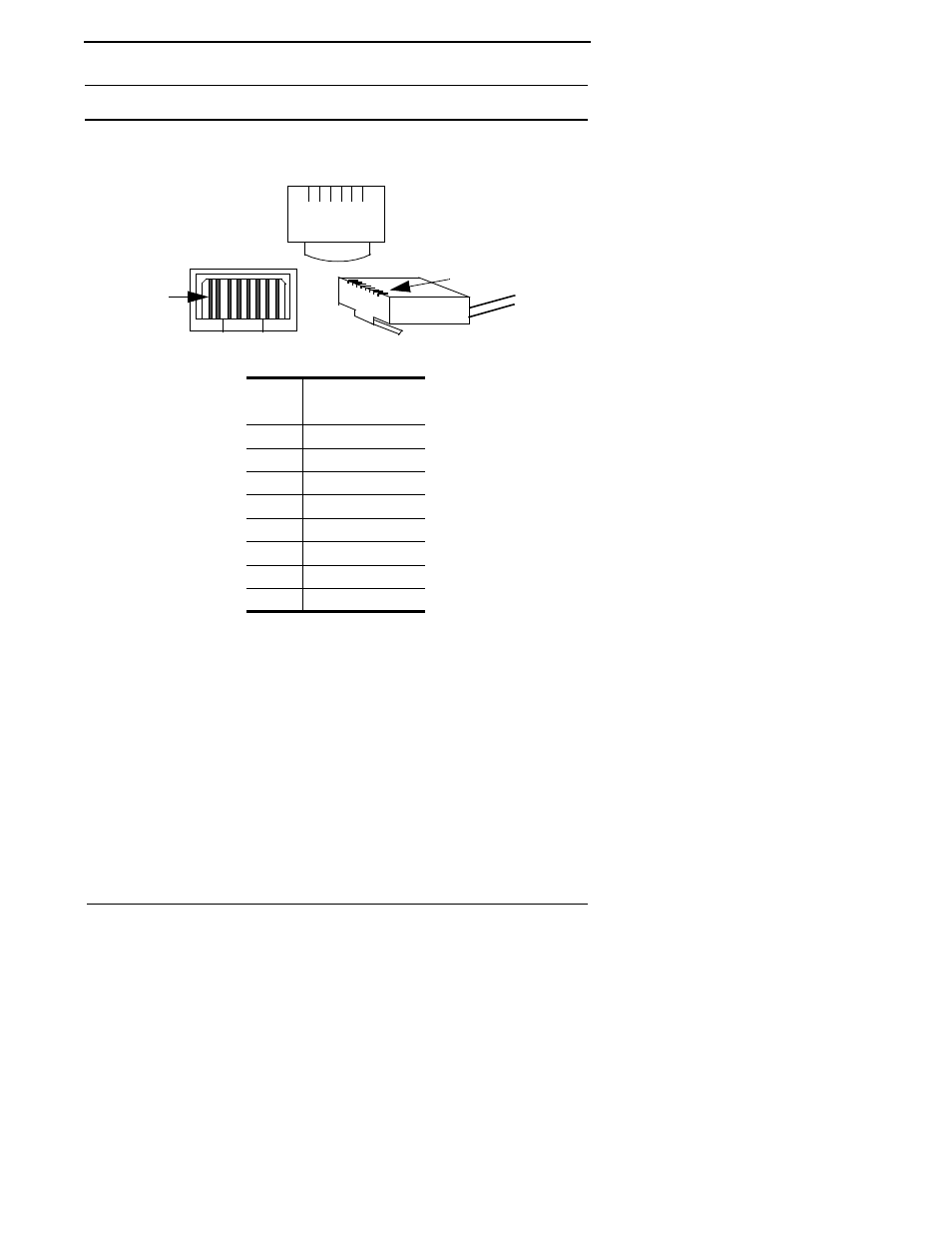

Use the following table and figure for pinout information for the RJ11
connectors on the RocketPort 8J.
•
Table 4.
RJ
11 Connector Pinouts
Pin
RS-232 Signals
8J/RJ11
1
DTR
2
GND
3
TxD
4
RxD
5
DCD
6
Not Connected
7
Not Applicable
8
Not Applicable
Pin 1
Pin 1
Receptacle
1
Plug
Top View
Cable
6
8J/RJ11
