Product List and Pictures
Product List and
Pictures This Hardware Installation document discusses the following serial controllers.
Locating Drivers
and Software
Documentation You can download the latest drivers and software installation documents from the
web site at
http://support.comtrol.com/Download.asp .
RocketPort
Terminology For the purposes of the following discussions, “RocketPort ISA” cards means any
interface type including 4-port RJ45, 8-port RJ11, Quadcable, and Octacable, or 8/
16/32-port model.
These products are referred to as “RocketPort PCI” cards:
• RocketPort PCI-bus boards (any interface type including 4-port RJ45, 8-port
RJ11, Quadcable, Octacable, and 8/16/32-port models)
• RocketPort Plus models
• RocketPort PCI 422 models
• RocketPort Universal PCI-bus boards (any interface type including Quadcable,
Octacable, 8-port low profile, 16/32-port models)
Type Ports Interface Type
DB9
Quadcable
4
This model has four DB9 male connectors for RS-422 serial
port connections. Includes a fanout cable with four standard
DB9 male connectors.
8 8 Requires one 8-port interface module.
DB9
Octacable
8
This model has eight DB9 male connectors for RS-422 serial
port connections. Includes an eight port fanout cable with
standard DB9 male connectors.
Note: The cables and interface modules shipped with this product are described
and illustrated in RocketPort Interfaces on Page 5.

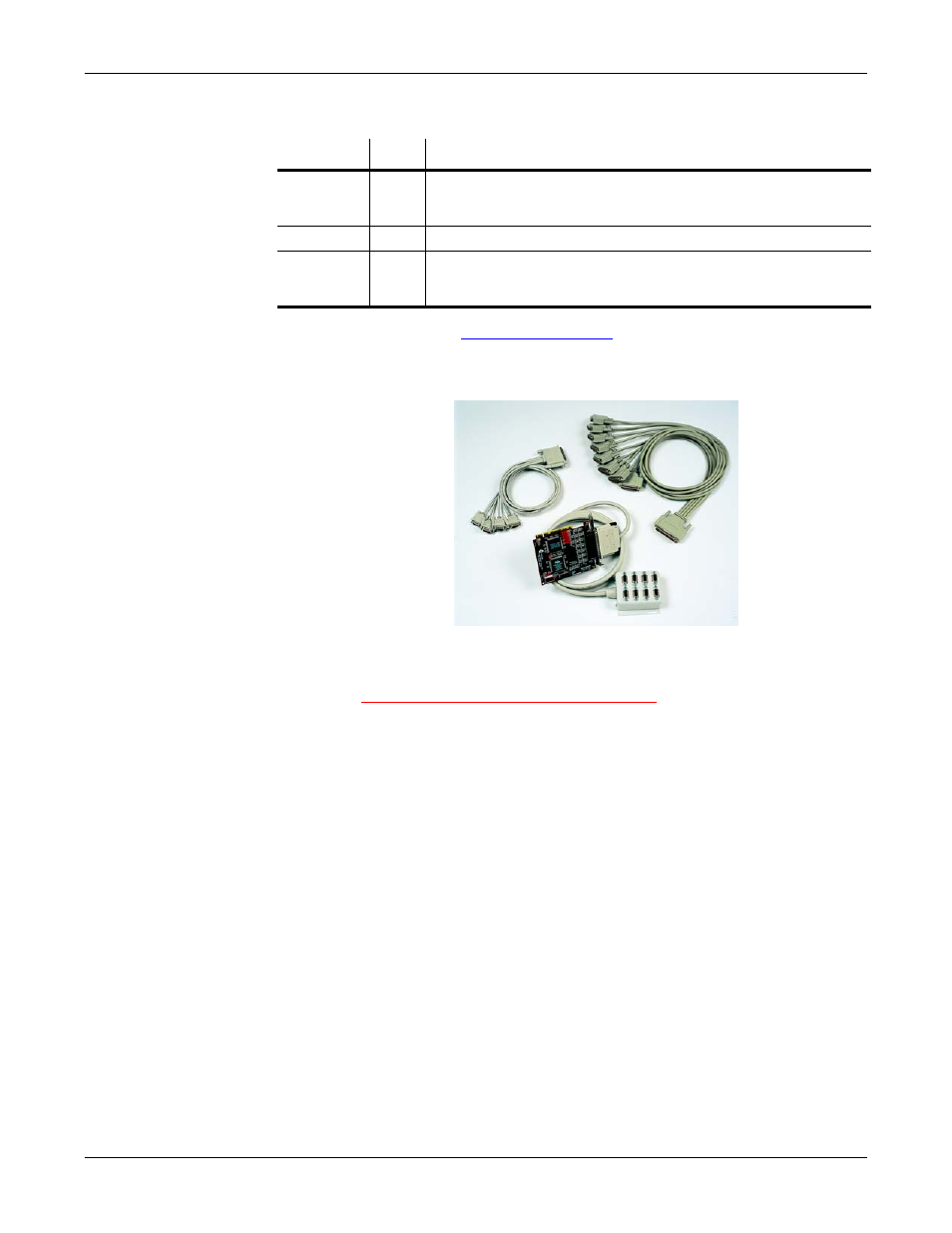

Quadcable with DB9
8 Port with Interface Module
Octacable with PB9
Interface Cables
Interface Cables
