Clippasafe 120 Pressure Fit Gate - Manual (Page 7)

1

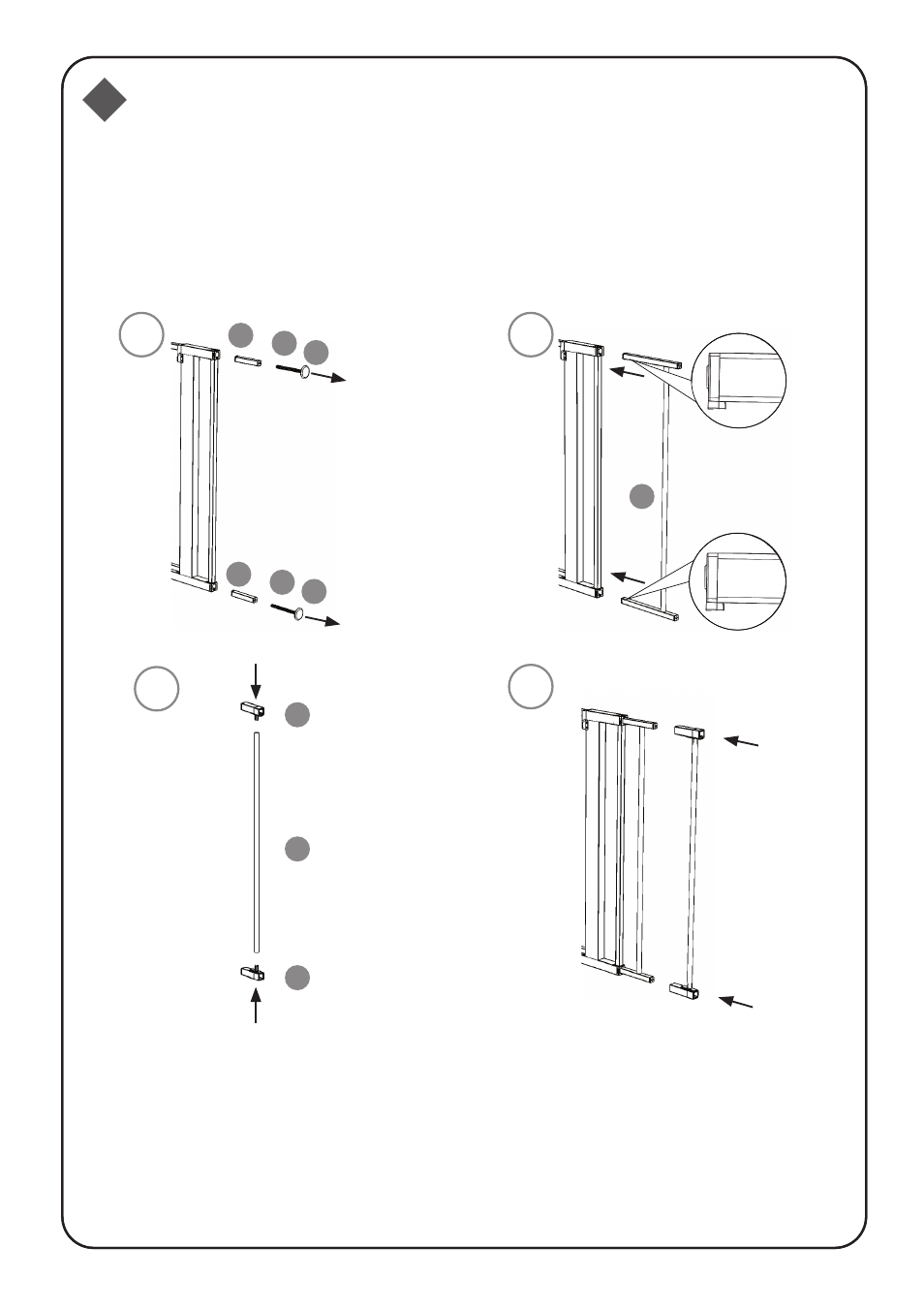

Fitting a 7cm & a 14cm Extension Together
Remove the screw adjusters ‘A’, nuts ‘B’ and the casings ‘C’ from the hinge
side of the gate (1). Insert the long end of the extension ‘I’ directly into the
frame making sure that the notches are facing downwards (2). Place the
tops ‘J’ onto both ends of the slat ‘K’ (3). Place this on the short end of the
extension ‘I’ (4).
Insert the small casings ‘H’ into the open ends of the tops ‘J’, making sure
that the top notch is facing downwards and the bottom notch is facing
upwards (5). Add the extension ‘F’ to the extruding end of the casings ‘H’
(6). Fasten the screw adjusters ‘A’ and nuts ‘B’ into the extension ‘F’ (7).
I
1
C
A
B
C
A
B
2
I
3
J
K
J
4
