VIZIO VF550M User Manual

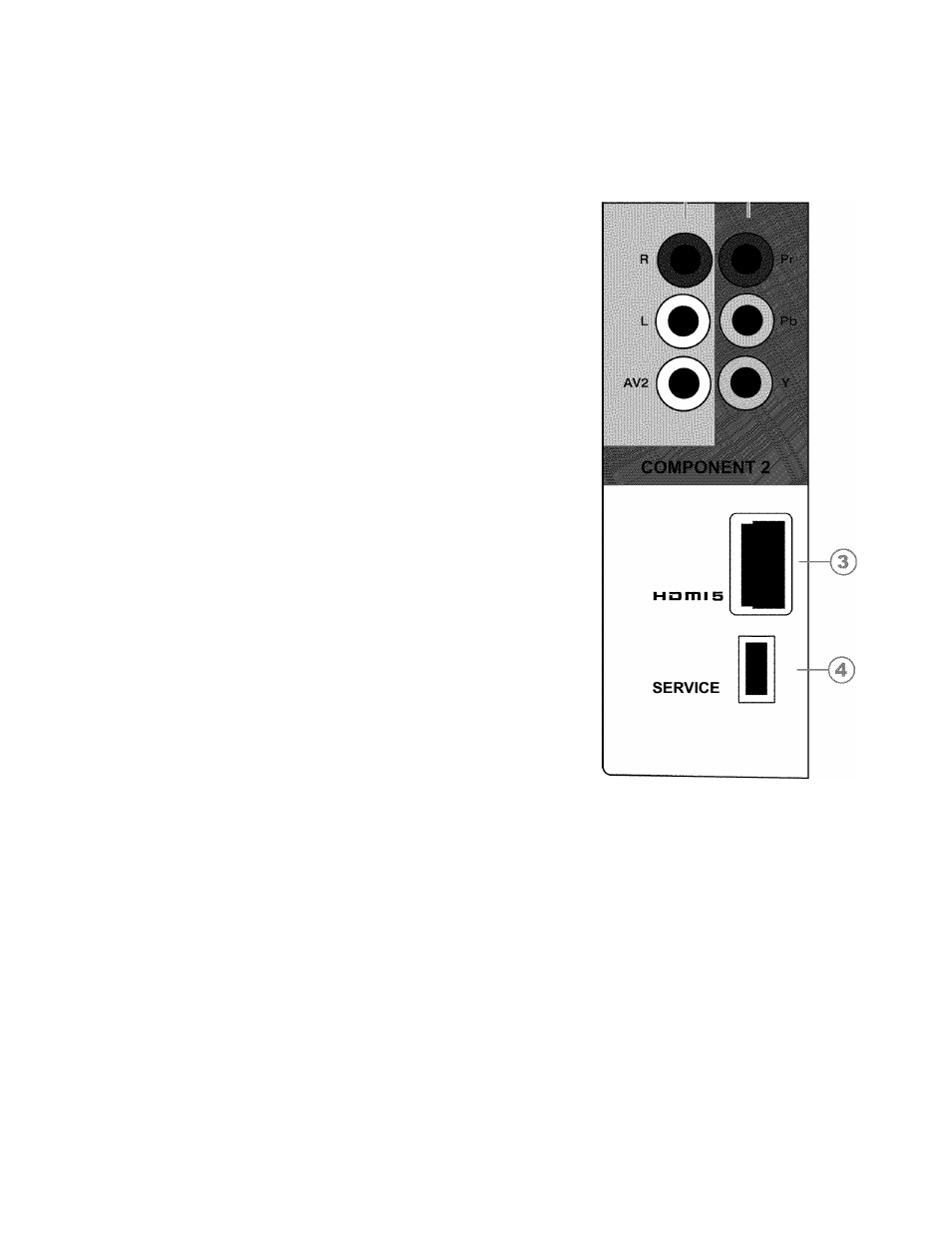

Right-Side Panel Connection
1
. AV2
- Connect the secondary source for composite video
devices, such as a VCR, camcorder, or video game. Use
the white and red connectors to connect the external audio
from the same source, and then use the yellow connector
to connect the external video from the same source.
Note: The red and white audio connectors are shared between
AV2 and CCMPCNENT2.
2. COMPONENT2 (YPb/CbPr/Cr with Audio
UR)
- Connect
the secondary source for component video devices such as
a DVD Player or video game here.
Note: The red and white audio connectors are shared between
AV2 and CCMPCNENT2.
3.
HDMI 5
- Connect another digital video device such as a
DVD multimedia player or set top box through this all digital
connector.
4.
Service
- Do not insert any device into this port unless
instructed by VIZIC Support.
Certified HDMI and HDMI-DVI cables are available for purchase
Version 3/4/2009
11
