Char-Broil SANTA FE 10301569 User Manual

Page 7

background image

M

A

S

N

G

F

K

J

I

H

C

B

D

E

L

L

O

P

R

Q

S

U

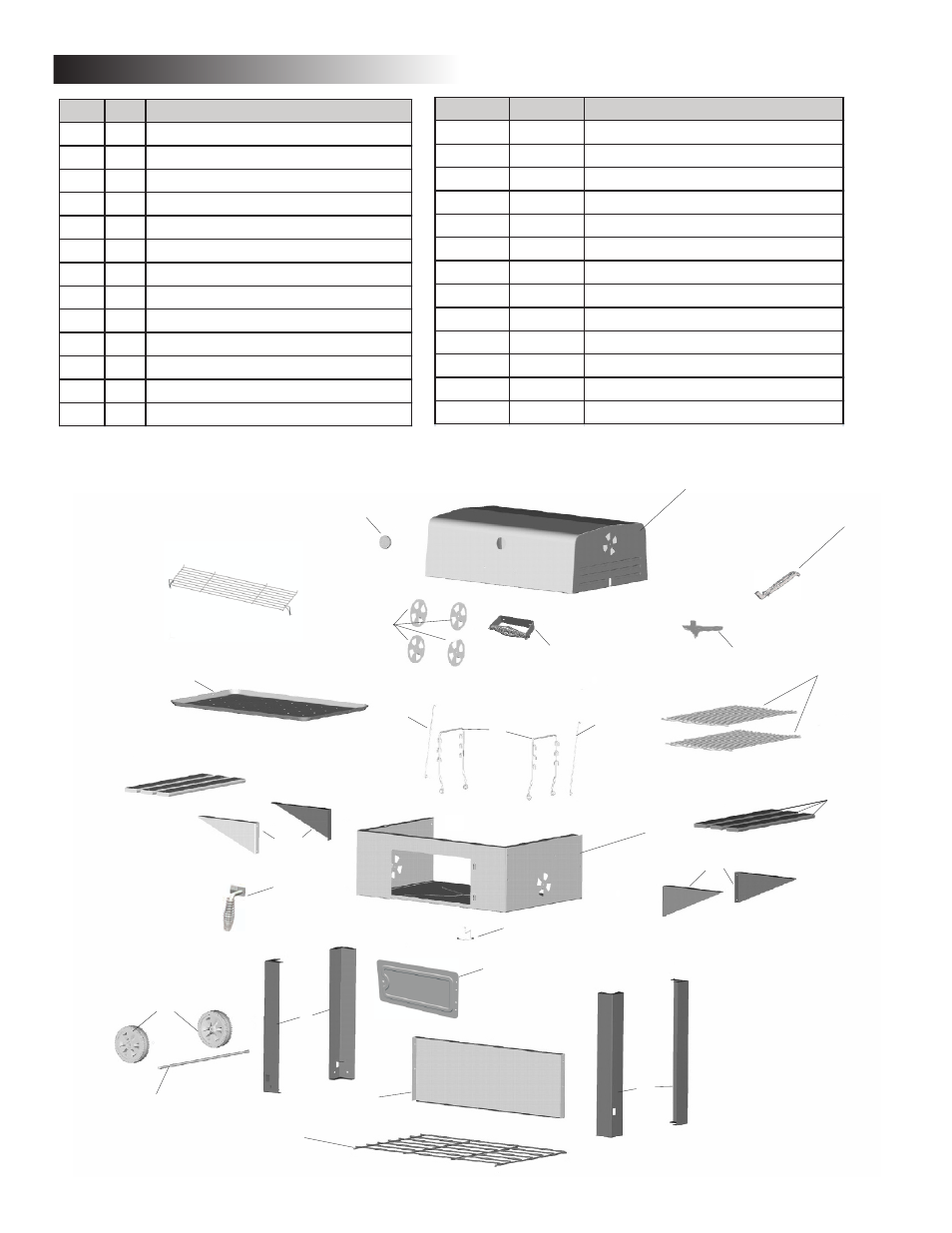

PARTS LIST

T

7

V

W

D

Key Qty Description

A

1

Firebox Assembly

B

1

Rear Panel

C

1

Lid

D

1

Logo Plate

E

1

Grease Can holder

F

2

Long Leg

G

2

Short Leg

H

2

Side Shelf Bracket, LHF/RHR

I

2

Side Shelf Bracket, LHR/RHF

J

4

Daisy Wheel Damper

K

1

Lid Handle

L

2

Door Stop Wire

M

1

Wood Rack

Key

Qty

Description

N

1

Axle

O

2

Wheel

P

2

Ash Pan Hanger

Q

1

Ash Pan

R

2

Cooking Grate

S

6

Side Shelf Slat

T

1

Swing-Away Grate

U

1

Temperature Gauge

V

1

Grate Lifter Tool

W

1

Cleanout Door Handle

…

1

Hardware Pack

…

1

Assembly Instructions, English

…

1

Assembly Instructions, French
