Turbomachinery Package Specification Taurus 70 Compressor Set and Mechanical Drive

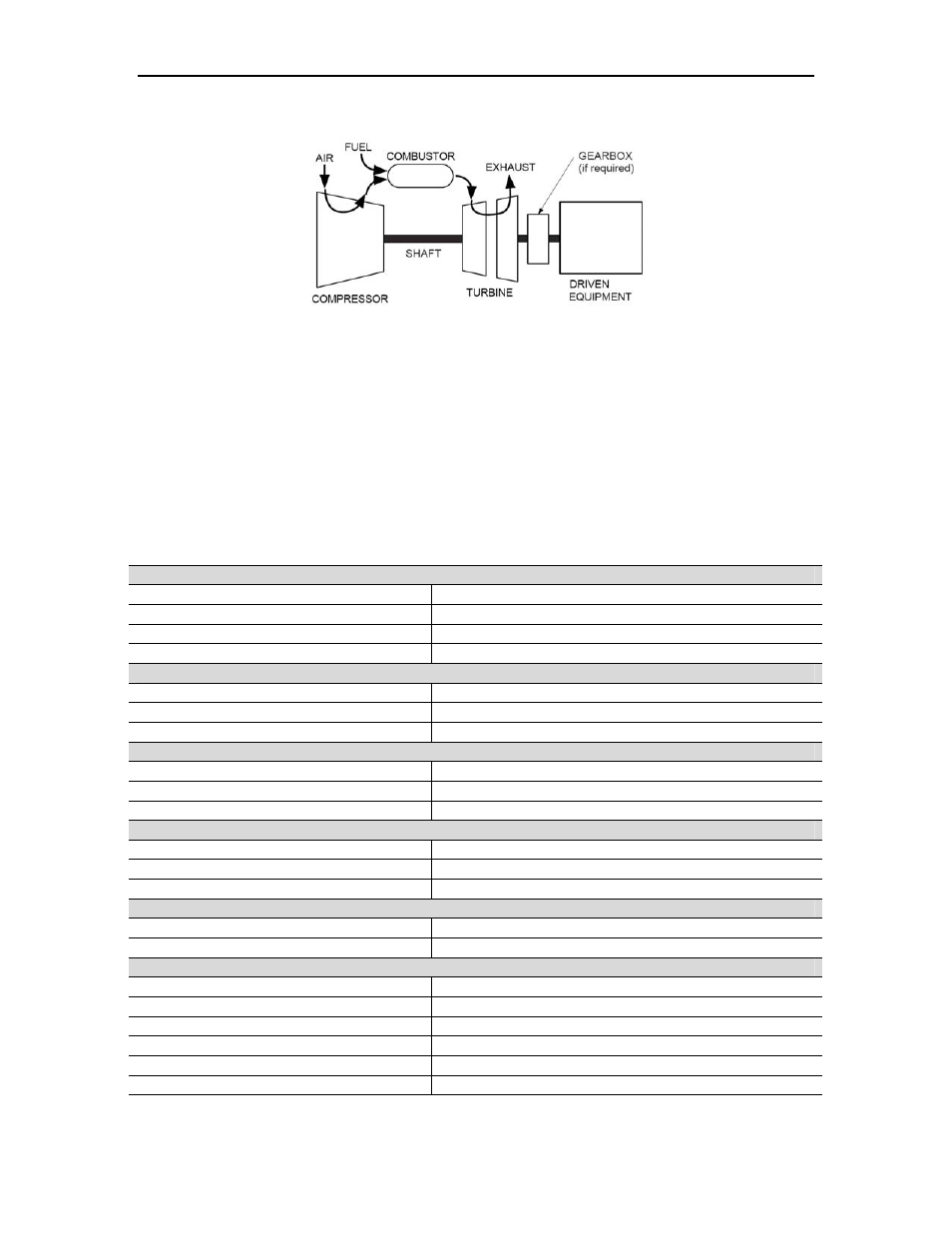

Figure 4. Typical Combustion Process
3.1.2 SoLoNOx Combustion System (Optional)
In addition to the conventional combustion system, Solar’s proprietary SoLoNOx dry
emissions system reduces pollution by limiting the formation of nitrous oxides (NOx),
carbon monoxide (CO), and unburned hydrocarbons (UHC). This system uses lean
premix combustion to lower the maximum flame temperature and reduce pollution
formation. Solar’s engineering staff works with customer’s to meet local permitting
emission requirements.
Table 2. Taurus 70 CSMD Gas Turbine Specifications
Compressor
Type Axial Flow
Number of Stages 14
Compression Ratio 16.5:1
Inlet Air Flow (Nominal) 26.2 kg/sec (57.7 lb/sec)
Combustion Chamber
Type Annular
Ignition Torch
Number of Fuel Injectors
12
Gas Producer Turbine
Type Reaction
Number of Stages
2
Maximum Speed 15,200 rpm
Power Turbine
Type Reaction
Number of Stages
2
Maximum Speed 12,000 rpm
Bearings
Radial 5 Tilt Pad with Proximity Probes
Thrust 2 Tilt Pad with Resistance Temperature Device Probes
Construction Materials
Compressor Case
Forward Section Nodular Iron
Aft Section WC6 Alloy Steel
Combustor Case 410 Stainless Steel
Exhaust Diffuser Nodular Iron
Accessory Gear Housing Ductile Iron
