Fig. 1 — dimensions (ft-in.) 2 – Carrier 38AE014 User Manual
Page 2
LEGEND
A — 1
1
⁄
4
-in. (32) diameter knockout for
5
⁄
8
-in. (16) ODM liquid line connection
B — 1
3
⁄
4
-in. (44.5) diameter knockout for suction line connections of 1
1
⁄
8
in. (28.6)
(38AE012), 1
3
⁄
8
in. (35) (38AE014,016), 1
5
⁄
8
in. (41) (38AKS024)
C —
7
⁄
8
-in. (22.2) diameter knockout for control power
D — 2-in. (50.8) diameter knockout for unit power
NOTES:
1. SERVICE AREAS — Allow 3 ft (914) on both sides
and 2 ft (610) on both ends of unit for servicing.
2. Dimensions in (
) are in millimeters.
Certified dimension drawings are available on request.

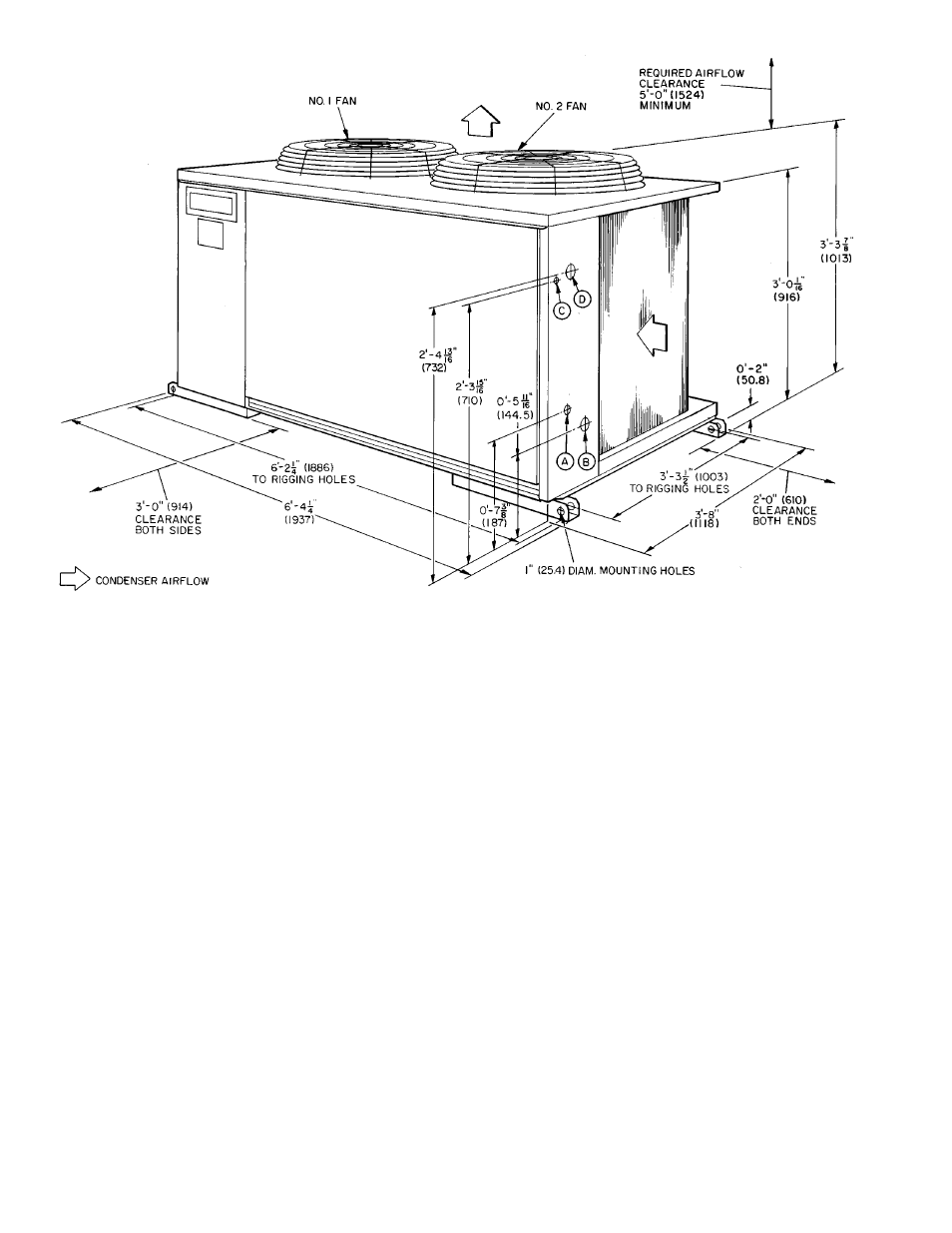

Fig. 1 — Dimensions (ft-in.)
