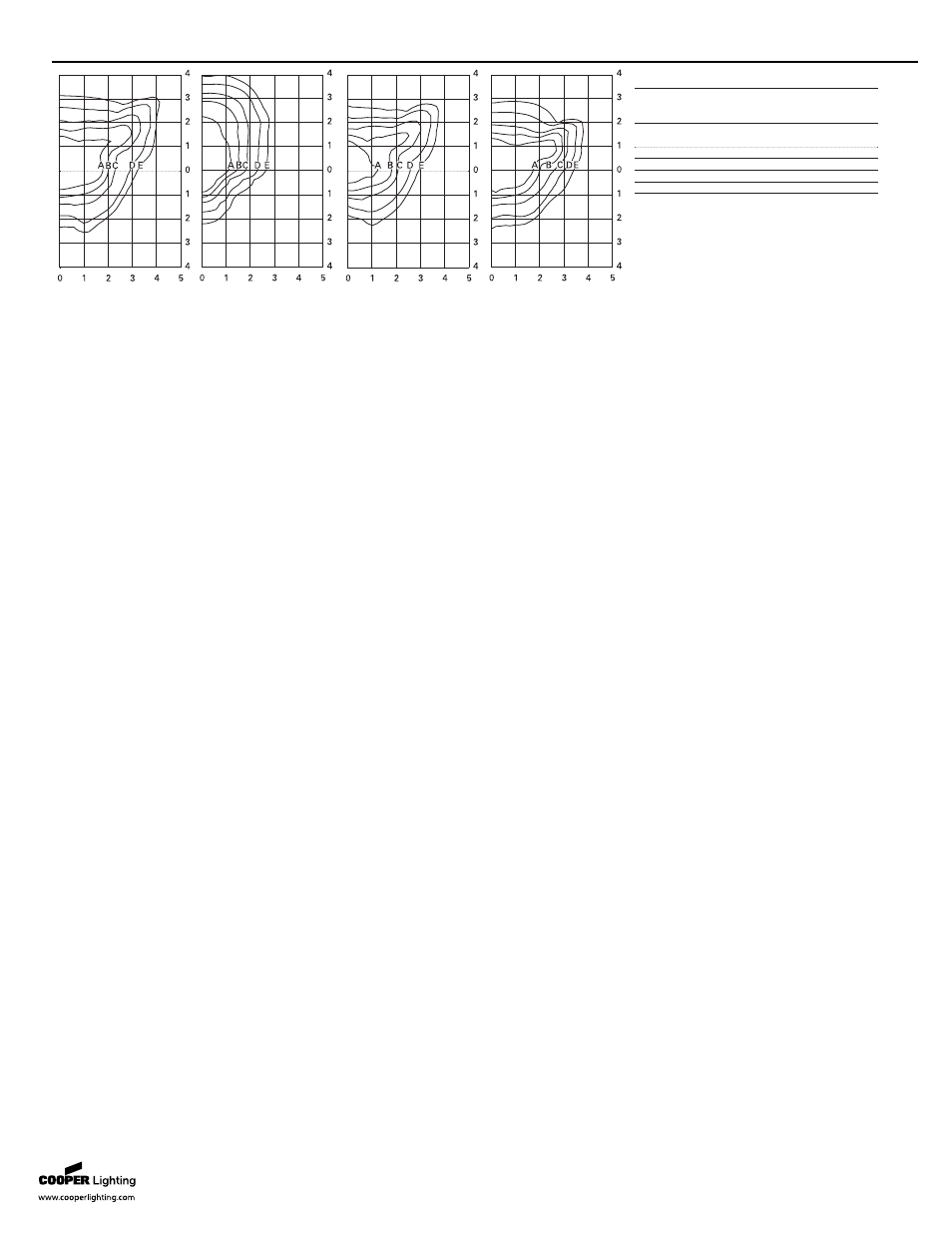

PHOTOMETRICS (Complete IES files available at www.cooperlighting.com)
Fo o t c a n d l e Ta b l e
Select mounting height and read across for footcandle
values of each isofootcandle line. Distance in units of
mounting height.
Mounting
Footcandle Values for
Height Isofootcandle Lines
A
B C D E
20' 3.00 1.50 0.75 0.30 0.15
25' 2.00 1.00 0.50 0.20 0.10
30' 1.38 1.69 0.34 0.13 0.06
P F T 1 2 5 2 3 M (Type III) (Type IV)
250-Watt MH Type III Formed
21,000-Lumen Clear Lamp
P F T 1 4 0 2 3 M (Type II)
400-Watt MH Type II Formed
40,000-Lumen Clear Lamp P F T 1 4 0 2 3 M (Type III)
400-Watt MH Type III Formed
40,000-Lumen Clear Lamp P F T 1 4 0 4 F H
400-Watt HPS Type IV Formed
50,000-Lumen Clear Lamp
