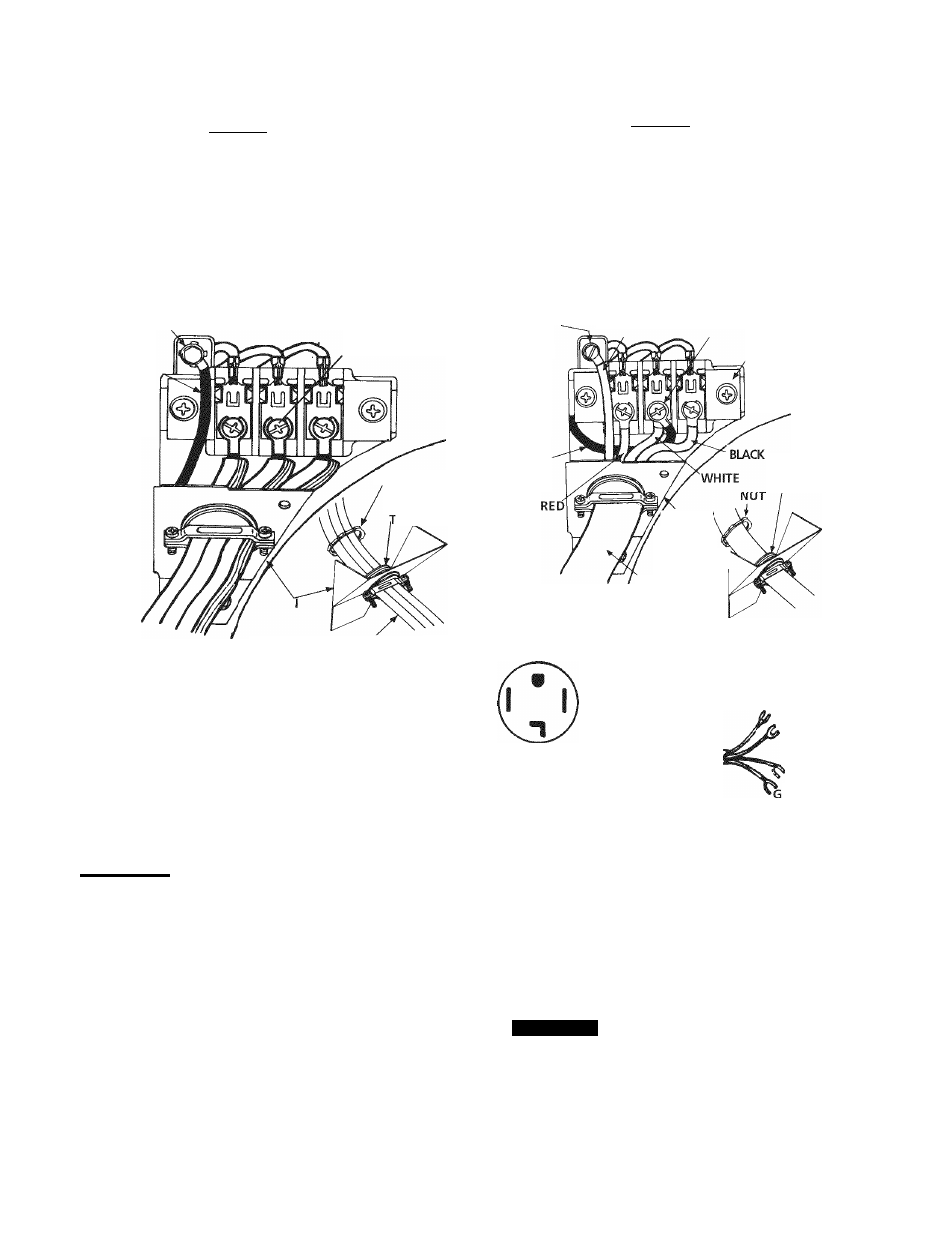

ELECTRICAL CONNECTIONS
FOR 3-WIRE SYSTEM
ELECTRIC Drver
Remove the screws securing the terminal block access cover
and the strain relief mounting bracket located on the back of
the dryer upper corner.
Install a U.L. listed strain relief into the power cord entry hole
of the mounting bracket. Finger tighten the nut only at this
time.
GREEN GROUND
SCREW
NEUTRAL
GROUND
WIRE
SILVER TERMINAL
STRAir
RELIEF
MOUNTING
BRACKET POWER CORD
Thread a U.L. listed 30 amp. power cord, NEMA 10-30 Type
SRDT, through the strain relief.
Attach the power cord neutral (center wire) conductor to the
silver colored center terminal on the terminal block. Tighten
the screw securely.
Attach the remaining two power cord outer conductors to
the outer brass colored terminals on the terminal block. Tighten
both screws securely.
A WARNING Do not make a sharp bend or crimp wiring/
conductor at connections.
Reattach the strain relief mounting bracket to the back of
the dryer with two screws. Tighten screws securely.
Tighten the screws securing the cord restraint firmly against
the power cord.
Tighten the strain relief nut securely so that the strain relief
does not turn.
Reinstall the terminal block cover.
ELECTRICAL CONNECTIONS
FOR 4-WIRE SYSTEM
ELECTRIC Drver
1. Remove the screws securing the terminal block access cover
and the strain relief mounting bracket located on the back of
the dryer upper corner.
2. Install a U.L. listed strain relief in the entry hole of the mounting
bracket. Finger tighten the nut only at this time.
3. Remove the ground wire from the green ground screw located
above the terminal block.
GREEN
GROUND
SCREW
GREEN POWER CORD
GROUND WIRE
SILVER TERMINAL
TERMINAL
BLOCK
NUT
TIGHTEN NUT
TO THESE
HREADS
NEUTRAL
GROUND
WIRE
TIGHTEN NUT
TO THESE
THREADS
'STRAIN
RELIEF
MOUNTING
BRACKET^
POWER
CORD
4. Thread a U.L. listed 30 amp power cord, NEMA 14-30 type
ST or SRDT through the strain relief.
TYPICAL 4
CONDUCTOR
RECEPTACLE
TYPICAL 4
CONDUCTOR CORD
BLACK 240V
WHITE NEUTRAL
RED 240V
REEN GROUND
30 AMP NEMA 14-30 TYPE SRDT OR ST
5. Attach the green power cord ground wire to the cabinet with
the green ground screw.
6. Attach the white (neutral) power cord conductor from the
power cord and the neutral ground wire from the dryer harness
(removed from the ground screw In step 3) to the silver-colored
center terminal on the terminal block. Tighten the screw
securely.
Attach the red and black power cord conductors to the outer
brass colored terminals on the terminal block.
7
WARNING Do not make a sharp bend or crimp wiring/
conductor at the connections.
8
8. Tighten the screws securing the cord restraint firmly against
the power cord.
9. Tighten the strain relief nut securely so the strain relief does
not turn.
10. Reinstall the terminal block access cover.
