INSTALLATION REQUIREMENTS
Gather the required tools and parts before starting installation.
The parts supplied are in the washer drum.
Tools needed for connecting the water inlet hoses
■ Pliers (that open to 1®/i6" [39.5 mm])
■ Flashlight (optional)
Tools needed for installation
■ Open end wrenches 14 mm and 13 mm
■ Level
■ Wood block
■ Ruler or measuring tape

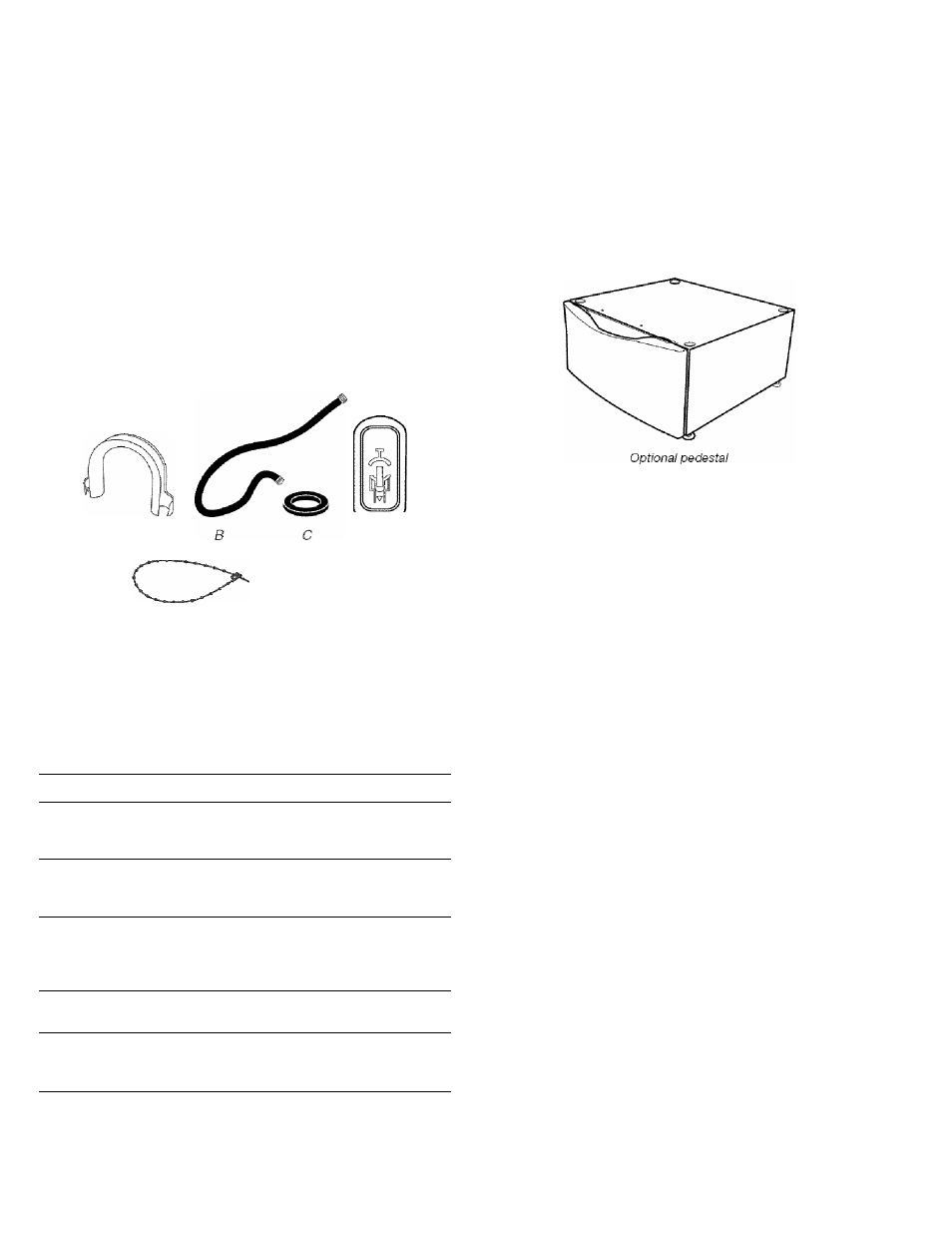

Parts supplied
D
A. U-shaped hose form
B. Water inlet hoses (2)
C. Inlet hose washers (4) D. Transit bolt hole plug (4)
E. Beaded tie strap
Alternate Parts
Parts listed are available from your local Sears store or Sears
Service Center. For further information, please call
1-800-4-MY-HOME® (1 -800-469-4663).
If You Have You Will Need to Buy
Laundry tub or
standpipe taller
than 96" (2.4 m)
Sump pump system (if not already
available)
Overhead sewer Standard 20 gal. (76 L), 30" (76.2 cm) tall
drain tub or utility sink and sump pump
(available from local plumbing suppliers)
Floor drain Siphon break, Part Number 285834;
additional drain hose, Part
Number 8318155; and connector kit, Part
Number 285835
Drain hose too
short 4 ft (1.2 m) drain hose extension kit. Part
Number 285863
Water faucets
beyond reach of fill
hoses 2 longer water fill hoses:
6 ft (1.8 m) Part Number 76314
10 ft (3.0 m) Part Number 350008
Pedestal
You have the option of purchasing pedestals of different heights
separately for this washer. You may select a 10" (25.4 cm) or a
15.5" (39.4 cm) pedestal. The pedestal will add to the total height
of the washer.
To order, call your local Sears store. For further information,
please call 1-800-4-MY-HOME‘" (1-800-469-4663).
Pedestal Height Approximate height Color Model
with washer Number
10" (25.4 cm) 46" (116.8 cm) White 46822
15.5" (39.4 cm) 51.5" (130.8 cm) White 57822
Stack Kit
Are you planning to stack your washer and dryer? To do so, you
will need to purchase a Stack Kit.
To order, call your local Sears store. Ask for the stack kit (Part
Number 8572546). For further information, please call
1-800-4-MY-HOME® (1-800-469-4663). Follow instructions
included with the kit. See “Location Requirements.”
