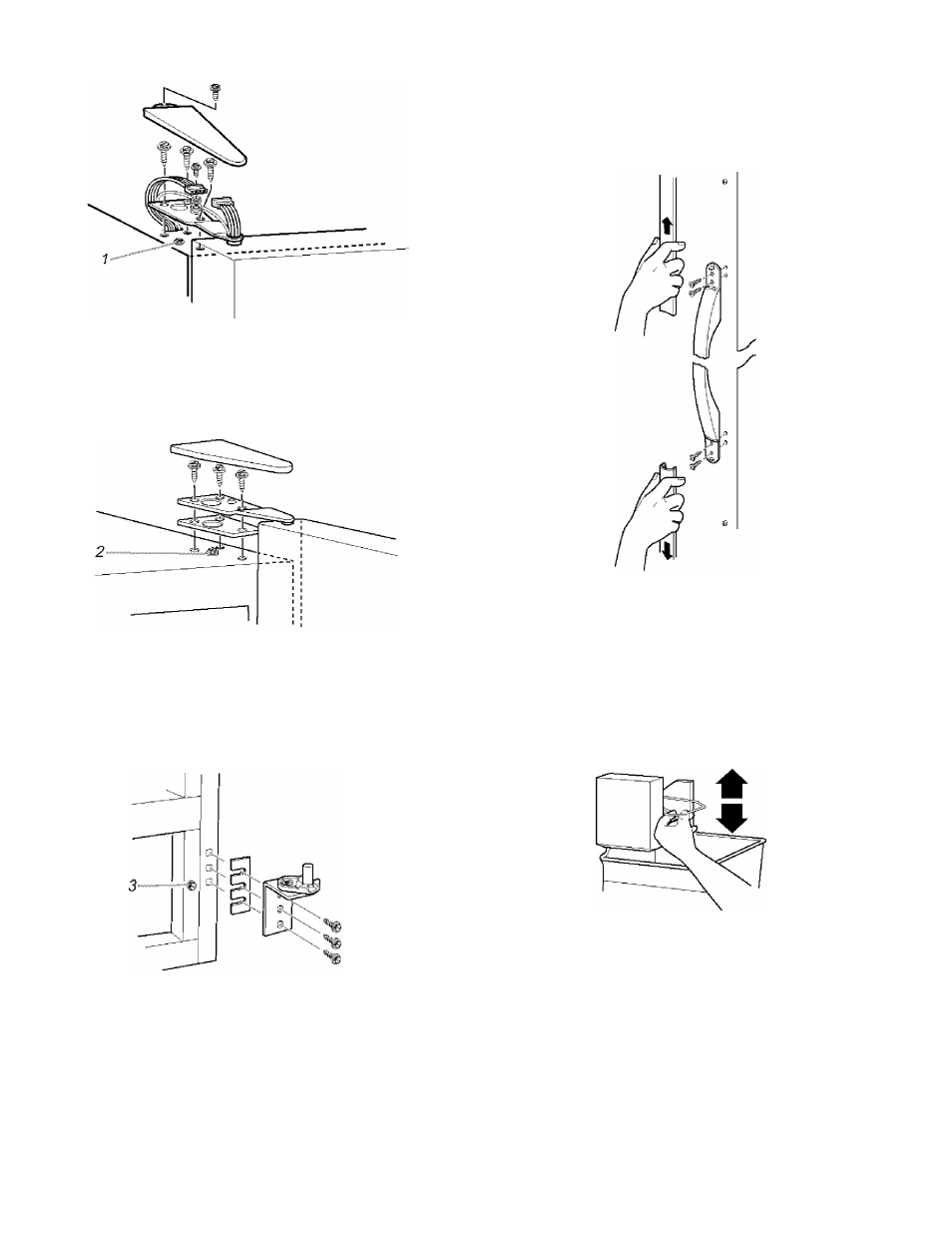

Apply firm pressure with hand on face of trim. Slide top
trim up and bottom trim down away from handle, then lift

off of shoulder screws. Remove screws.

4. Disassemble right top hinge.

■ Remove hinge cover and screws. DO NOT

REMOVE SCREW 2 AS SHOWN IN DIAGRAM.

■ Lift door up off bottom hinge.

5. Remove bottom hinge, if necessary. Both bottom

hinges have similar construction. DO NOT REMOVE
SCREW 3 AS SHOWN IN DIAGRAM.

NOTE: It may not be necessary to remove the bottom
hinge to move refrigerator through a doorway.

PLEASE READ BEFORE INSTALLATION

Immediately after installation, follow the steps below

to make sure that the water system is properly

cleaned.

1. Turn off the ice maker by opening the freezer door and

lifting up the signal arm as shown.

Replace doors.

7. Plug in refrigerator or reconnect power.

2. Flush the water system by dispensing and discarding

2-3 gallons (approximately 6-7 minutes) of water
through the dispenser. This will clean the system and

help clean air from the lines. Additional flushing may be
required in some households.
