It is your responsibility:
• To contact a qualified electrical installer.
• To assure that the electrical installation
is adequate and in conformance with
the National Electrical Code, ANSI/
MFPA 70-latest edition and all local
codes and ordinances.
Copies of the code standards listed
above may be obtained from:
National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
c. MAKE ELECTRICAL
CONNECTION
ELECTRICAL REQUIREMENTS
for your
Benefit
The proper electrical connection
ensures a safe installation that
meets local code requirements.
A three-wire or four-wire, single
phase 120/240-volt, 60-Hz., AC-only,
electrical supply (or three-wire or
four-wire, 120/208-volt if specified on
serial/rating plate) is required on a
separate 30-ampere circuit, fused on
both sides of the line. A time-delay fuse
or circuit breaker is recommended.
This dryer is manufactured with the
3 -wire, frame-grounding conductor
connected to the NEUTRAL (center)
of the wiring harness of the terminal
block. Do not have a fuse in the
neutral or grounding circuit. A fuse
in the neutral or grounding circuit
could result in an electrical shock.
Use a 4-conductor cord when the
dryer is installed in a mobile home or
an area where local codes do not
permit grounding through the neutral.

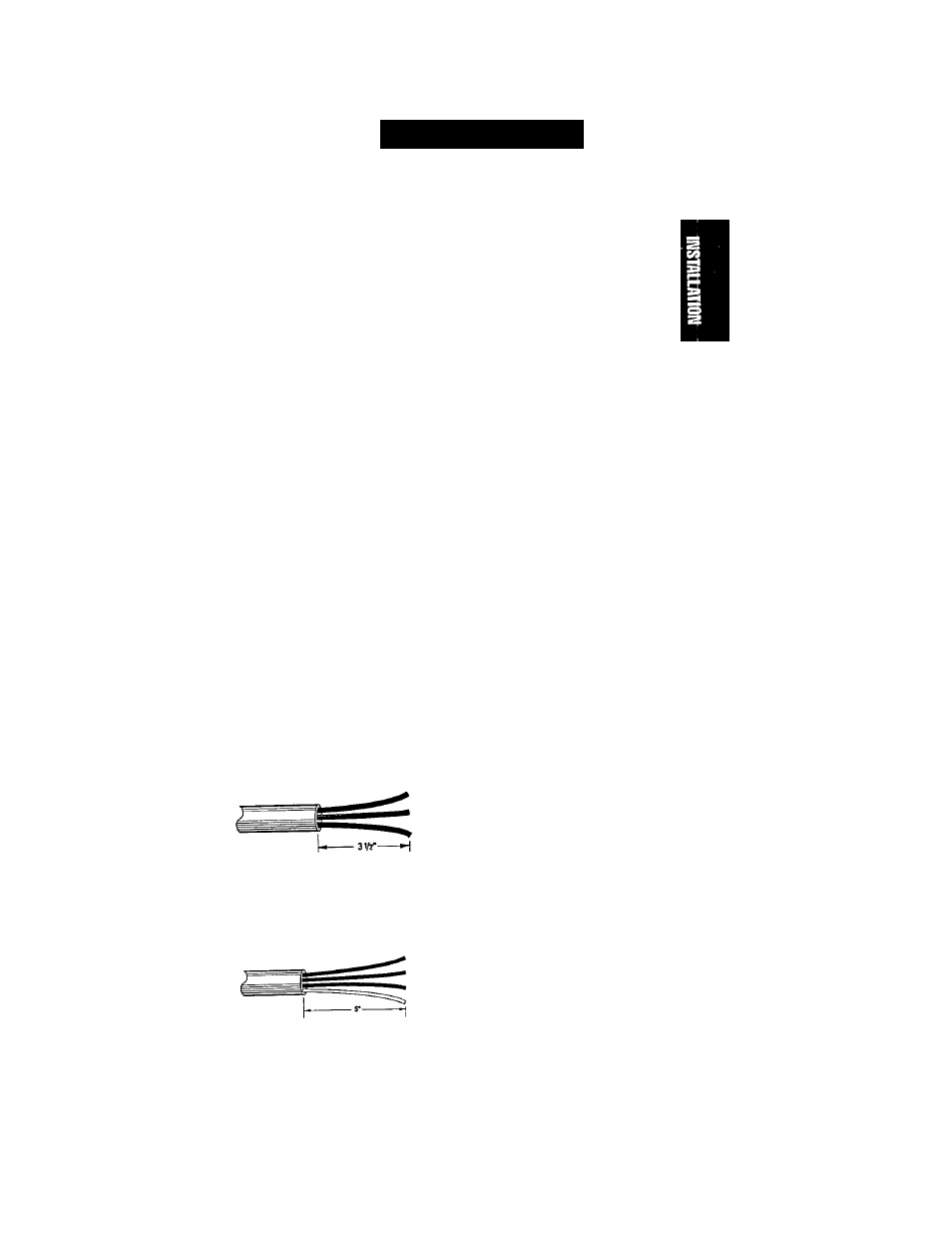

ELECTRICAL CONNECTION OPTIONS
If Your Home Has:
A 3-wire electrical
reîceptacle
(NEMA Type 10-30R)
3-wire direct
A 4-wire electrical
receptacle
(NEMA Type 14-30R)
4-wire direct
And You Will Be
Connecting To:
Go To
Page
A U.L-listed, 120/240-volt
minimum, 30-amp., dryer
power supply cord.*
1 2 - 1 .
A fused disconnect or
circuit breaker box.* 13-11.
A U.L-listed, 120/240-volt
minimum, 30-amp., dryer
power supply cord.
16-
A fused disconnect or
circuit breaker box. 18-IV.
*lf local codes do not permit the connection of a frame-grounding conductor
to the neutral wire, see the instructions on page 15.
11
