- WHERE TO INSTALL THE RO SYSTEM -

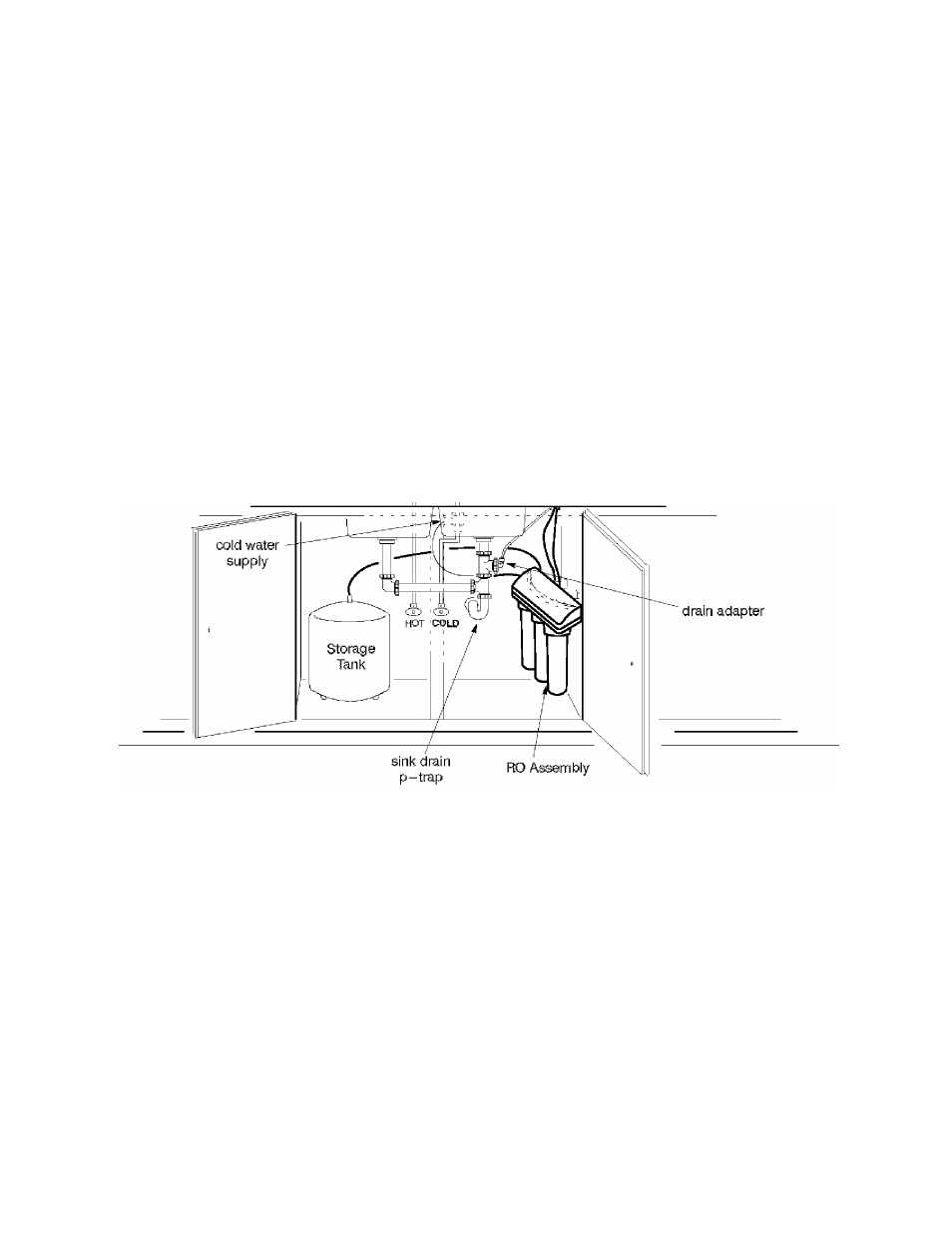

The RO assembly and storage tank is designed for
installation under the sink, usually in the kitchen or
bathroom. The RO assembly mounts on a wall sur
face, or can lay on the cabinet floor next to the storage
tank. Hanger washers and wood screws are included
for cabinet wall mounting. The RO product water
faucet installs on the sink, or on the countertop next
to the sink (pages 6 and 7).
Note: Tubing lengths allow for the removal of the
assembly from the hanger washers for servicing. If
tubing lengths are shortened for neater appear
ance, it may be necessary to keep the assembly on
the hanger washers for service.
You can also locate the RO assembly and storage tank
FiG-2
in any
remote location
from the faucet, observing
safety guides on page 2. You do need a nearby water
source and drain point (see page 17).
Water Supply:
To provide supply water to the RO
system inlet use the included feed supply fitting or
install pipe fittings for tubing connection, as typical
ly shown on page 5.
Drain Point:
A suitable drain point is needed for re
ject water from the RO membrane. A floor drain,
laundry tub, standpipe, sump, etc., is preferred, as
shown in the remote locations drawing, page 17. A
sink p-trap drain adaptor is included to install where
codes permit, as an optional drain point (page 6).
RO product
water faucet
V-
— TOOLS AND MATERIALS NEEDED —
►
adjustable wrench, standard pliers, and larger
adjustable jaw pliers or pipe wrench to fit sink drain
► slotted and Phillips head screwdrivers
^ plumbers putty
^ electric drill and bits, if hole is needed for the RO
faucet, page 6 and 7
STEP 1: - Install Cold Water Supply fittings - page
5
STEP 2: - Install Drain Adapter - page 6
STEP 3: - Install Faucet - pages 6 and 7
- 6 STEPS TO INSTALL -
STEP 4: - Install RO Assembly - page 7
STEPS: - Install Storage Tank, Make Remaining Tub
ing Connections - page 8
STEP 6: - Sanitizing, Pressure Testing, Purging -
page 9
Problems, Questions? Call 1 -800-426-9345 Kenmore Water Une
