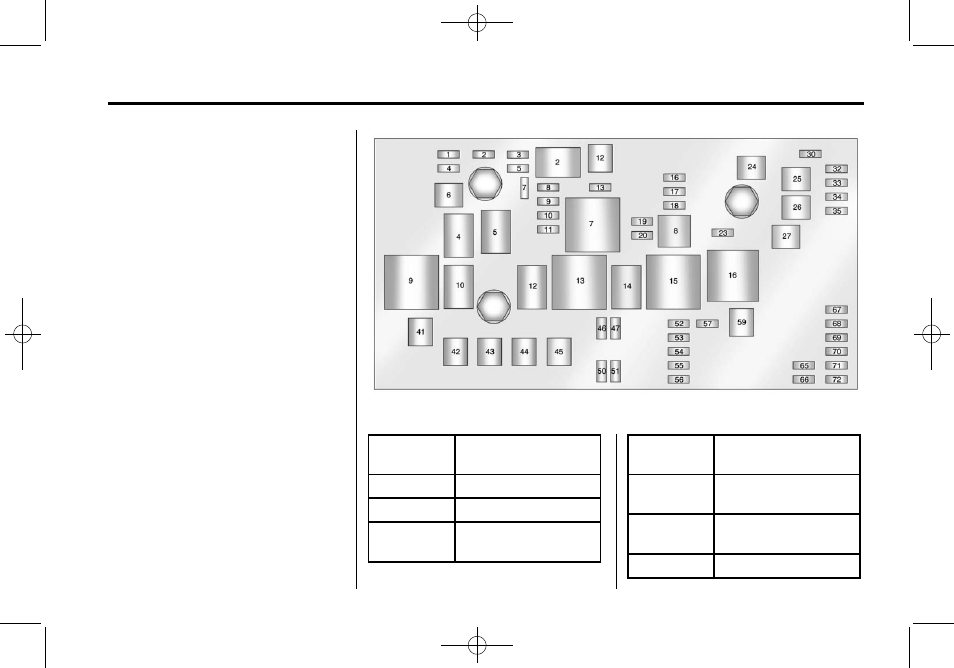

Page 351: Vehicle care 9-45
Black plate (45,1)
Cadillac SRX Owner Manual - 2010
Vehicle Care
9-45
To identify and check fuses, circuit
breakers, and relays, see Engine
Compartment Fuse Block on
page 9‑45 and Rear Compartment
Fuse Block on page 9‑49.
Engine Compartment
Fuse Block
To remove the fuse block cover,
press the clips on the cover and lift
it straight up.
The vehicle might not have all the
fuses and features listed.
Notice: Spilling liquid on any
electrical component on the
vehicle may damage it. Always
keep the covers on any electrical
component.
Engine Compartment Fuse Block
J-Case
Fuses
Usage
6
Wiper
12
Vacuum Pump
24
Anitlock Brake
System Pump
J-Case
Fuses
Usage
25
Rear Electrical
Center 1
26
Rear Electrical
Center 2
27
Not Used
