Installation Instructions
IT]
REMOVE PACKAGING MATERIALS
Failure to remove packaging materials could result in damage to the appliance. Remove all pocking ports from
oven, rocks, and heating elements. Remove protective film and labels on the outer door and control panel.
Also remove plastic on trims and panel and all tape around the oven. Open oven door and remove literature
pack and oven racks. Remove the bottom trim from the side of the oven. It will be installed at the end of the
installation process. The trim is wrapped separately in a plastic bag which will also contain the 4 screws to
secure the bottom trim and the 2 shoulder screws used to secure the product to the cabinet.

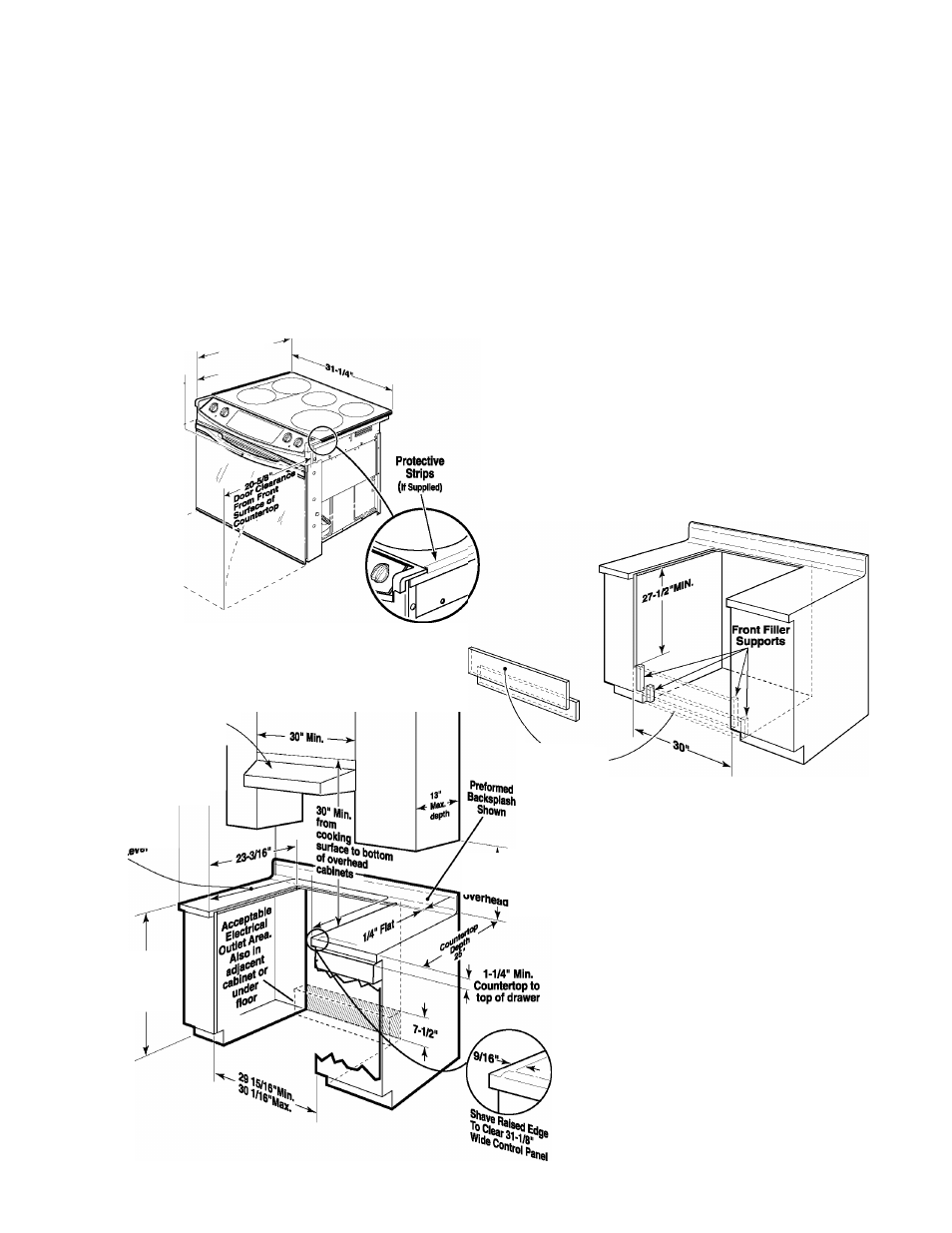

IT] PREPARING THE OPENING (FOR INDOOR USE ONLY)
Overall Depth
261/2"
NOTE: Drop-In Ranges are designed to hang
from the countertop only. Do not install on a
platform or support rails.
Follow Instructioris packaged
with alternate appliances. ^
^ min. dim. must be maintained
“»hreen cooking aurtace and
undeiside of appliance)
- 6" Min.
^«»mWaiis
"®®ommended
itin"'!!!.
For
op*
III»-
inÿ^^SPould
.Flats
distance
-
-2Sii36»"
Front
Cabinet Fiiier
(if Required)
3S frof
g»
Allow 30" minimum clearance
between surface units and bottom
of unprotected wood or metal
cabinet. Allow a 24" minimum
when bottom of wood or metal is
protected by no less than 1/4" thick
flame retardant millboard covered
with not less than No 28 MSG sheet
metal (.015"), .015" thick stainless
steel, .024" aluminum or .020"
copper.
