5

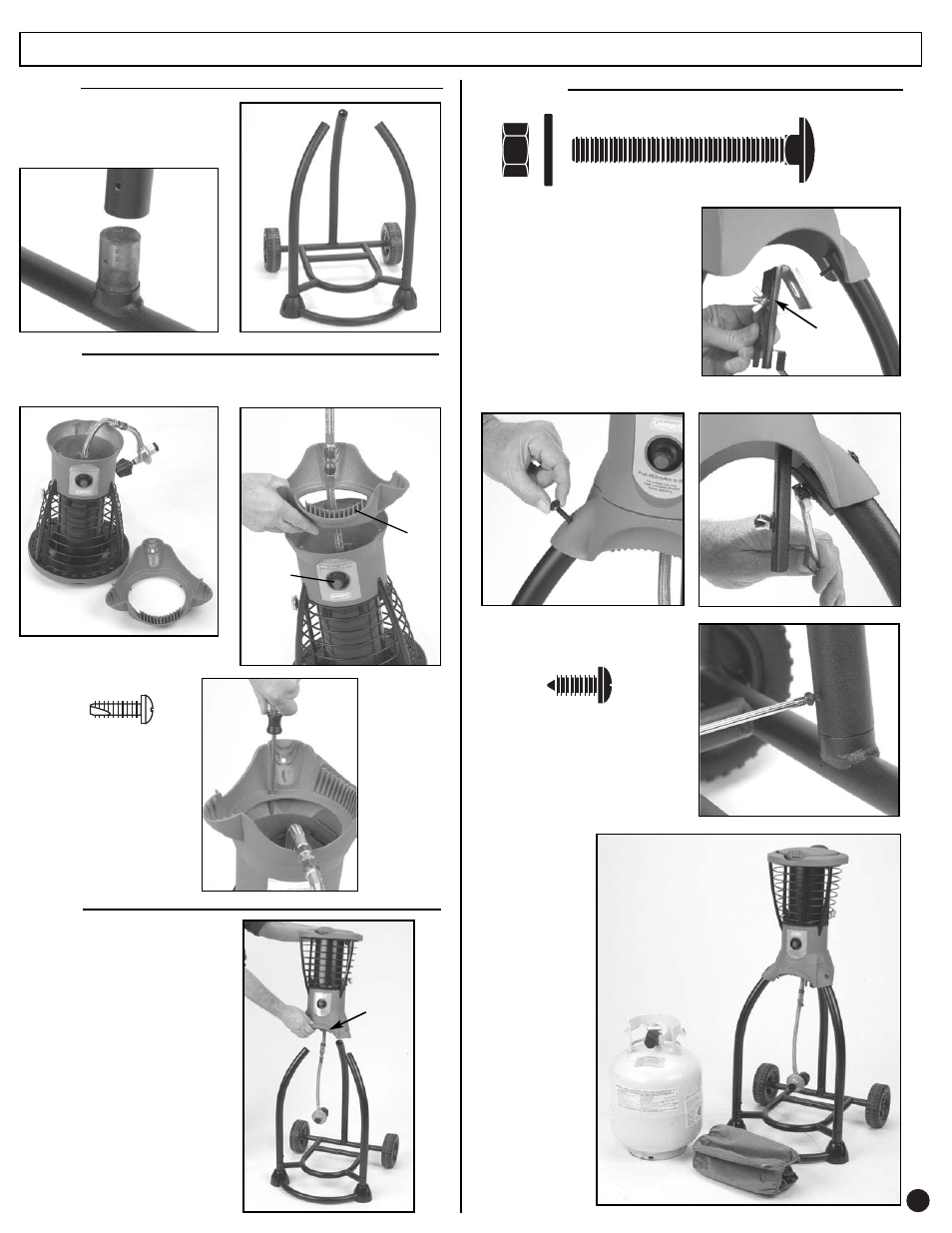

Assembly

cont.

■ Turn the Base over.

■ Install legs to base. All Legs are

identical.

■ Do not install screws until Step 7.

■ Install Retaining Screws at

bottom of Legs.

Step 5

■ Unit is now pre-

pared for tank
installation.

■ Turn Head Assembly over while

holding lid closed.

■ Set Head Assembly on legs with

Handle positioned as shown.

Step 7

cont.

Step 6

■ Turn Head Assembly over while

holding Lid closed.

■ Attach Collar to Head Assembly.

■ Align ribs on Collar with Ignitor.

■ Install screws and tighten.

Ignitor

Ribs

on

Collar

■ Install Tank Retainer at Leg

position opposite the Handle Grip.

Tank

Retainer

Handle

Grip

(Actual size)

(Actual size)

(Actual size)

Step 7

■ Install Carriage Bolts, Washers, Nuts.

■ Tighten Retaining Screws and

Nut on the Tank Retainer.
