Coleman Monotana 9279B147 - Manual

Connect Frame to Tent
– Locate the pin & ring systems on
either side of the front door and the
corresponding pin & rings on the back
side of tent.
– Insert one end of black frame pole
onto pin & ring system on tent stake
loop on either side of front door. (illus. 3)
– Go to opposite end of pole diagonally
from starting point and gradually apply
pressure to the pole forming an arch
until you are able to insert the pin into
pole end.
– Repeat for second pole.
– Attach tent frame clips to poles.
MONTANA ™ 14’x7’

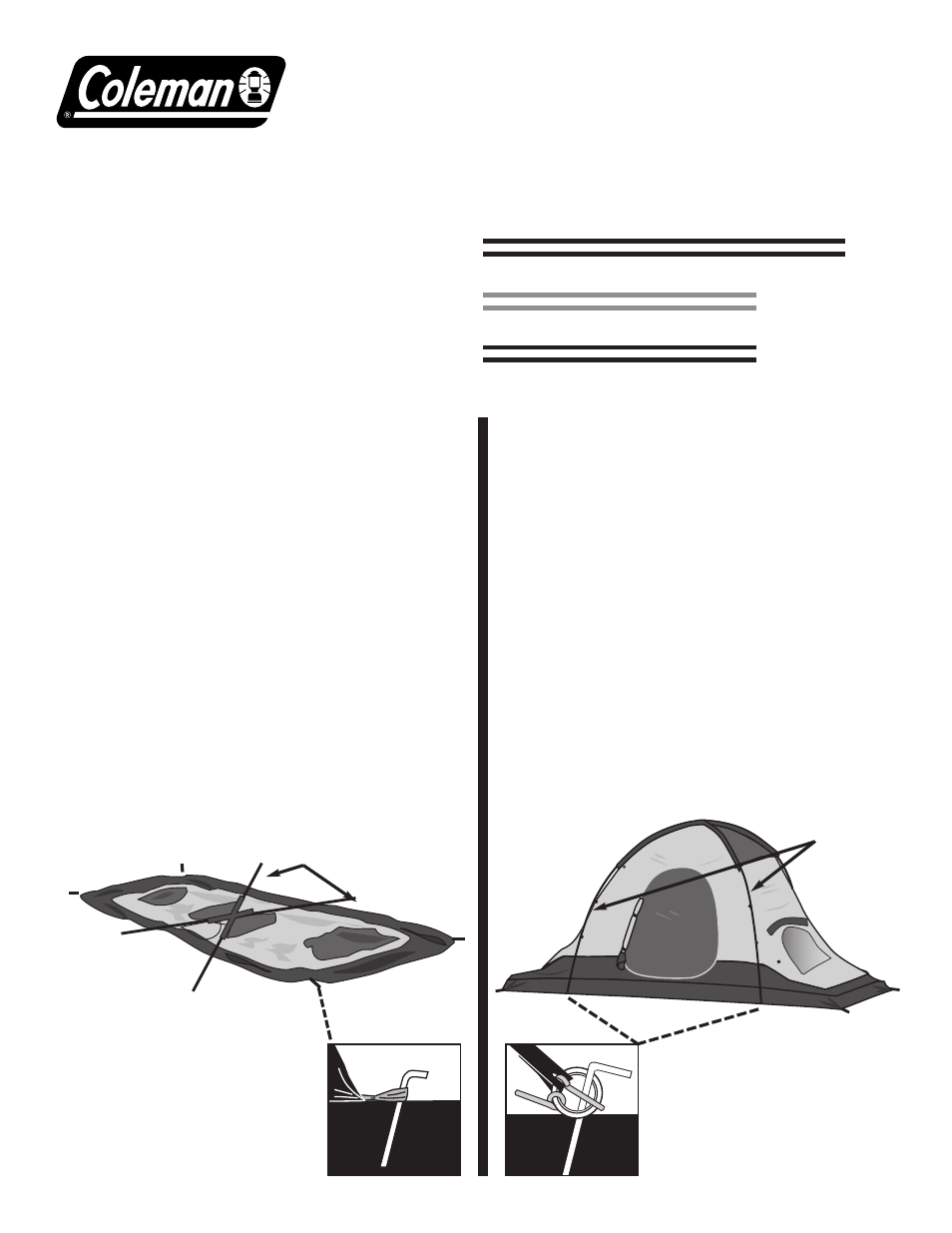

1 Layout & Positioning
of Tent, Pole Assembly
– Layout and position tent with door
facing desired direction. (illus. 1)
– Unzip door.
– Stake down tent corners, using the
tent stake loops. Keep the floor taut.
(illus. 2)
– Assemble all poles by interlocking
shock-corded poles.
– Insert the black poles into center pole
sleeves. The poles should cross
forming an “X” in the middle of tent.
(illus. 1)
2
When You Are Ready
To Set Up Your Tent
– Select a level campsite clear of
rocks, branches and other hard or
sharp objects.
– Do not set up your tent under trees.
– For best results in windy conditions,
position the end of tent into the wind.
(2) Side Tent Poles
(Grey)
Rainfly Part No.
9279B3491
(2) Main Tent Poles
(Black)
POLE ASSEMBLY PARTS
Front door
Instructions apply to Part Number 9279B147
illus. 1
illus. 2 Tent
stake through
stake loop
illus. 4
Center section upright
Part No. 9279B3451
Part No. 9279B3461
illus. 3
Pin & ring system located
on the front & rear of tent
Black poles
Black poles
(2) Rainfly Poles Part No. 9279B3481
