22
❏

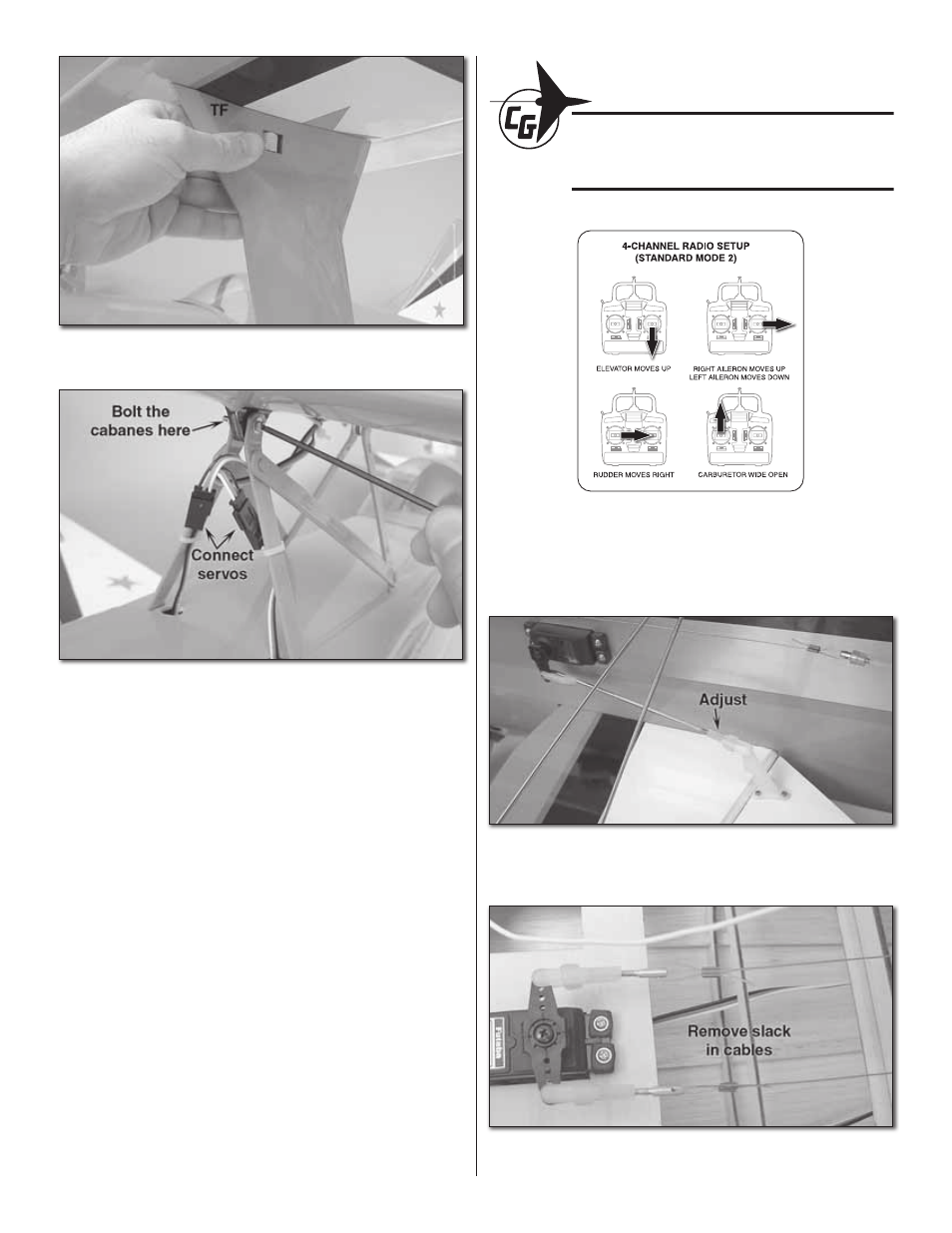

9. Set the top wing in position and thread the interplane
struts into the top wing fi nger-tight.
❏
10. Bolt the top wing to the cabane struts using the two (2)
4-40 x 3/4" [19mm] bolts, two (2) 4-40 self-locking nuts, and
two (2) #4 washers. Place the washers under the bolt heads.
❏
11. Connect your upper wing servo wires.
SETTING CONTROL THROWS
& DIRECTION
❏
1. Turn your radio on and neutralize all of your trims.
Check to see that your controls are operating in the correct
direction by standing behind the model and moving the sticks.
Reverse any servos using the servo reversing switches on
your radio.
❏
2. Neutralize (center) all control surfaces by adjusting the
pushrod lengths at the clevises. Install the silicone retainers
and check for free travel of each control surface.
❏
3. Pre-tension your rudder’s pull-pull cable system by
adjusting the clevises at the rudder. Keep the servo centered
