Carl Goldberg GPMA1966 Tiger 2 ARF User Manual
Page 6

6

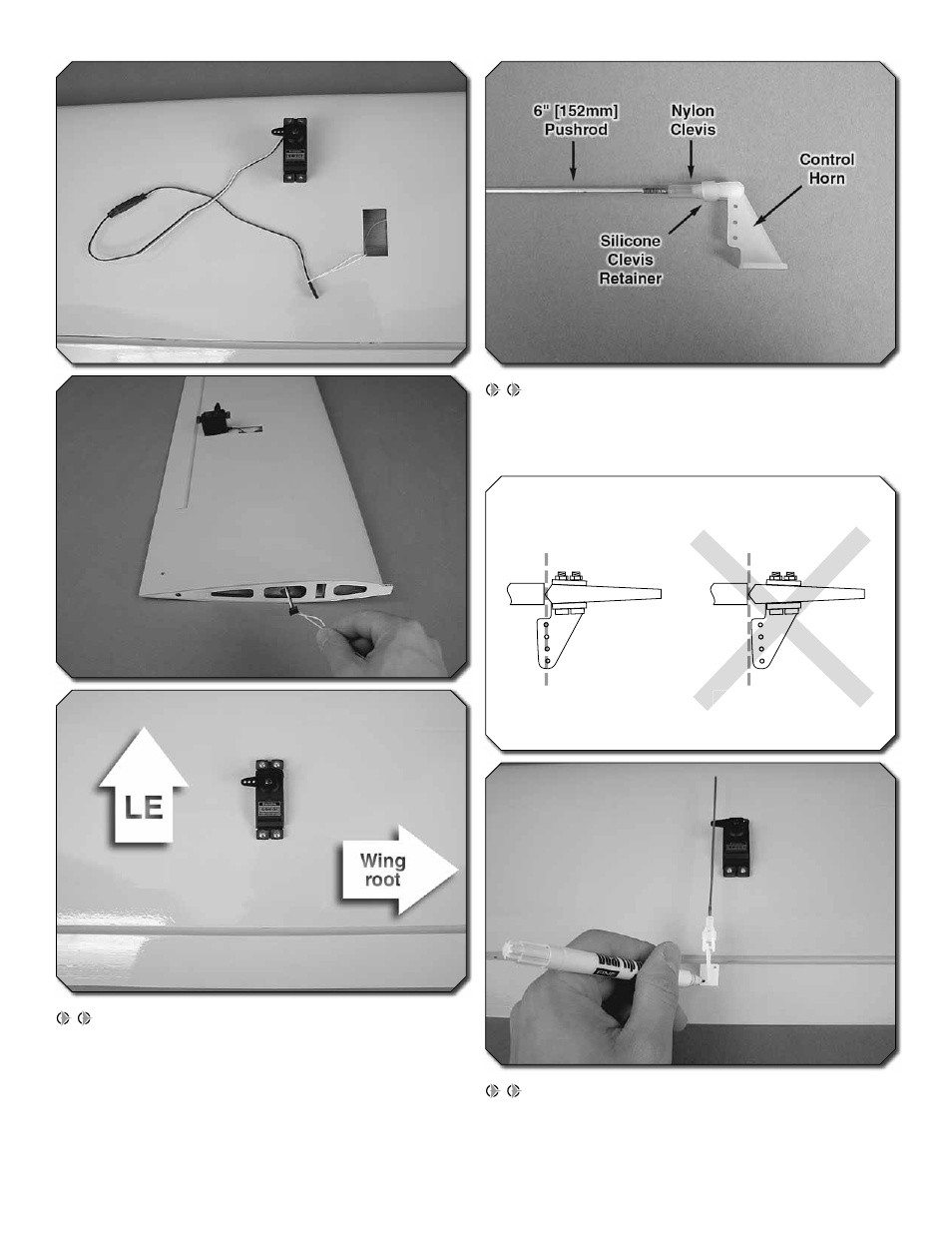

4. Use the string taped inside the aileron servo bay to
pull the servo lead through the wing ribs. Fit the servo into
the servo bay with the spline toward the LE of the wing. Drill
1/16" [1.6mm] holes through the mounting tabs on the servo
case into the wing. Thread a servo mounting screw (included
with the servo) into each hole and back it out. Apply a drop
of thin CA to each hole to harden the wood. When the CA
has dried, install the servo using the hardware supplied with
the servo.
5. Thread a nylon clevis 20 complete turns onto a
6" [152mm] pushrod. Slide a silicone clevis retainer onto
the clevis and connect the clevis to the outer hole of a
control horn.
Hinge Line
Hinge Line
CORRECT
INCORRECT
Hi
6. Position the control horn onto the aileron using the
position of the servo arm as a guide. Align the holes in the
control horns directly over the aileron hinge line and mark
the location of the control horn mounting holes.
