7

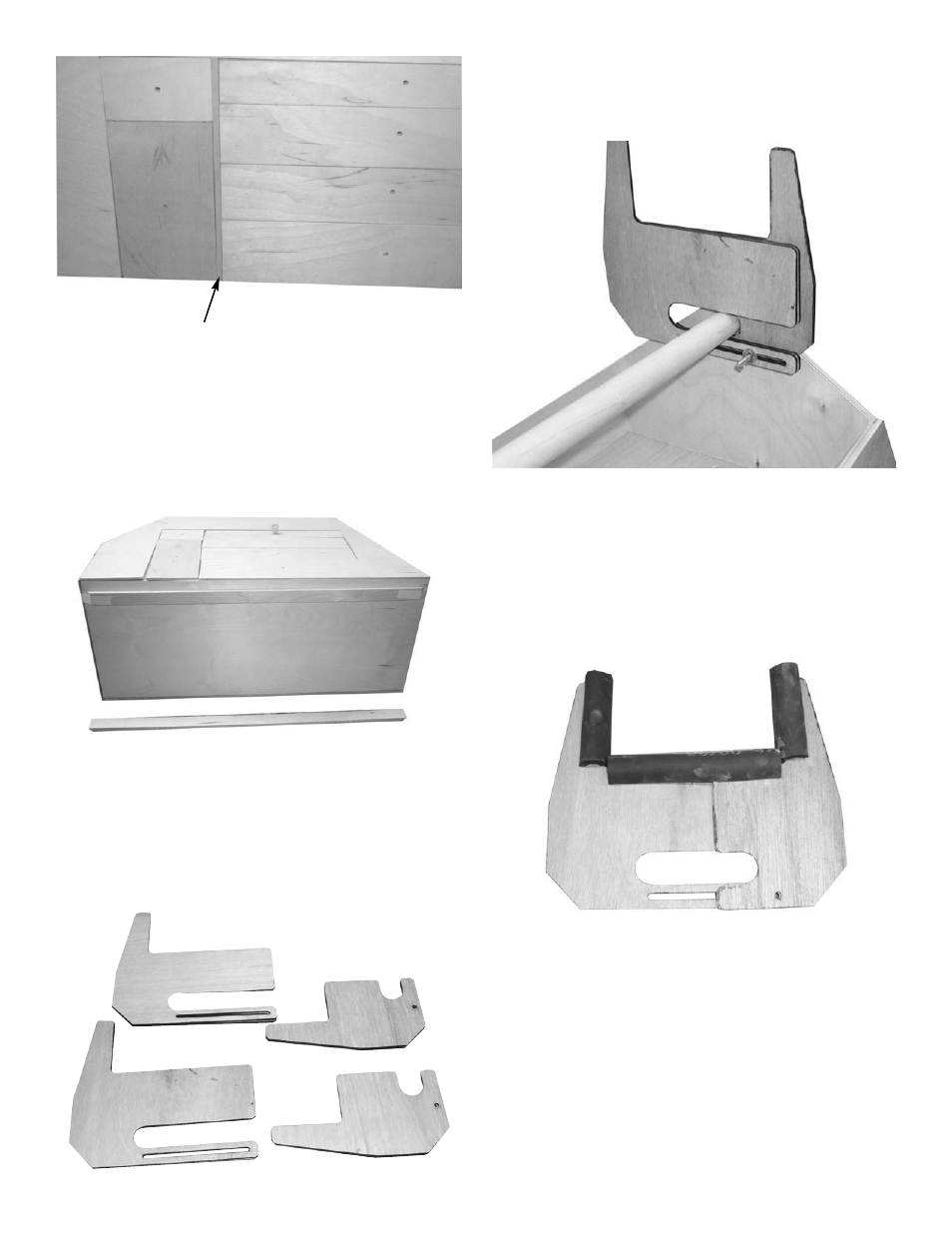

16. † After the drawers are installed you will need
to install the drawer divider strip between the two
side drawers and the four main drawers. It is a piece
of 5mm x 1/4””x9-7/8”” and glues to the face of the
drawer divider.
Drawer divider strip
17. † Two strip of 9mmx1”x25” are provided for
runners on the bottom of the box to space it off the
ground. Glue to bottom of box approximately 1” in
from front and back and centered length wise.
18. † The cradles are make by laminating two
1/8”pieces of each cradle part together.
19. † After the parts are laminated, install around
the handle and insert the #10x1-1/4” bolt with a #10
washer on each side and secure with the #10 wing
nut. By loosening the wing nut the cradle can be
adjusted in width.
20. † Locate the cradle foam and cut into two equal
length pieces. Using a sharp knife or scissors. split
the foam on one side down the entire length. The
foam can now be installed on the cradle openings to
protect your model.
