Carl Goldberg GBGA1075 - Manual (Page 7)

7

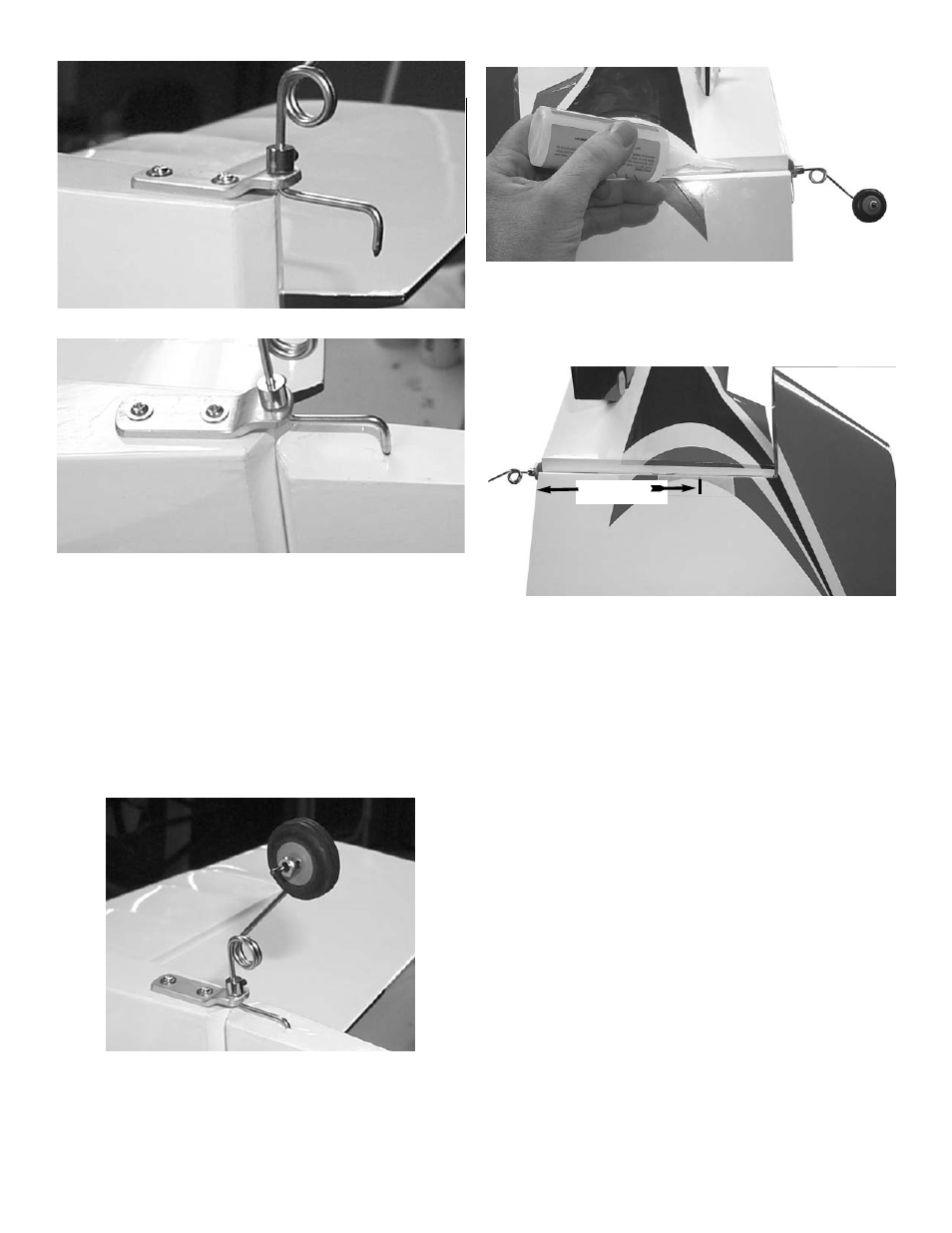

3. Place tailwheel on the bottom of the fuselage
so that the wire is flush with the back of the
fuselage and centered on the bottom.
Drill two 1/16” holes in the location of the
two mounting holes and install the tail wheel
using the 2mm screws.
6. Locate the rudder horn 5” from the bottom
edge of the rudder on the left side. Mark the
holes and drill using 5/64” drill as was done with
the elevator. Mount the horn using the 2-56 x 1”
bolts and nylon plate. Twist the control horn so
that it is facing the rudder servo hole.
5 inches
4. Mark the location of the tail wheel wire on the
rudder and drill a 5/64” hole into the rudder to
accept the tail wheel wire.
5. using pins to center the hinges as was done
with the elevators, install the rudder.
Deflect to full throw and glue the hinges in place
using thin CA.
