13

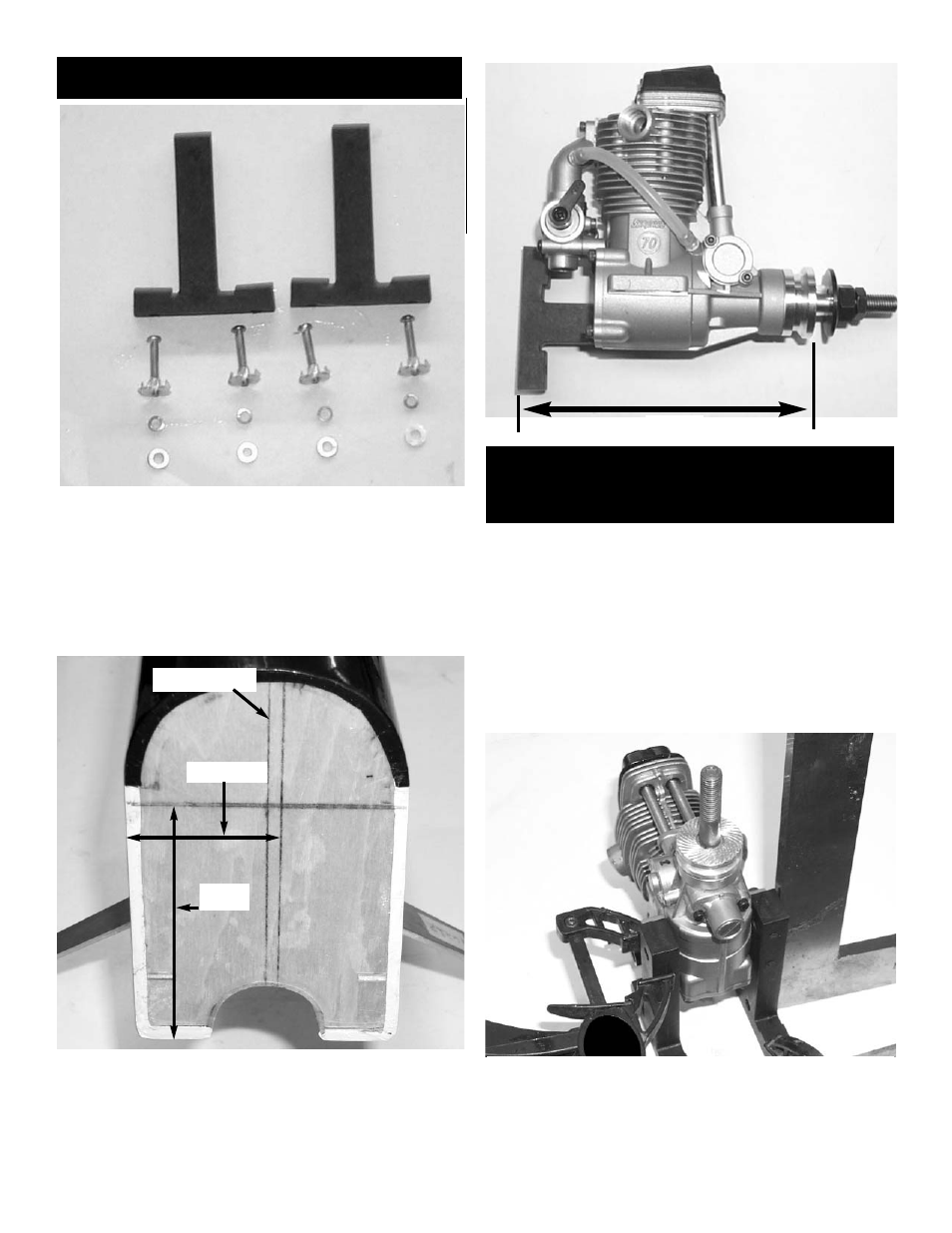

Engine Mounting
1. Locate
2- motor mounts
4- 4mm x25mm bolts
4- flat washers
4- lock washers
4- blind nuts.
4- #6 x 3/4” Screws
2.Mark the firewall as shown above.
3. Place you engine in the mounts and adjust till
the prop washer is 4-3/4” from the firewall.
Clamp the engine in place and and mark the
location of the mounting holes. Drill using a
7/64” bit.
Screw the engine onto the motor mounts
using the #6 x 3/4” screws.
3-9/6”
1-15/16”
Centerline
4-3/4”
Note: The distance that is shown is for using a
Carl Goldberg spinner. If you are going to use a
different spinner, the front of the cowl needs to
be 4-5/8” from the firewall.
4. Keeping the engine perpendicular to the table
top, clamp the other motor mount to the engine.
Mark and drill the second motor mount then
screw the mount to the engine.
