7

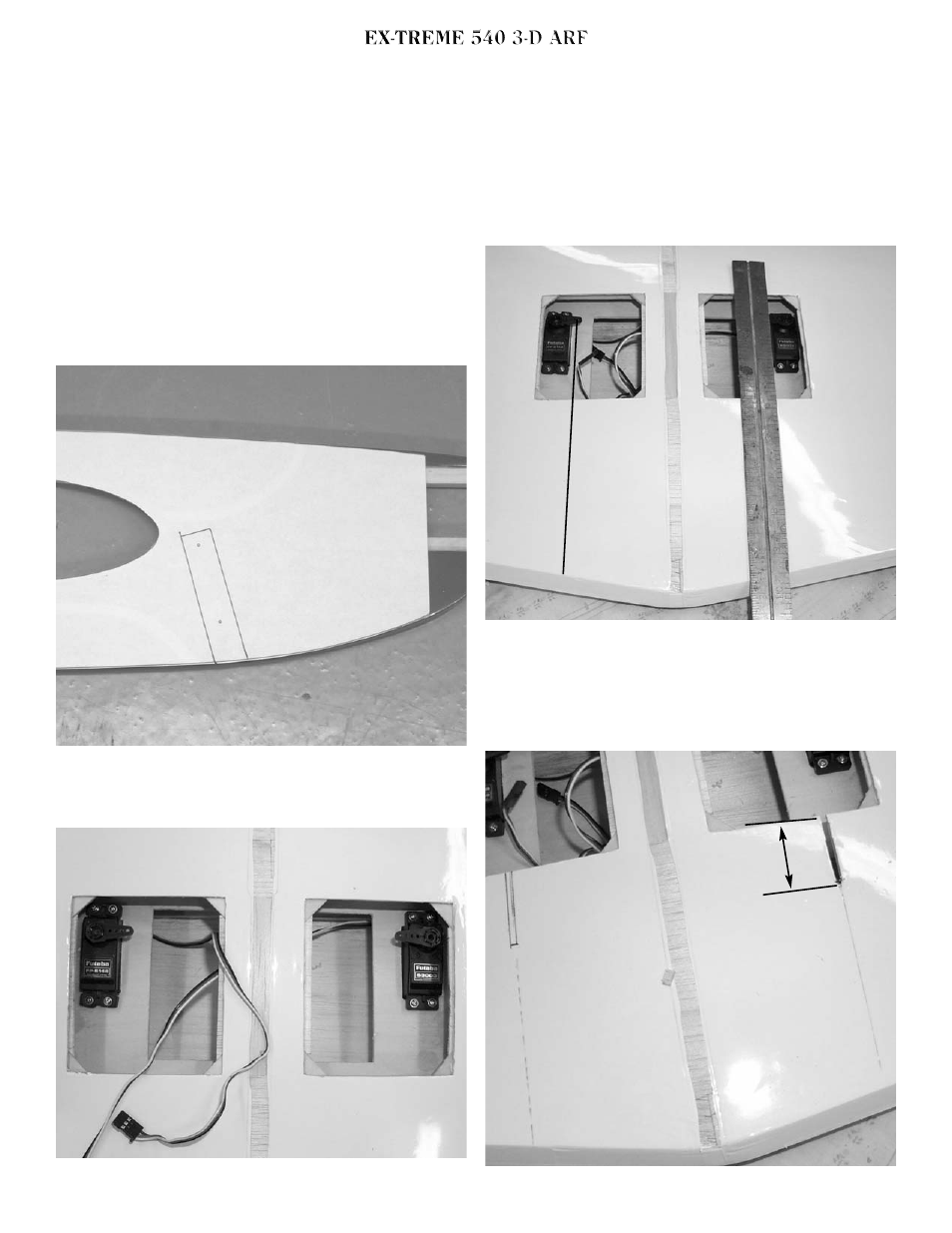

It is easier to do some of the work on
the wing and fuselage before you
glue them together. Locate the tem-
plate at the rear of the book for
locating the landing gear and cut it
out with scissors. Place it over the
fuselage and drill 1/8” holes at the
location of the mounting holes.
Check the aluminum gear and make
sure it matches the holes in the
paper, if not transfer those holes
and use the template to get the right
angle.
Next mount the aileron servos in the
wing.
Mount with the output arm forward.
The front screws will be a little
hard to get to but can be put in at a
slight angle. Trim the extra legs off
a 4 hole output arm and install on
the servo with the output toward the
inside next to the fuselage.
use a straight edge to mark a line
from the center of the servo out put
to the trailing edge, square to the
servo.
1-3/8”
