13

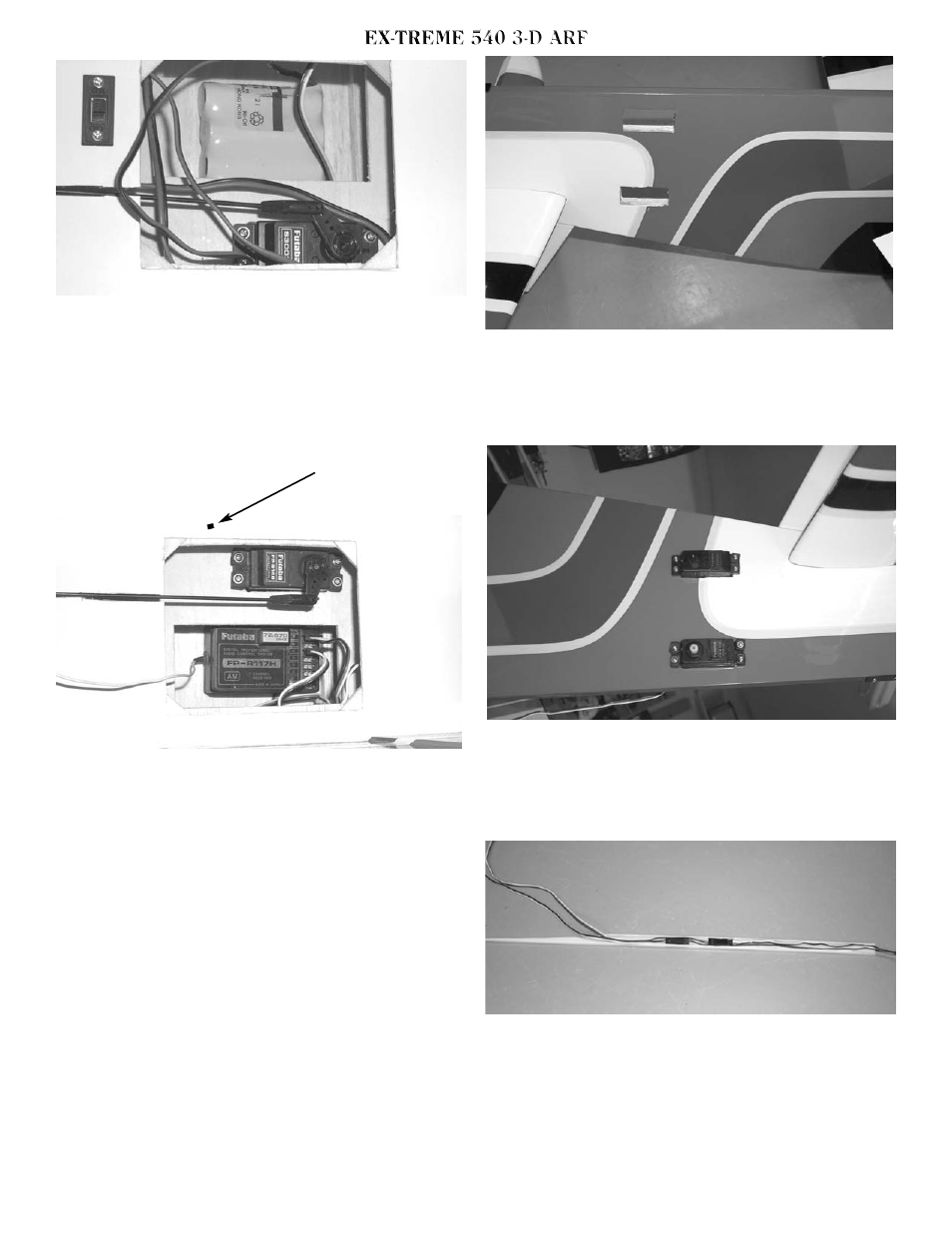

The battery will mount on the left
side. Wrap with foam rubber(not
shown for clarity) and insert into
opening.
The receiver will mount on the right
side in the opening next to the servo.
Wrap with foam rubber(not shown).
Route the antenna under the pushrod
and exit from a hole close to the side
of the fuselage. It can then be pulled
down the side of the fuselage and
attached to the top of the rudder.
exit hole for antenna
Using a sharp knife or razor blade,
remove the covering from the servo
cutout just ahead of the stab on both
sides of the fuselage.
Install the rudder and elevator
servo in the cutouts using the hard-
ware supplied with the radio. They
will be on the left side of the plane.
Using the template provided in the
back of the booklet, cut the eleva-
tor, rudder servo lead cover to the
shape shown on one end. Transfer
the location of the exit hole on the
template to the cover. Do not cut the
length of the tube, leave full length.
