14
Blower Orientation Conversion
Model Reversible Whispair ™
Rotation Design
Universal RAI yes no
URAI-J Whispair ™ no yes
URAI-G yes no

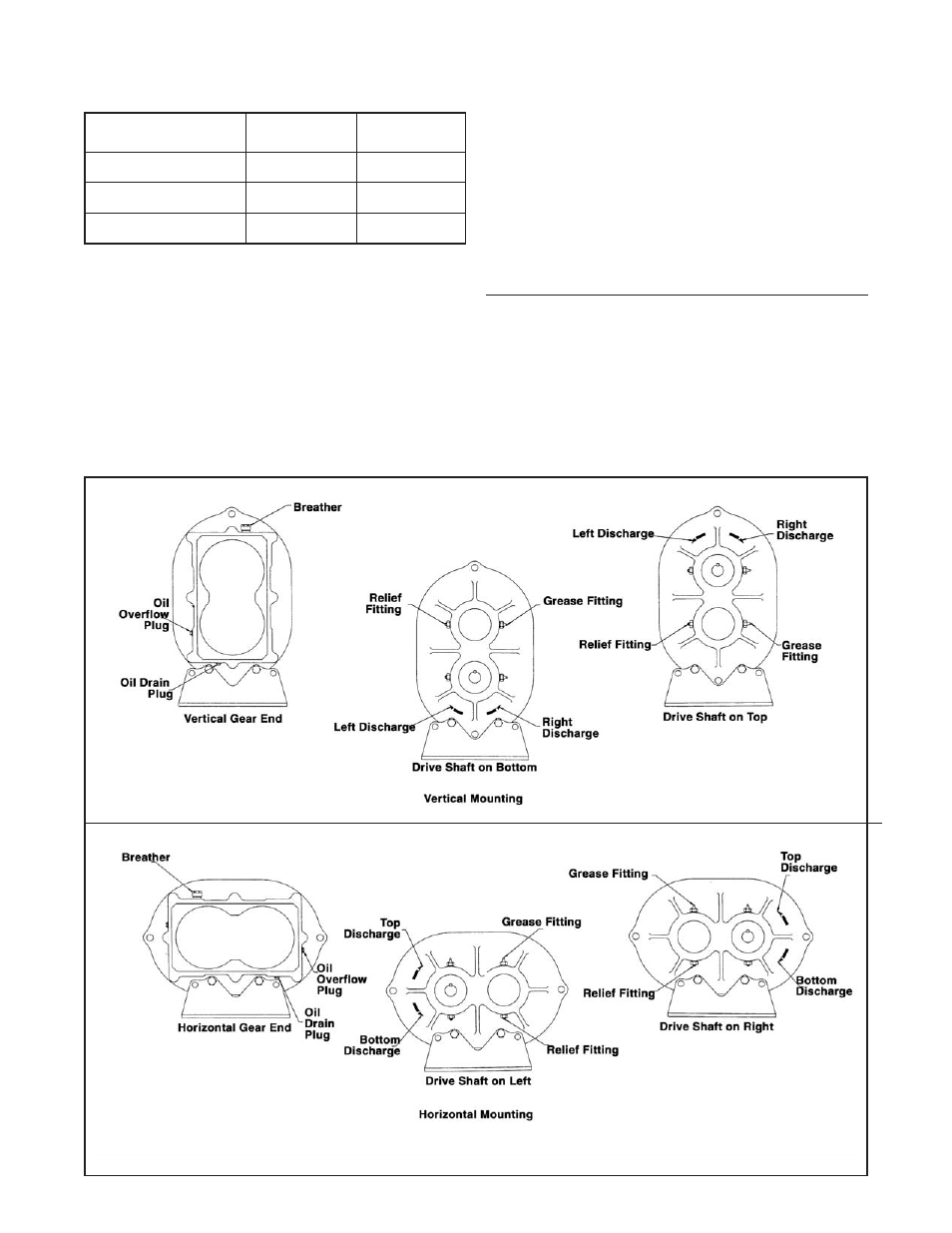

Blower Orientation and Lubrication Points: Grease Lubricated Drive End
Universal RAI series & URAI-G gas blowers
Special Note: WHISPAIR ™ models are designed to operate
with only one shaft rotation direction to take full advantage of
the Whispair feature. Therefore, a WHISPAIR
™ blower may be
operated in the following combinations.
• CCW Rotation: Bottom Shaft; Right side discharge or a
Left Shaft; Bottom discharge
• CCW Rotation: Top Shaft; Left side discharge or a Right
Shaft; Top discharge
• CW Rotation: Bottom Shaft; Left side discharge or a
Right Shaft Bottom discharge
• CW Rotation: Top Shaft; Right side discharge or a Left
Shaft Top discharge
Figure 4
or
