Char-Broil AMERICAN GOURMET 10301580 User Manual
Page 9
Page 9
3
4

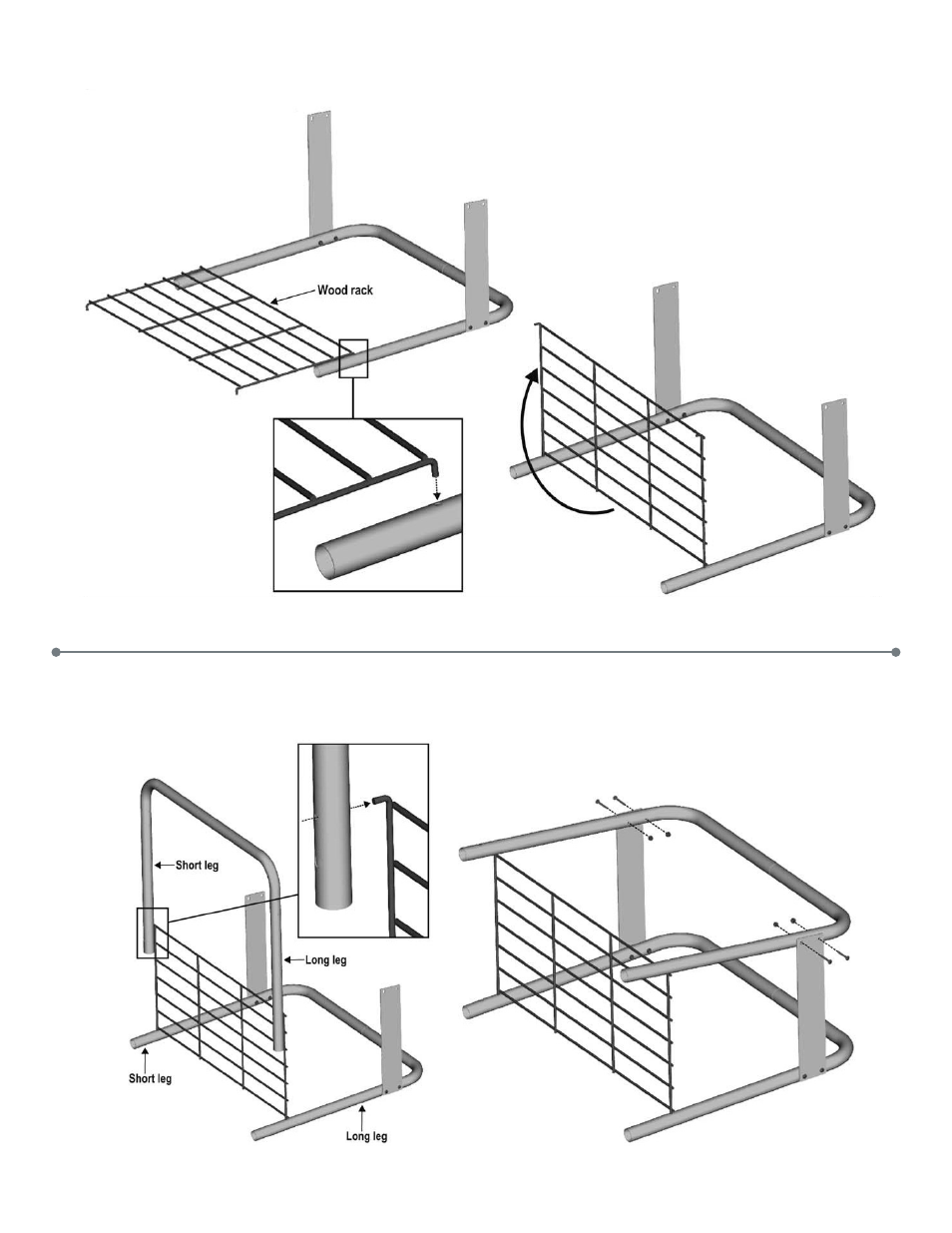

With aid of a helper, place leg holes of remaining leg assembly over wood rack and rotate leg assembly unitl it meets the leg
braces. Make sure both short legs are at one end of the rack and both long legs at the other end. Attach leg braces using 4
each 1/4x20x1 3/4" screws and 4 each 1/4-20 flange nuts. Do not fully tighten screws until Step 6 is complete.
Lay the leg assembly on its side with leg braces pointing upward. insert the wood rack hooks into leg holes and swing rack
upward, parallel to leg braces.
